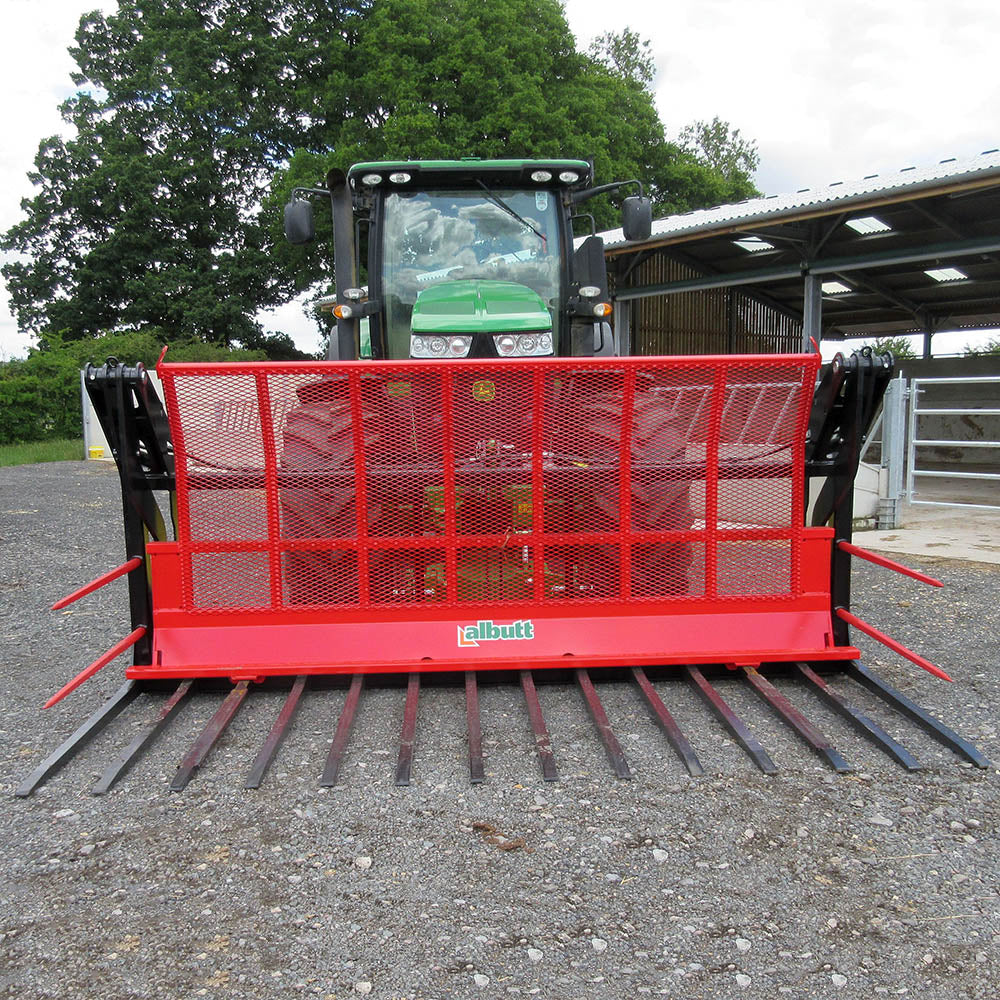

Buck Rakes – Hardox Tines

Please Call 0161 480 0869 for Advice & Quotation

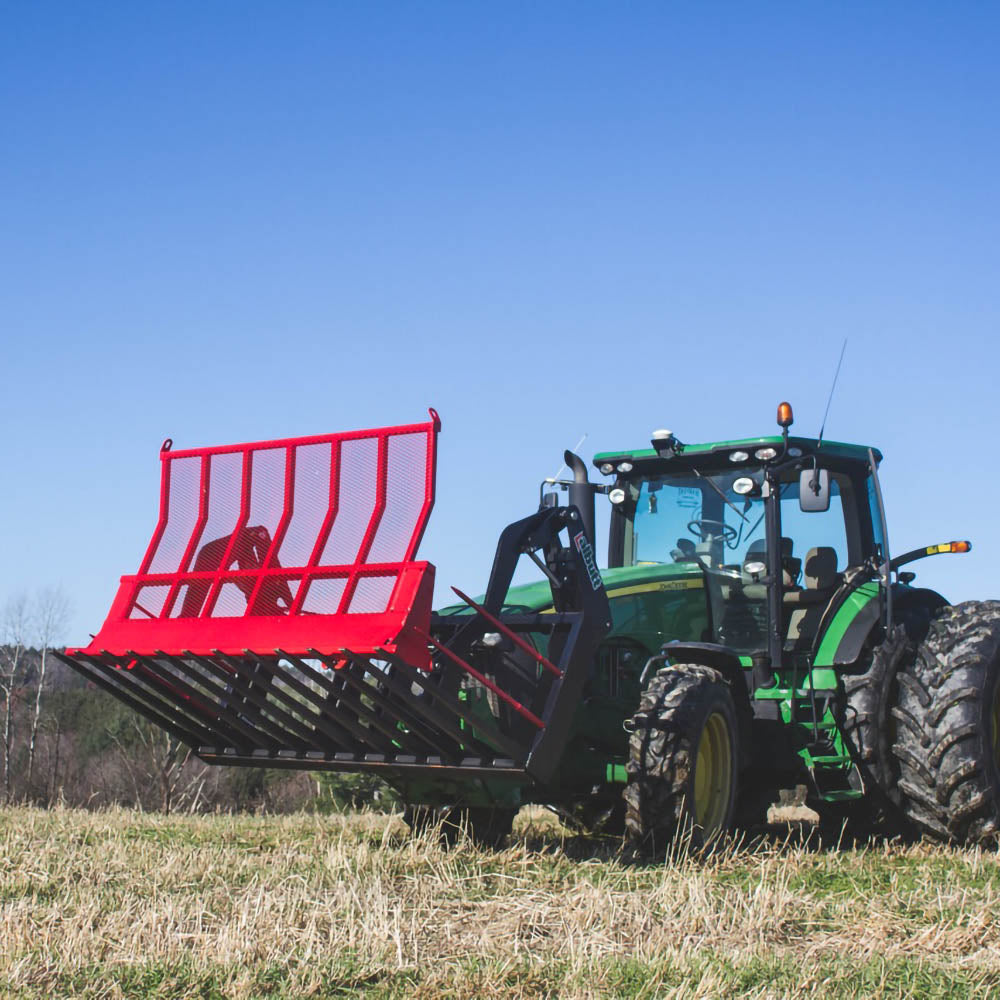

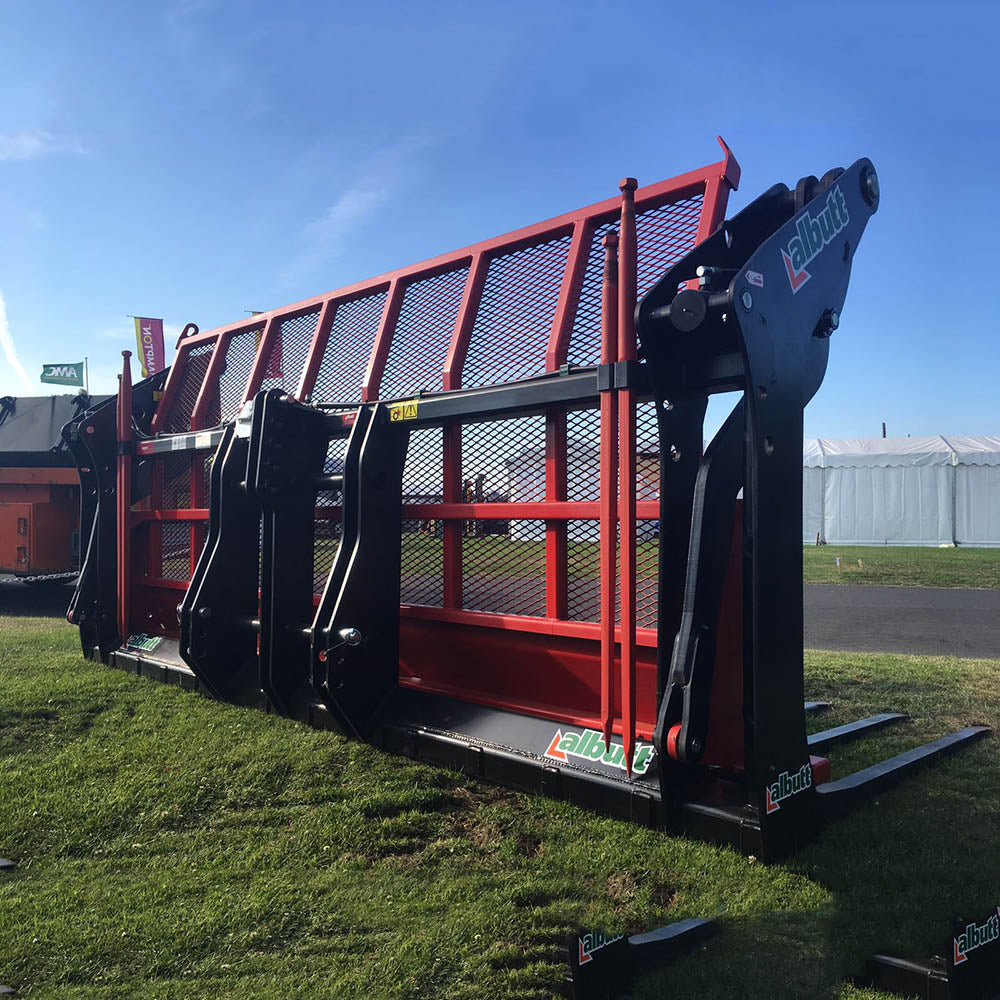

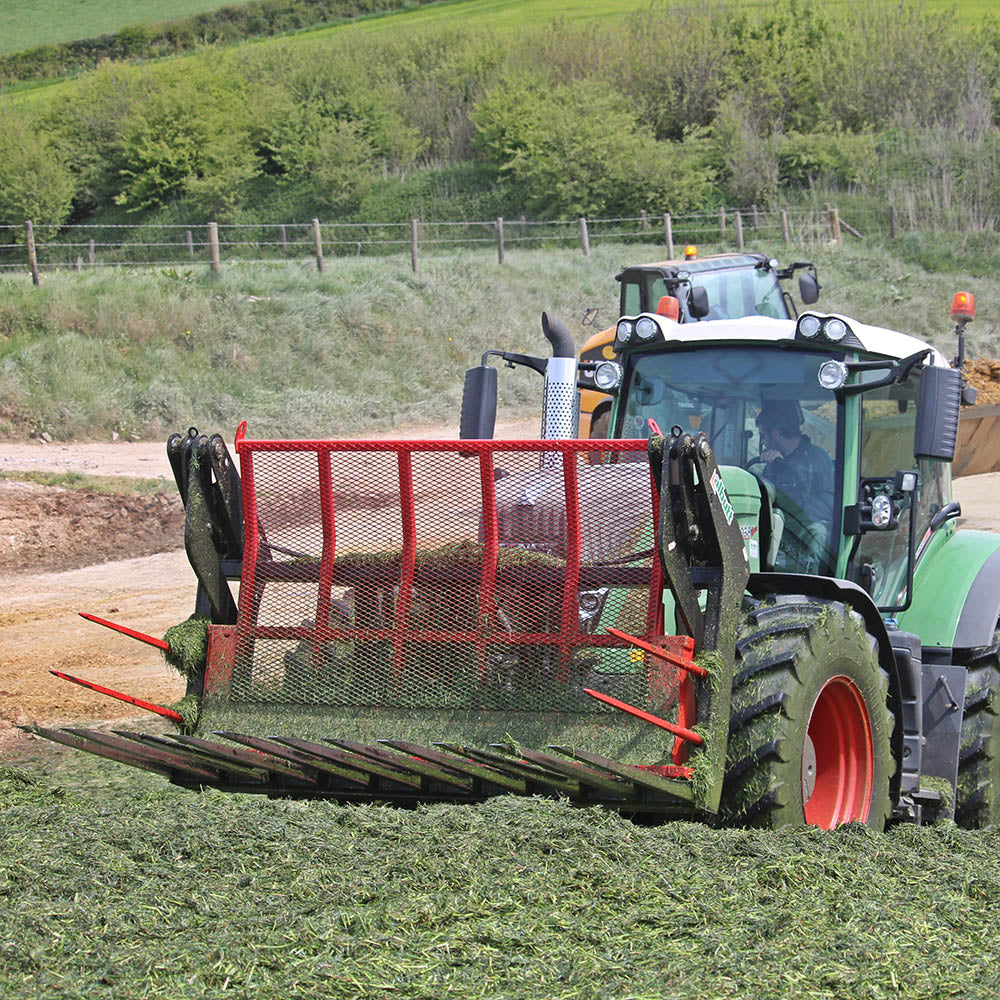

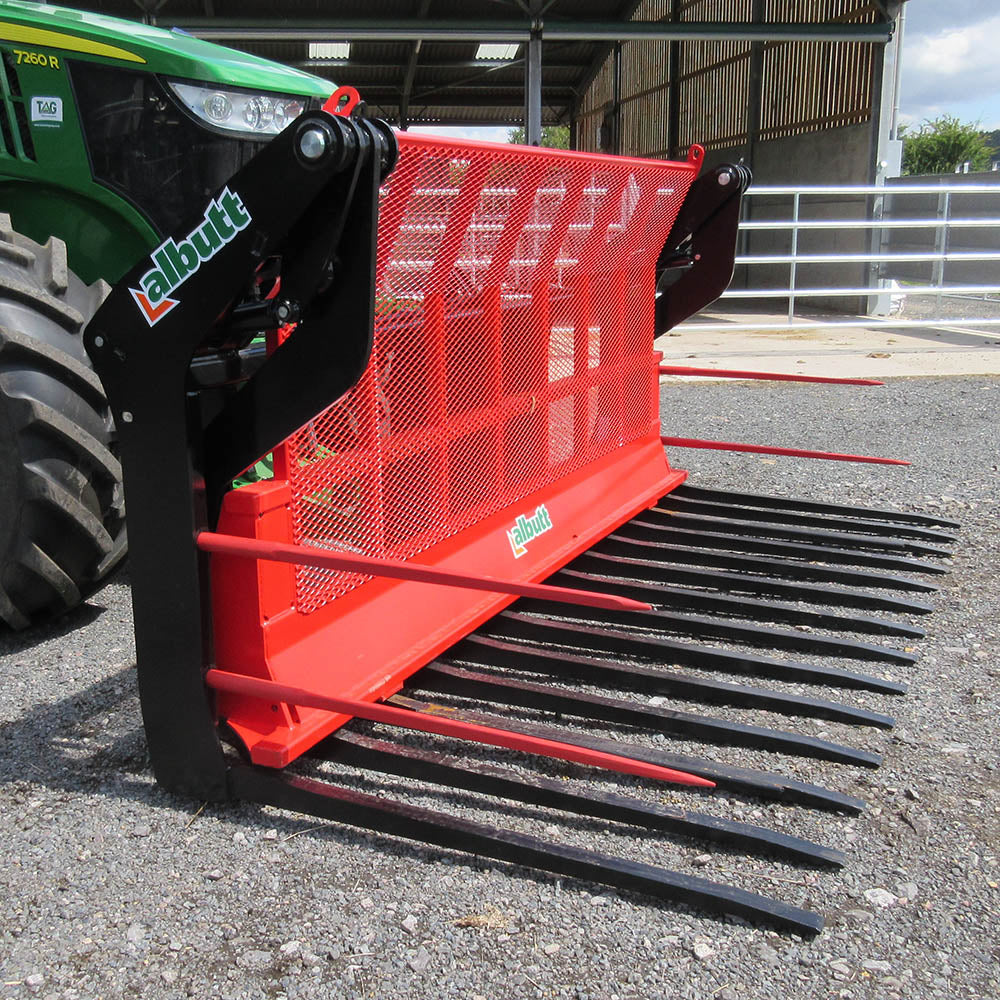

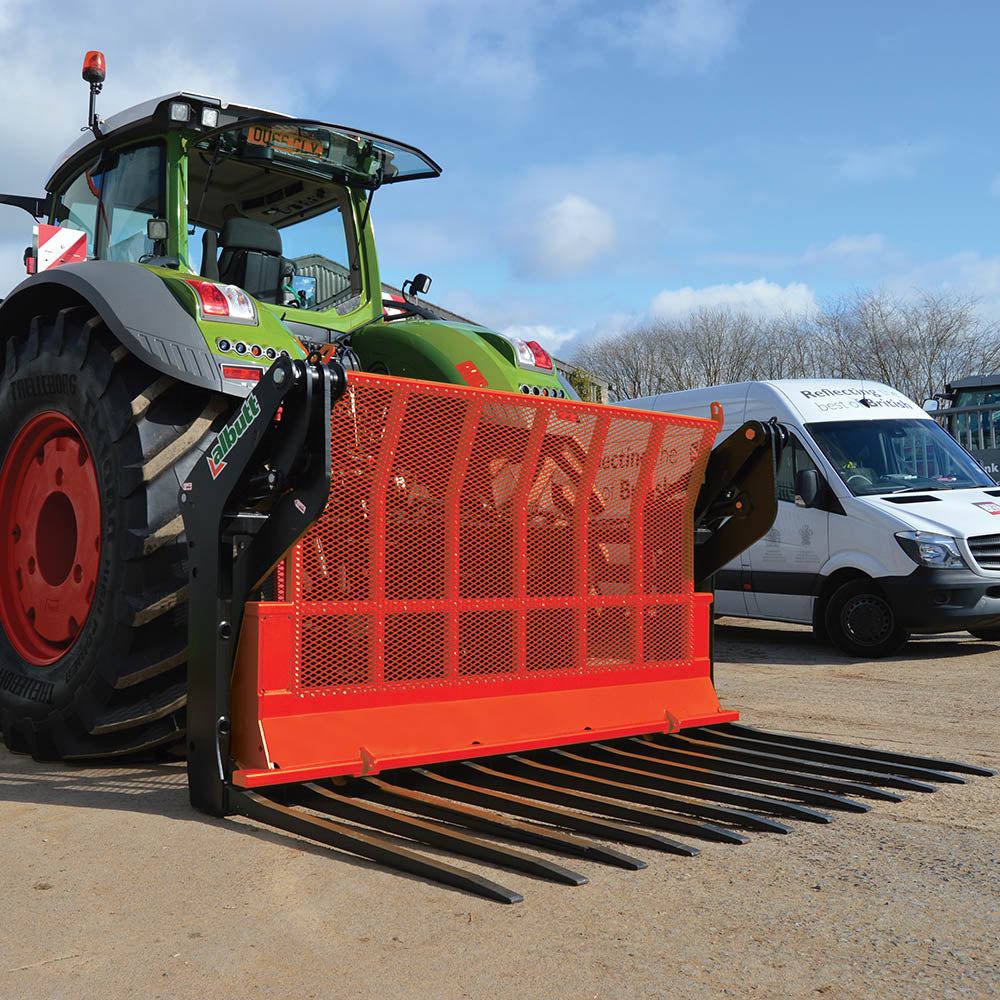

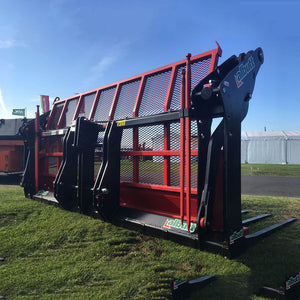

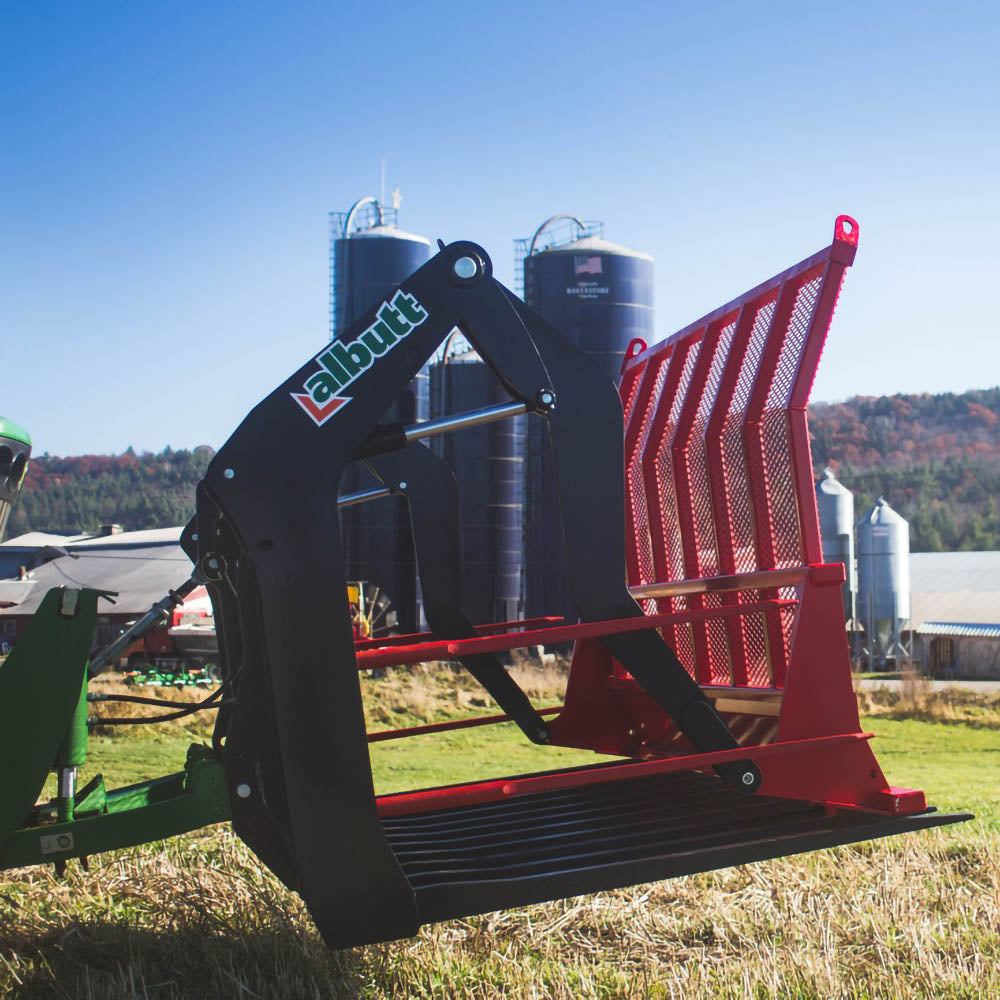

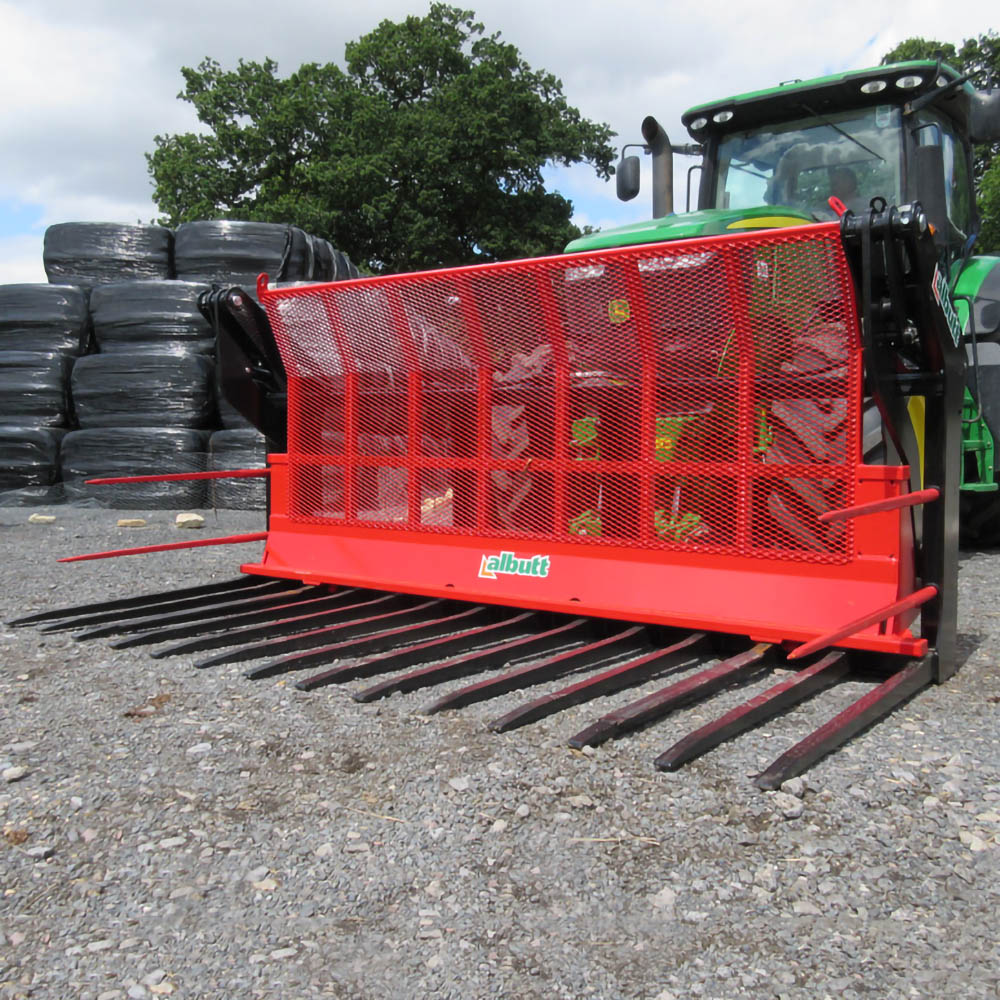

  • The Albutt range of Heavy Duty Buck Rakes are designed for use with high horsepower tractors or loading shovels. Tractor horsepower requirement is 160hp rear linkage and 180hp front linkage. Front linkage rating requirement is 5 tonnes.

    An unrivalled specification includes a 200 x 100mm thick bottom box tine holder, high grade mesh gate and high capacity hydraulic cylinders.

    For working the clamp at night, ask about our high visibility Working Light kit.

  • Features

    1650mm genuine Hardox base tines
    Double side tines
    200 x 100mm tine holder
    High flow divider valve to prevent gate twists on uneven loads
    75mm ram bore size
    35mm diameter ram pivot pins
    5 hole top link positions
    Angled tine holder top to prevent silage build up
    Leant forward spill frame on gate
    High grade mesh gate gives strength but great visibility
    Double profile gate mounting prevents arms bending
    Gate moves in runners on tine; prevents underside wear and scrape
    60mm diameter main pivot pin
  • Data Sheet 2
