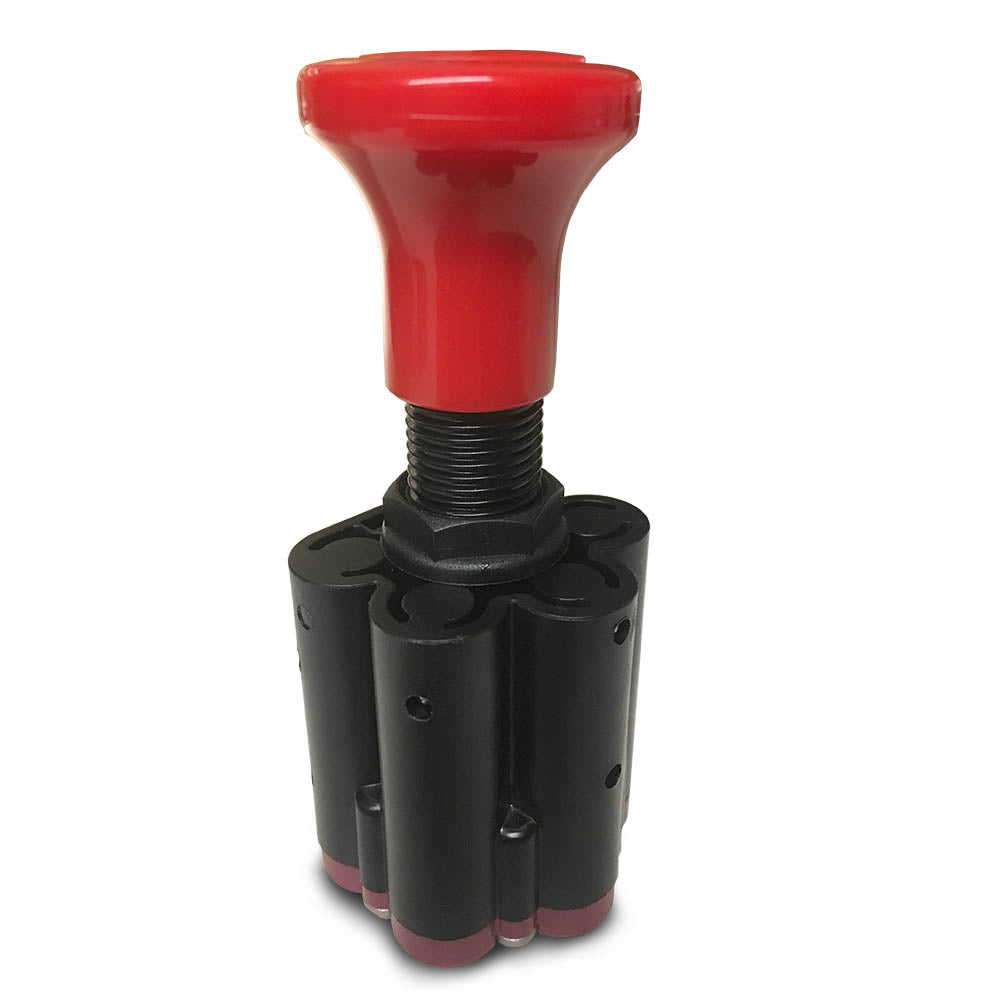

PTO Switch - Panel/Dash Mounted Air Control Valve (Manual Air Release)

PTO-SW-1

2 In Stock

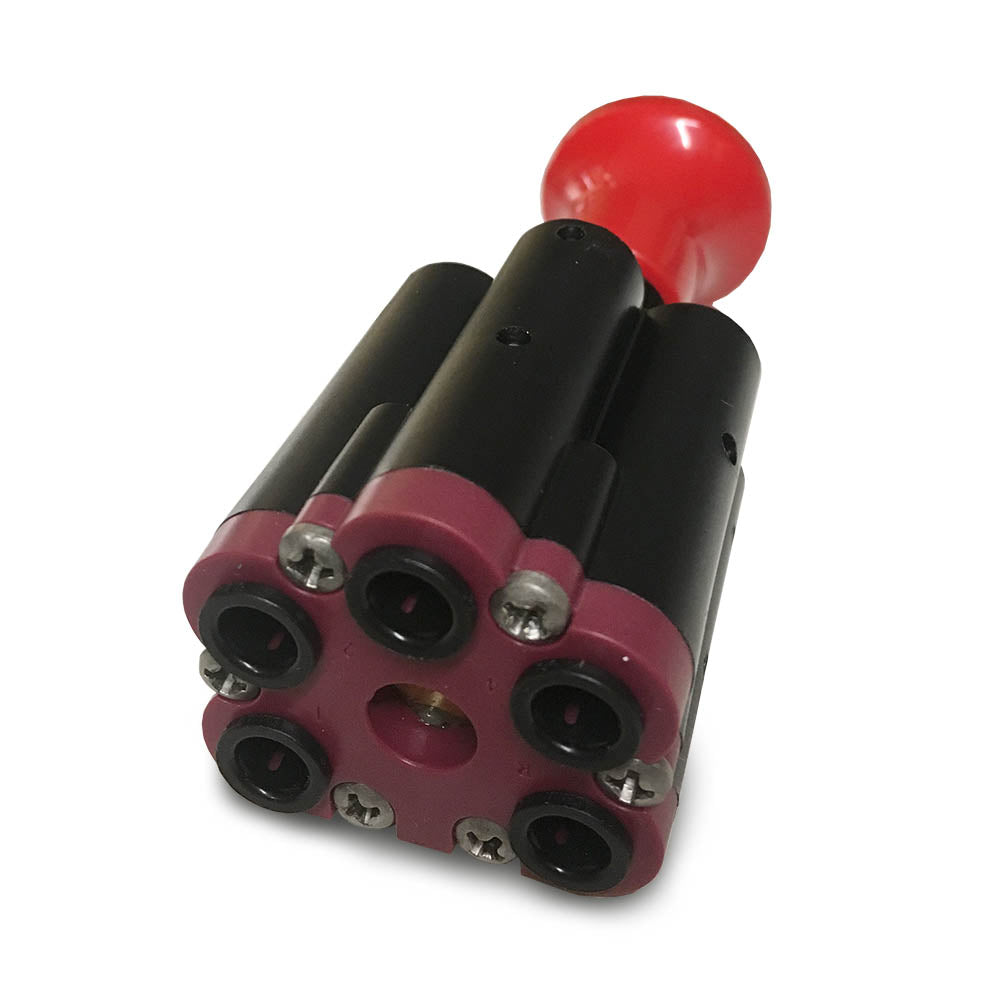

Panel/dash mounted manually operated 4/2 directional control switch for the operation of single and double acting cylinders. These valves have 6mm push-in fitting ports and come as standard with a pneumatic reset and control knob indicator.
This manual air release valve requires the reset signal to be removed/disengaged from the reset port before the valve may be operated and are ideal for interlocking with hand-brake air systems for additional safety. The valve may also be used as a 4/2 valve when no reset signal is required.
Key Features
  • Compact
  • Non-corrosive
  • Indicator Band
  • Push-in Fittings
  • Ergonomic Actuator
  • Safety Interlock Port
  • 6mm Tubing Version

Typical Applications

  • PTO Actuation (Power Take Off)
  • Bottom Loading Tanker Controls
  • Construction Equipment
  • Lift Gates
  • Specialty Truck Equipment
  • Cement Mixers
  • Fire Trucks
  • Emergency Shut Down Systems
  • Pneumatic Control Panels
  • Air Compressor Controls
  • Test Panels / Benches
  • Agricultural Equipment
