BR1 Link 70mm Wide with 20mm Top Bush
Key Features
Link 25 mm to 30mm crane pin
BR2 bottom bushing for 35mm link pin
CPR/15 adaptor plate
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
CPR9-04ST Adaptor Plate
GR 16S flange securing Pin
Baltrotors Gr30 X type hose guard
Locking Screw
Link Lower(ex MTR104.010-02)
GR 46 hose guard with 4 x bolt holes
Gr55 hose guard "X" model
Baltrotors HR12SM + HR1SM6 rotator seal kit
Restrictor 0.7mm 3/8 - 3/8 Male / Male
KV Diverter Valve 24VDC Coil 31mm Dia hole x 42mm Long (Din Plug Connection)
1/4" Banjo Body To 12mm Tube x 205mm Long

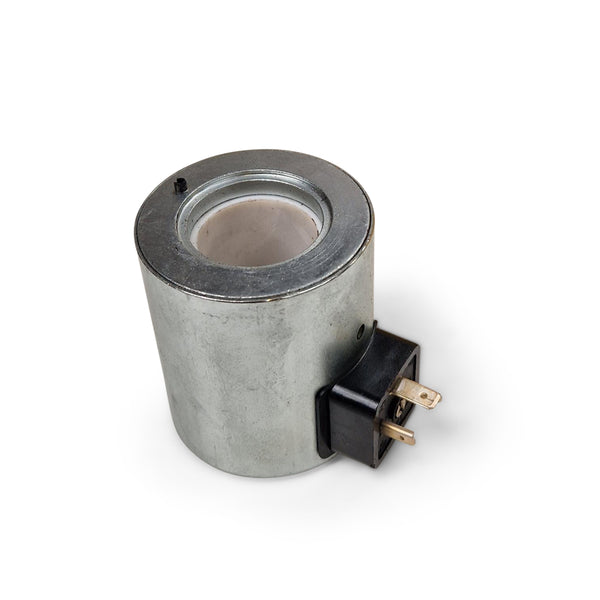

KV Diverter Valve 12V Coil
1/4" BSP Male x 1/4" BSP Female Swivel Adaptor
ADMISSION CONNECTOR 3/4" PIPE 1"1/2 ELBOW 45º
ADMISSION CONNECTOR 3/4'''HOSE 1''''1/4 CURVE 45
1/2" BSP Male x 1/4" BSP Female Swivel Adaptor
3/8 BANJO BOLT (35mm long)
1/2 BANJO BOLT
1/2" BSP Female Swivel x 5/8" BSP Female Swivel Adaptor
Standard DIN Hirschmann Connector Plug - Black
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
