Scanreco

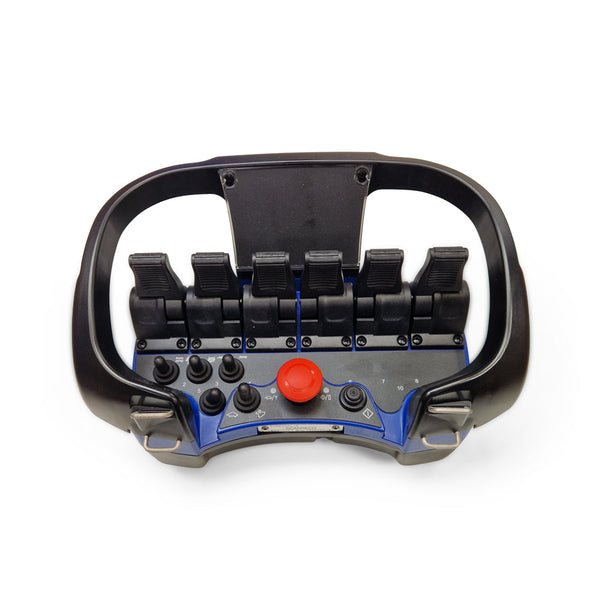

Scanreco transmitter G2B/G3 6 lever type 48669
Key Features

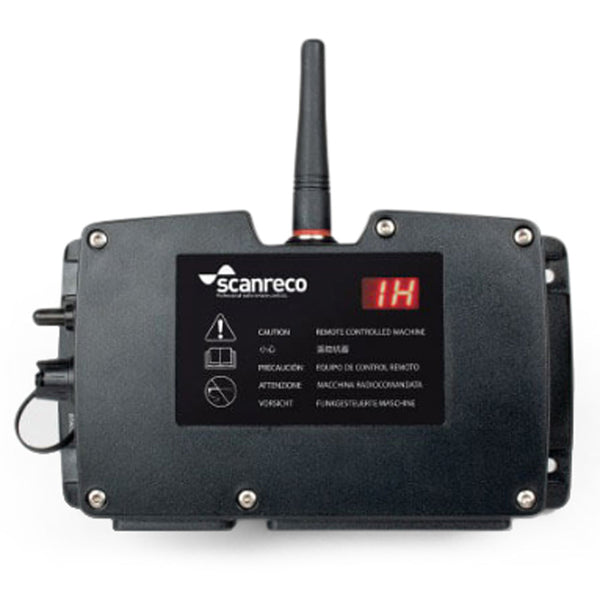

Scanreco Receiver Unit G2B PWM A+B Type 3010 (Without Wiring) Includes Antenna
Scanreco Electronic Card (Motherboard) for RC400 G2B/G3 Maxi Transmitters With Linear Levers (4142)

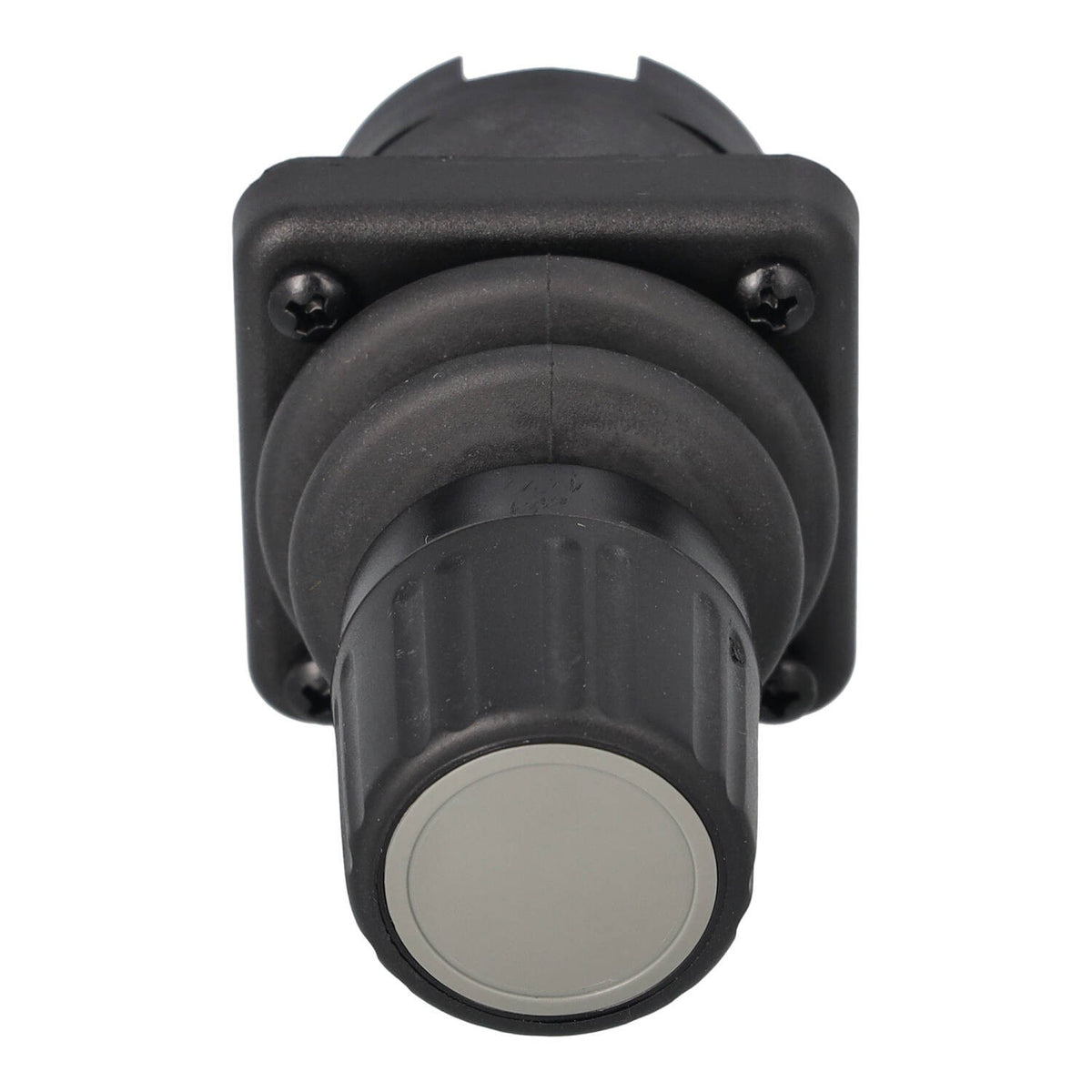

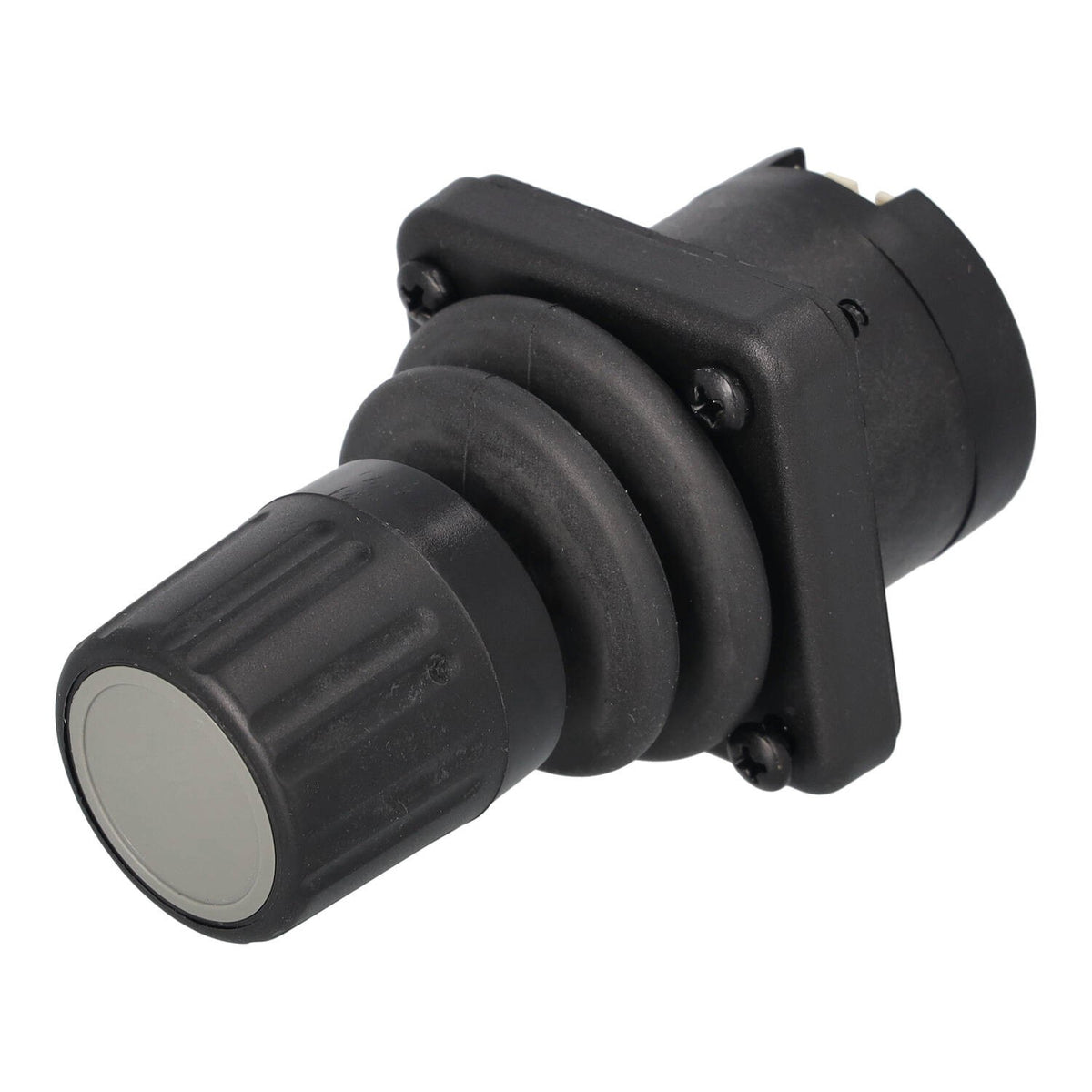

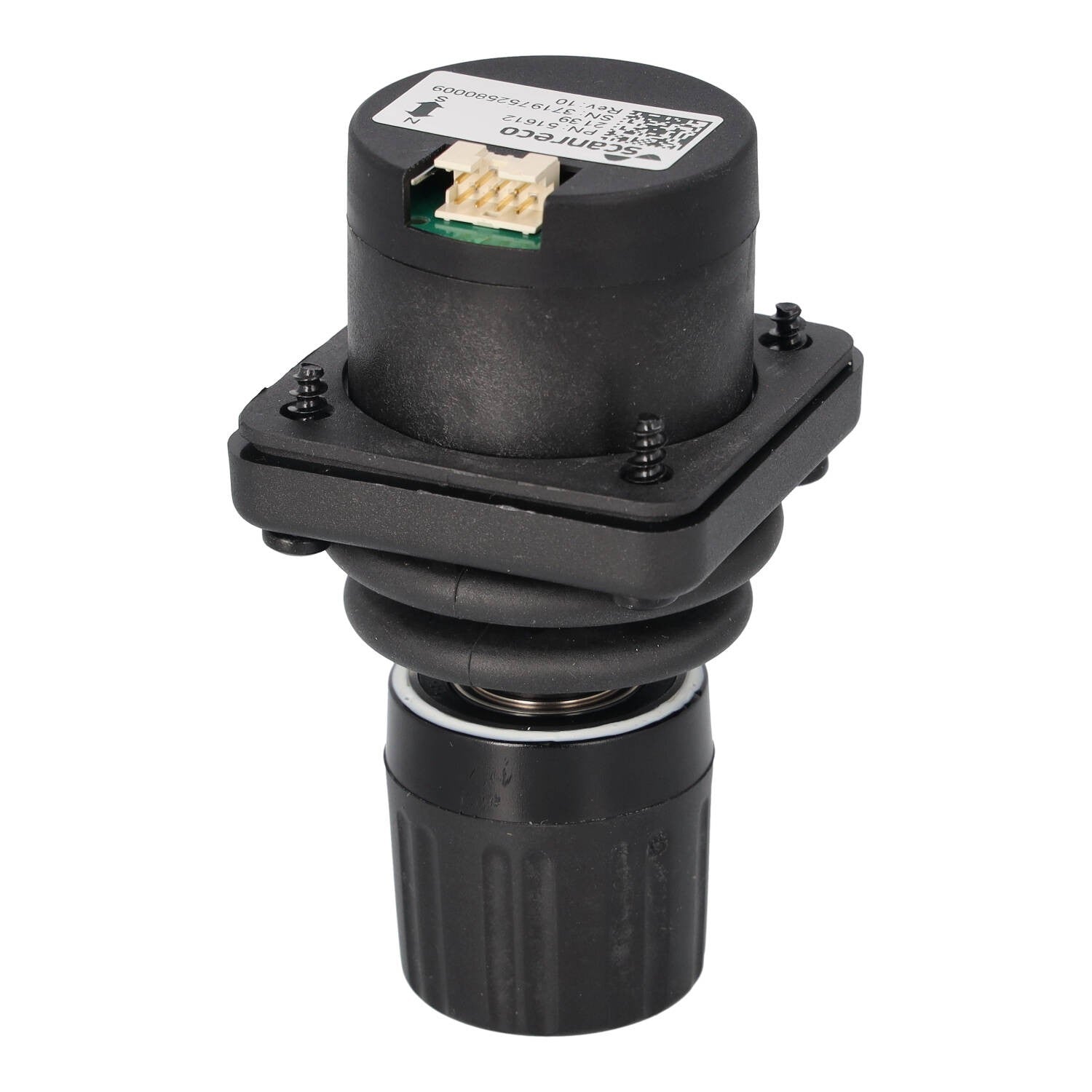

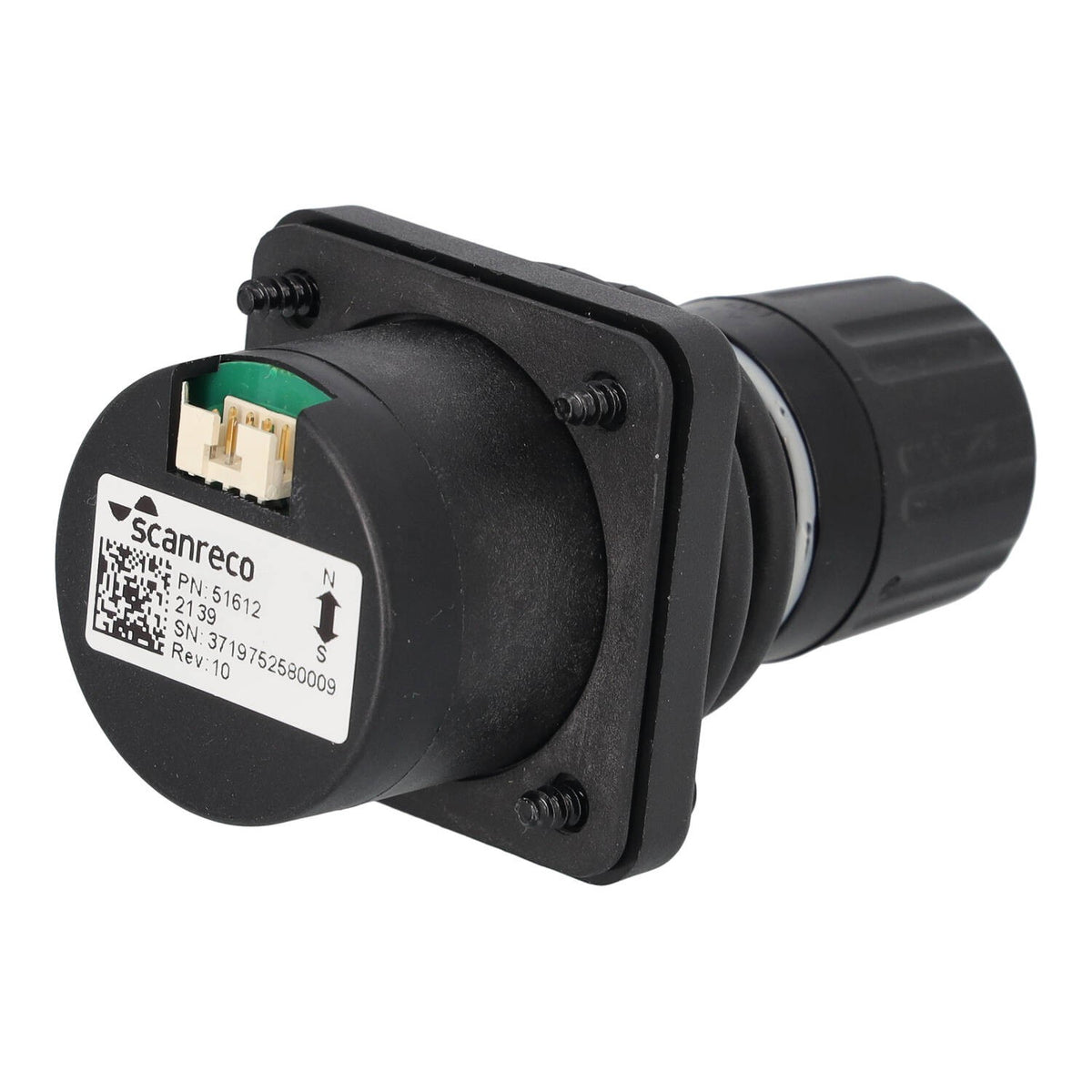

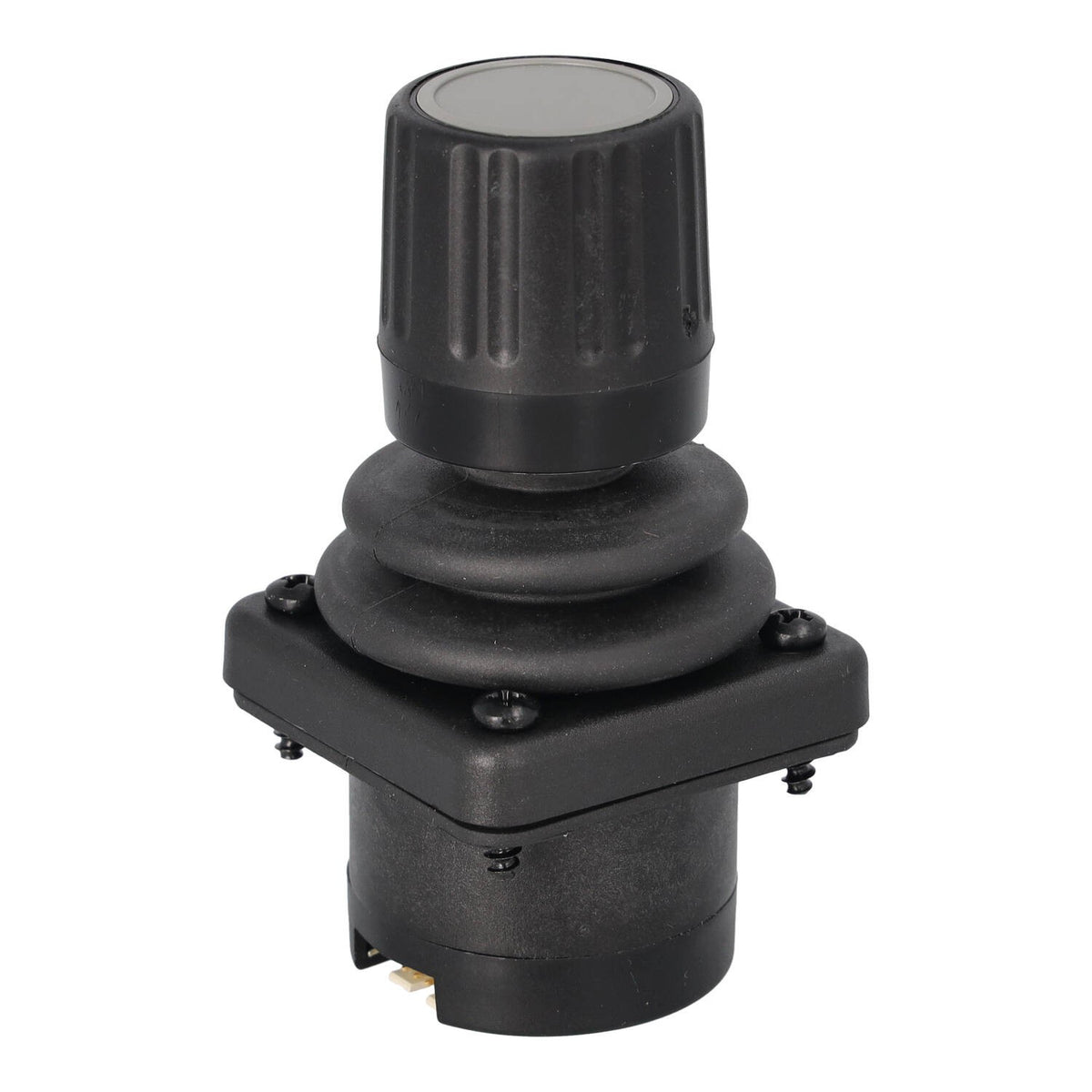

Scanreco cross joystick 3 axis for mini code 51612
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.

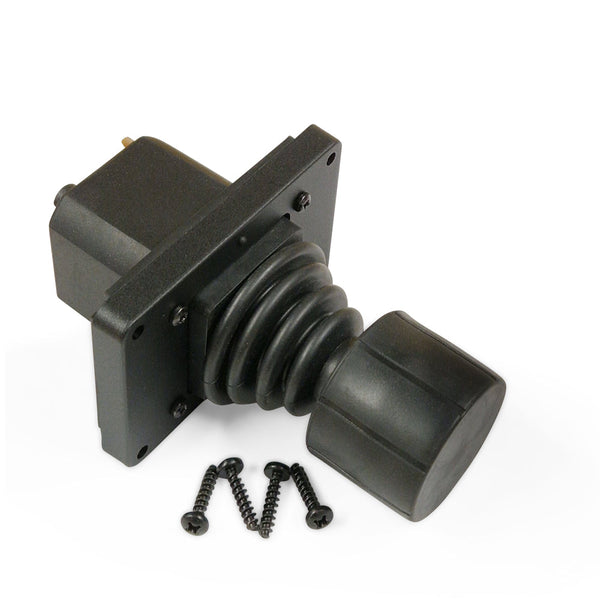

Scanreco cross Joystick 3 axis maxi code 45852

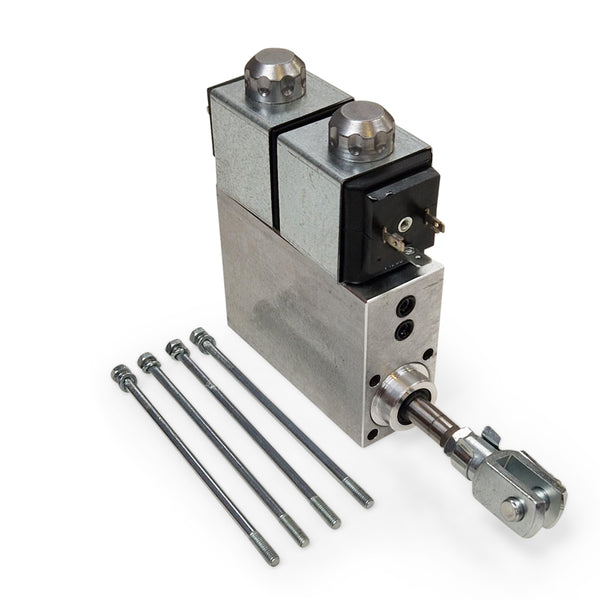

Scanreco Proportional Single Module PWM For MOD10 Servo Unit 24V Includes Mounting Bolts.
Scanreco Proportional Single Module PWM For MOD10 Servo Unit 12V Includes Mounting Bolts.

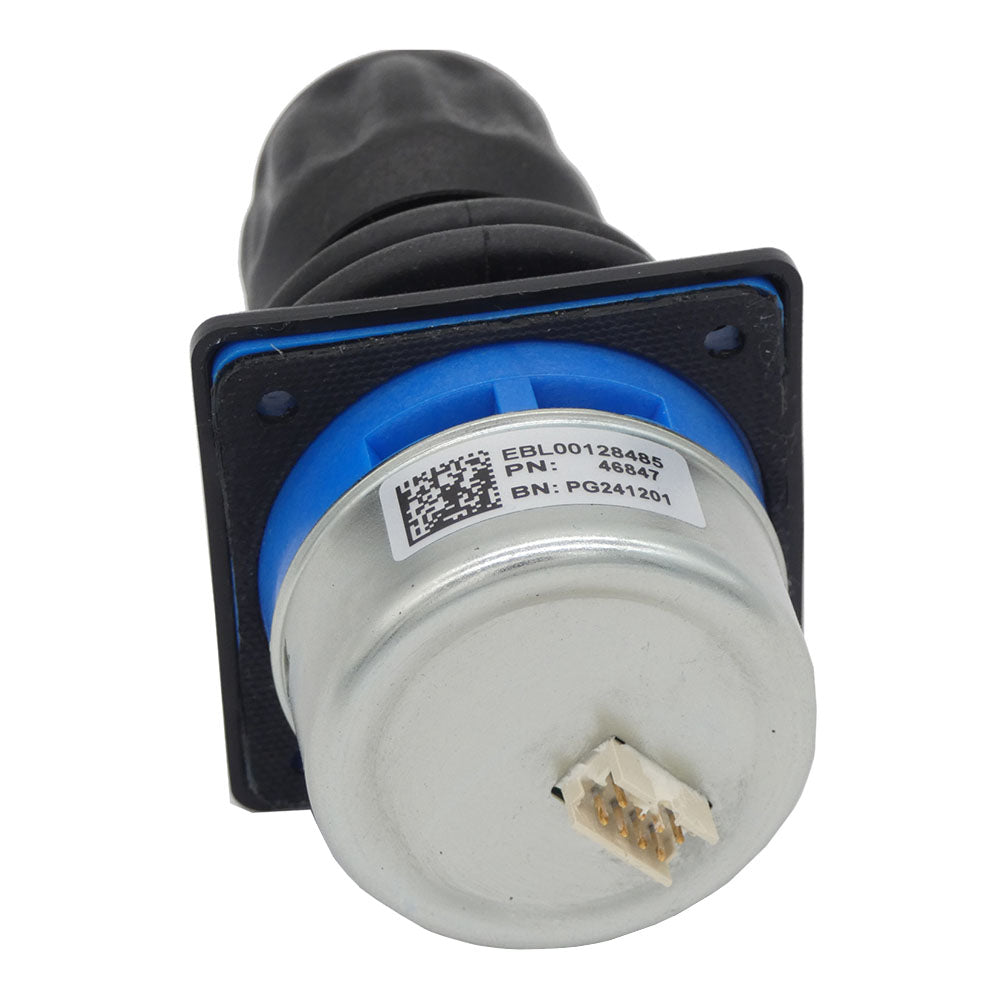

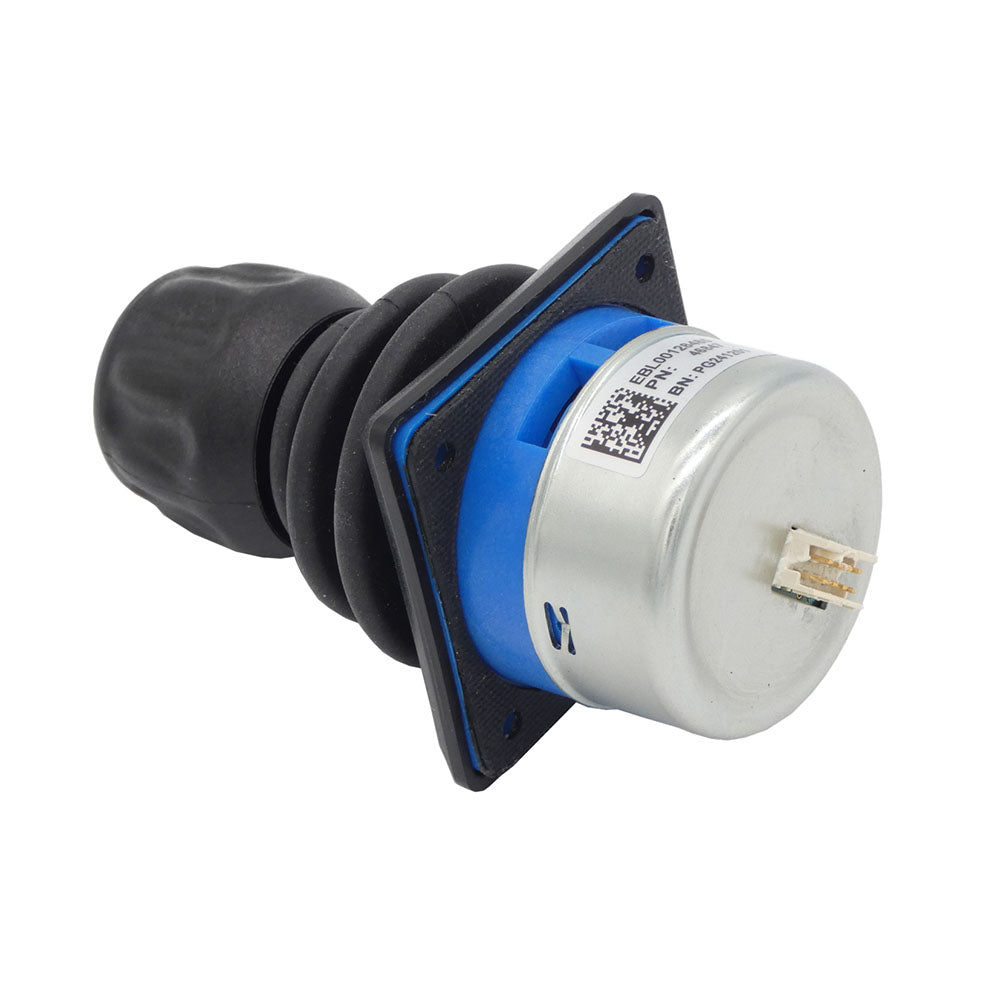

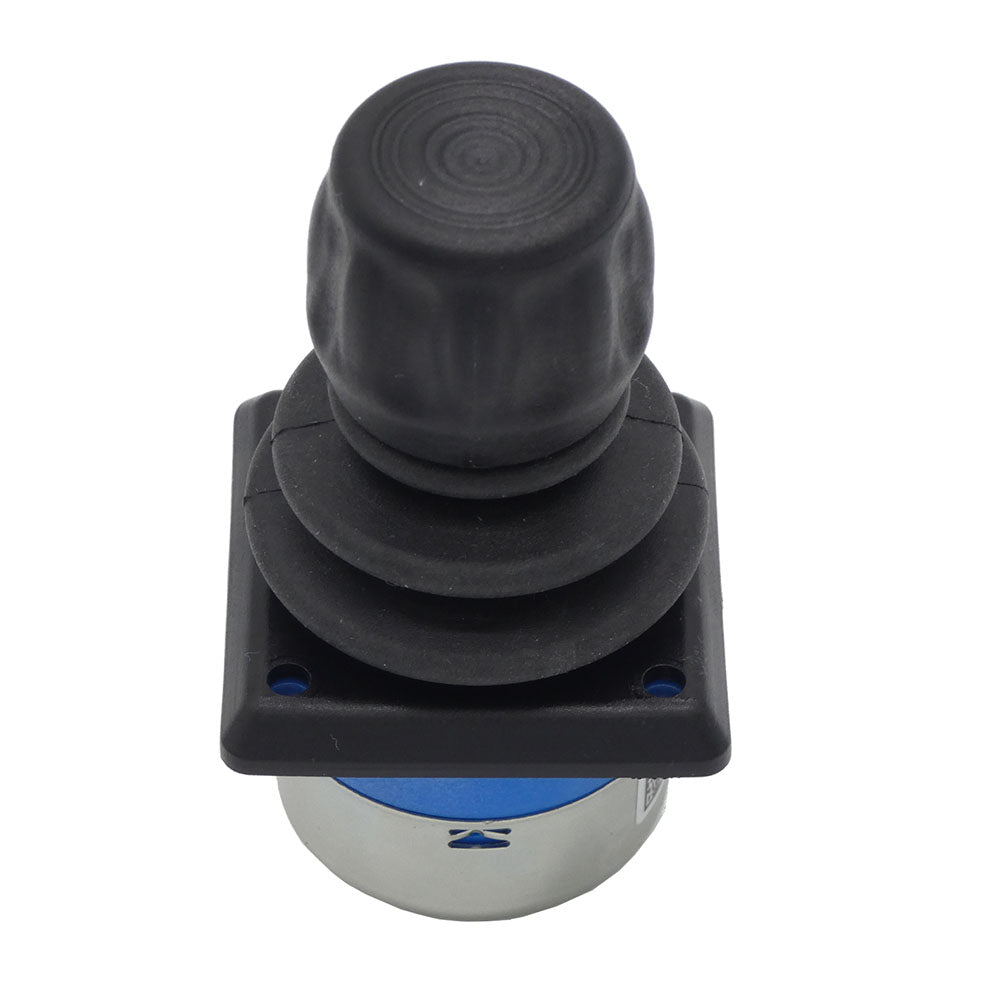

Scanreco cross joystick Hall for RC400 2 axis mini-joystick code 46847
POA

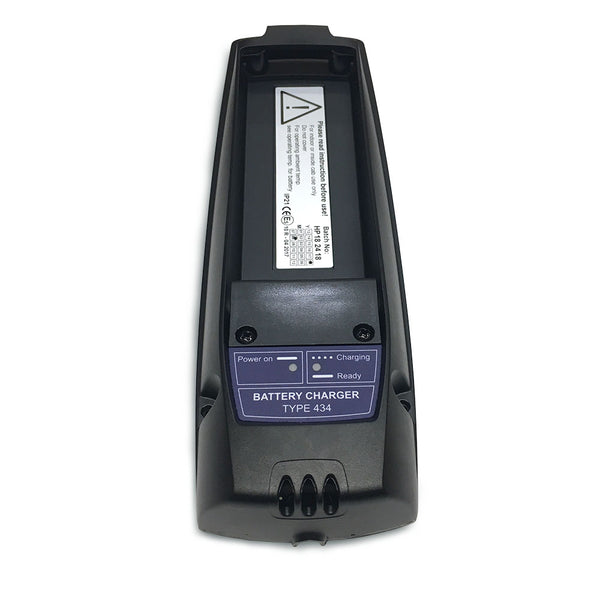

Scanreco Quick Battery Charger with 110-230vAC Mains Adaptor Type 434

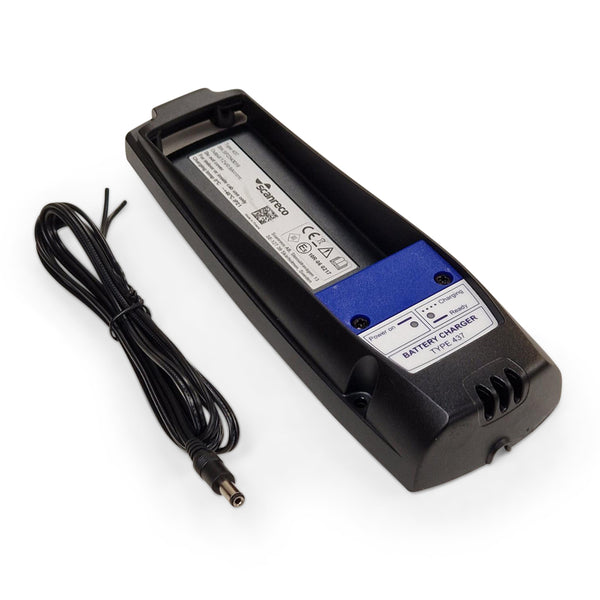

Scanreco Battery Charger 10-30VDC Type 437 For Battery 593 only.
Scanreco Battery Charger with 10-30vDC Car Adaptor

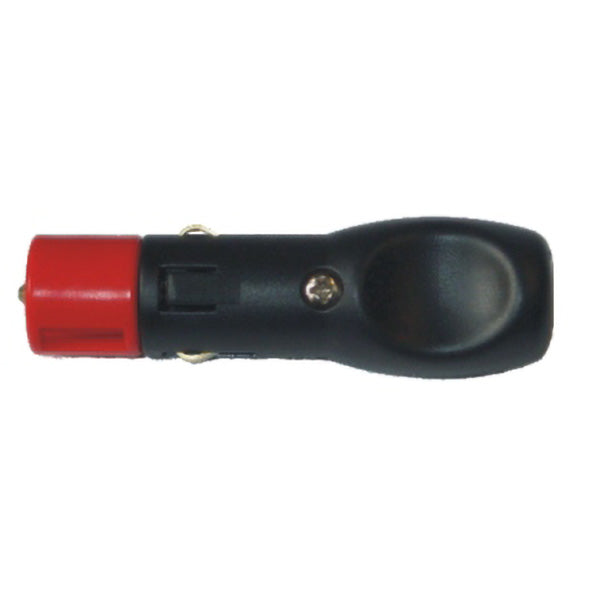

Scanreco Cigarette Plug Adaptor 12V/24V (Hydra Part)

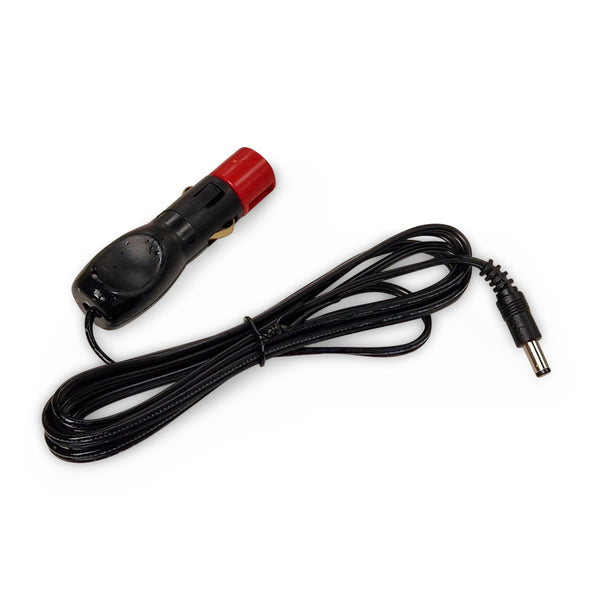

Scanreco Cigarette Plug Adaptor 12V/24V

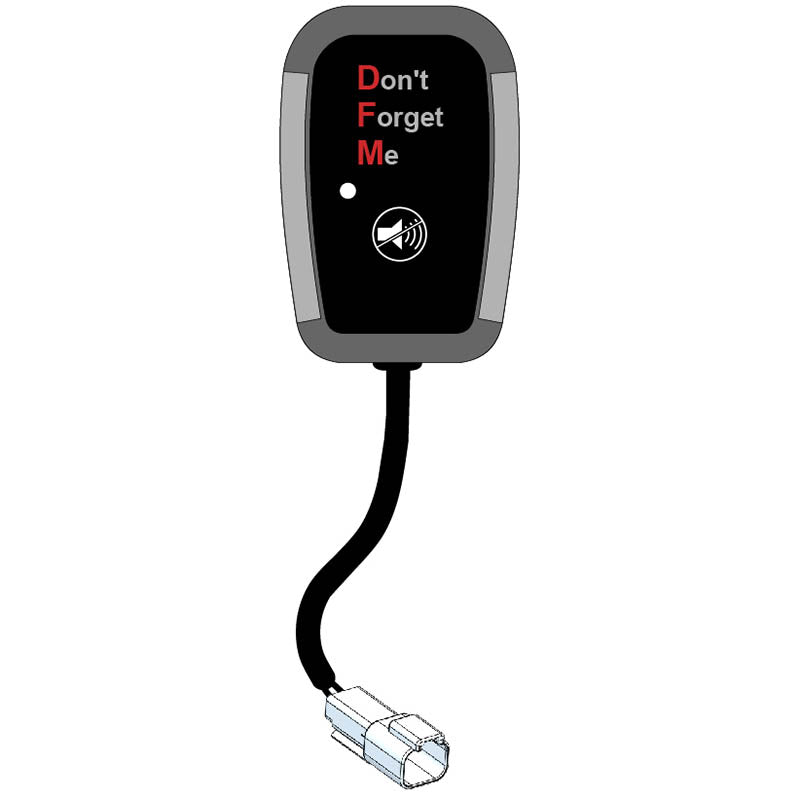

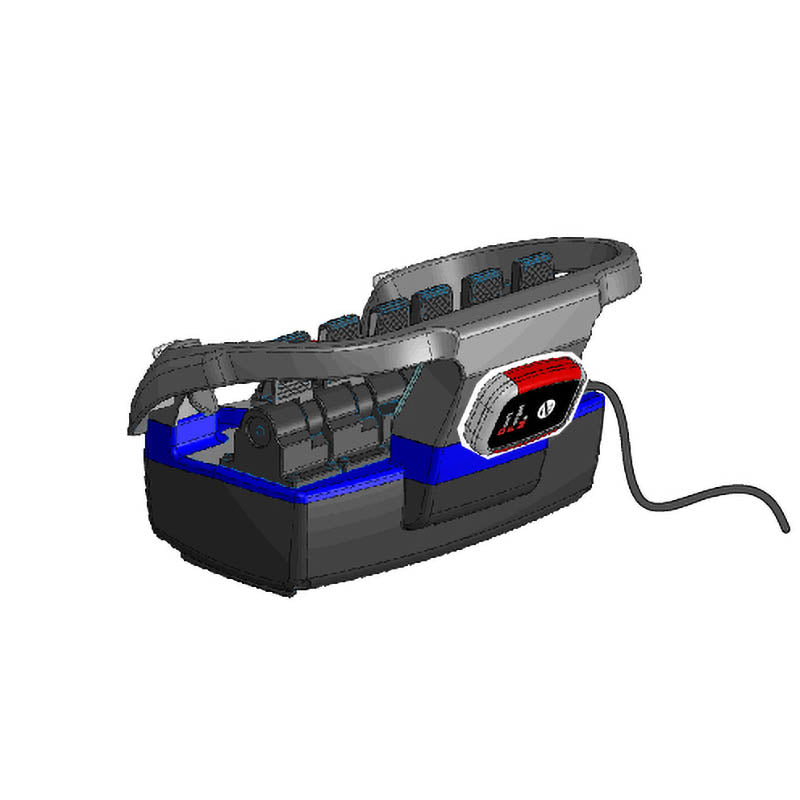

Don't Forget Me Device For RC400 Transmitter

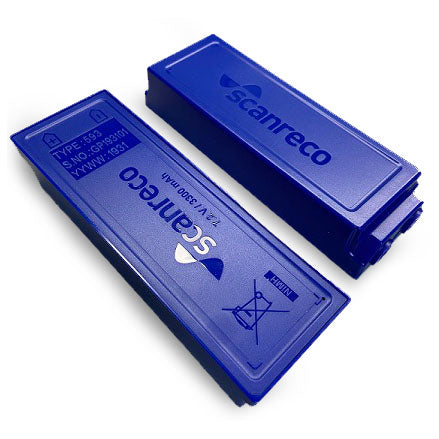

Scanreco Battery 3300mAh Type 593 (for Colour Display)
Scanreco Battery for Mini and Maxi Transmitters
Proportional 5 Pin Paddle
Proportional 4 Pin Paddle
Protective Black Frame For Radio Remote Control Mini Transmitter Scanreco RC400

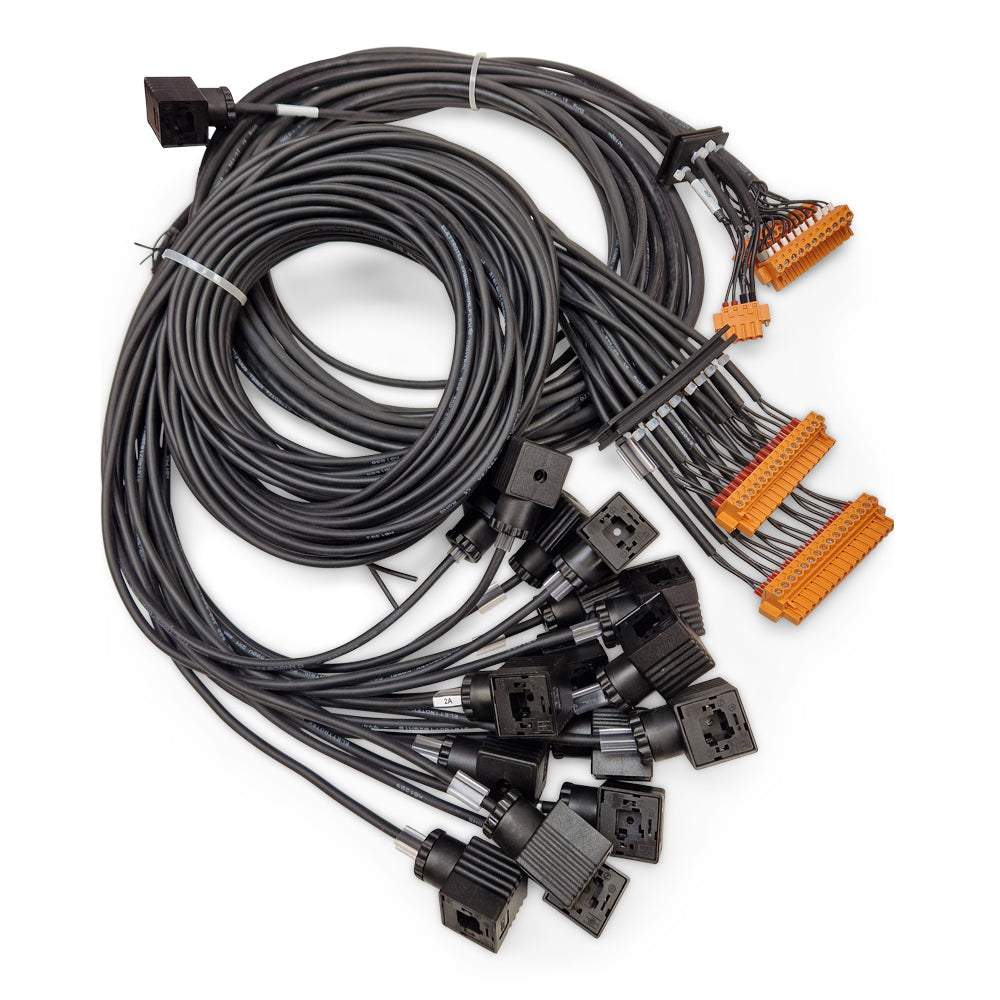

Wiring kit for RC400-6-DAN-DIN
15 Metre Scanreco Control Cable (4 Pin)

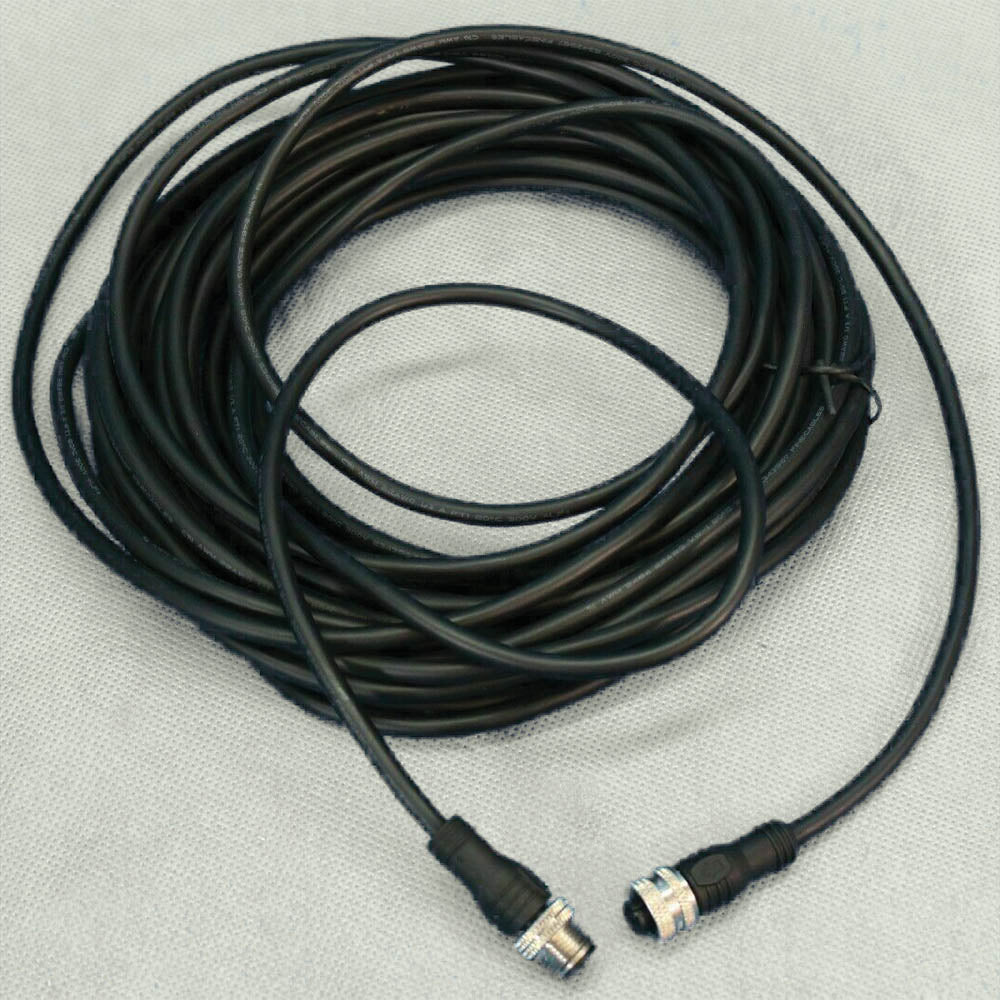

10 Metre Scanreco Control Cable (5 Pin)
Antenna extension cable 10M

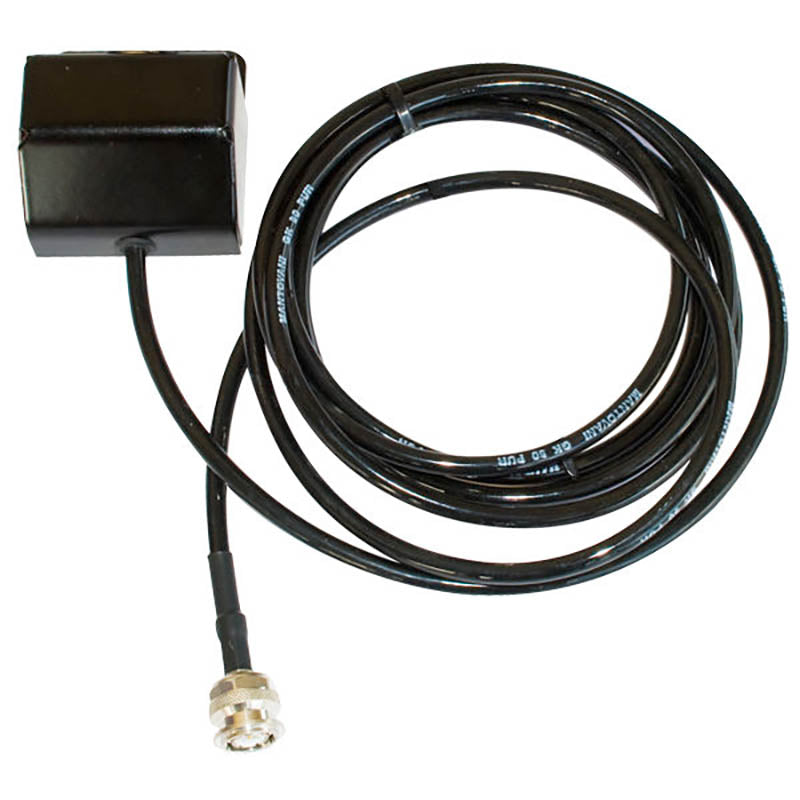

Scanreco Antenna Extension (2.5m)
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
