Key Features

• Valve size: CETOP 3 ; NG6 ; ISO 4401-03
• Voltage: 12 VDC
• Core ; length: Ø 23 mm bore ; 50 mm long
• Connector: DIN 43650 Form A or AMP Jr versions depending on brand
• Protection: IP65 with suitable connector
• Power class: typically ~20–29 W DC coils for NG6

Key Features

• Valve size: CETOP 5 ; ISO 4401-05
• Voltage: 220 VAC 50 Hz
• Core ; length: Ø 31 mm bore ; 75 mm long
• Connector: DIN 43650 Form A
• Protection: IP65 with proper DIN plug
• Notes: match coil ; armature to valve make

Key Features

• Valve size: CETOP 5 ; ISO 4401-05
• Voltage: 110 VAC 50.60 Hz
• Core ; length: Ø 31 mm bore ; 75 mm long
• Connector: DIN 43650 Form A
• Protection: IP65 with proper DIN plug
• Duty: continuous service ; wet armature compatible

Key Features

• Standard: DIN 43650 Form A ; ISO 4400
• Contacts: 3 pole + earth PE
• Rating: 250 VAC ; 10 A max
• Ingress protection: IP65 with gasket ; strain relief
• Use: fits solenoid coils with 18 mm pin spacing ; DIN Form A

Key Features

• Compatibility: HP50 monoblock control valve sections
• Assembly: complete wet spool lever cap with lever hardware
• Rated flow of valve: 50 l.min HP50 valve family
• Seal type: wet armature design with O ring sealing
• Use: service kit to replace damaged cap ; restores manual actuation

Key Features

• Type: inline adaptor male to male
• Threads: 1 1/2 BSP to 1 1/2 BSP
• Standard: BSPP parallel per ISO 228 unless otherwise specified
• Material: plated carbon steel for hydraulic service
• Use: join hoses; valves; pipe runs or extend fittings

Key Features

• Type: fixed male to female inline adaptor
• Threads: 3/4 BSP male to 1 BSP female
• Standard: BSPP parallel per ISO 228
• Material: plated carbon steel
• Use: reduce/enlarge port connection without swivel

Key Features

• Displacement: 87 cm3.rev (Group 4)
• Ports: rear and side inlet ; ISO pattern
• Rotation: bi directional build available
• Continuous pressure: ~220–250 bar class depending on model
• Speed range: up to ~1700–3000 rpm model dependent
• Mounting: PTO friendly ; ISO 4 bolt flange
• Typical use: truck PTO hydraulics ; tippers ; winches

Key Features

• Interface: banjo ring for 1/2" banjo bolt
• Tube end: 15 mm OD tube to suit 15L DIN 2353 compression fittings
• Overall length: 100 mm tube length
• Working pressure: up to 350 bar typical for steel banjo tubes
• Material: zinc plated steel body and tube
• Use: mount cylinders or valves where compact banjo connection is needed

Key Features

• Interface: 32 mm B shaft profile for MR motors
• Compatibility: MR series motor shaft conversion
• Keyway: parallel key drive (B type)
• Use: adapts motor to larger bore couplings and hubs
• Material: alloy steel; precision ground

Key Features

• Shaft type: Ø 32 mm parallel keyed output for MP ; MR motors
• Key standard: DIN 6885 ; ISO R773
• Key size: 10 x 8 mm typical for 30–38 mm shafts
• Compatibility: fits M+S MP ; MR families with CB shaft codes
• Use: service replacement shaft ; verify seal ; bearing diameters
• Applications: general LSHT drives; conveyors; augers

Key Features

• Fastener type: socket cap screw
• Thread: metric M5
• Length: 120 mm
• Drive: internal hex (Allen)
• Use: hydraulic brackets; manifolds; general assemblies

Key Features

• Valve family: OFC PRC 80 pressure relief cartridge ; M26x1.5
• Spring code: 30 set range 130–350 bar for PRC80
• Alt ranges: 10 5–50 bar ; 20 30–260 bar options
• Rated flow: 80 l.min cartridge capacity
• Max working pressure: 350 bar
• Adjustment styles: socket screw A ; handknob B ; tamperproof cap C
• Materials: zinc plated steel cartridge ; hardened internals

Key Features

• Ports: G 3/8 BSPP male x female
• Function: flow actuated hose burst safety valve
• Max flow: 45 l.min typical
• Max pressure: 350 bar
• Body: zinc plated steel ; compact inline
• Notes: install close to actuator port for best protection

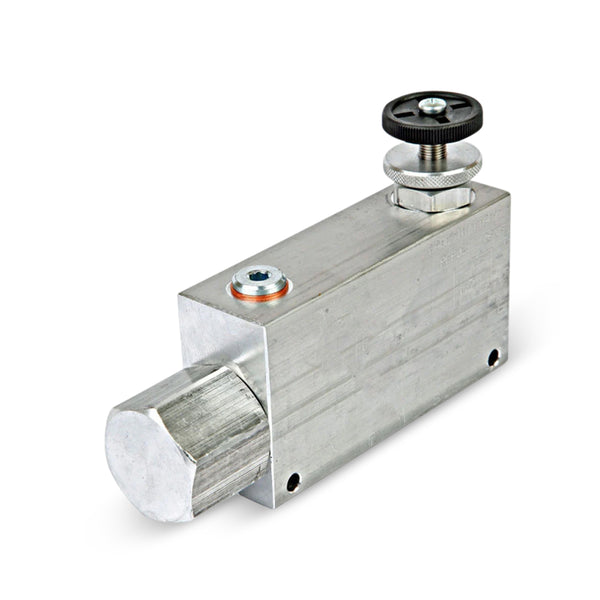

Key Features

• Ports: G 3/8 BSPP
• Function: 3 way pressure compensated priority flow control
• Max inlet flow: 60 l.min
• Max outlet C flow: 35 l.min
• Max pressure: 270 bar
• Body: aluminium body ; hardened steel internals
• Use: set constant actuator flow with excess to tank or secondary circuit

Key Features

• Ports: G 3/8 BSPP
• Function: 90 deg elbow flow regulator with check valve
• Compensation: pressure compensated A->B ; free reverse via check
• Max flow A->B: 30 l.min typical at 3/8 size
• Max pressure: 250 bar
• Body: zinc plated steel ; alloy handknob
• Applications: speed control of cylinder or motor in one direction

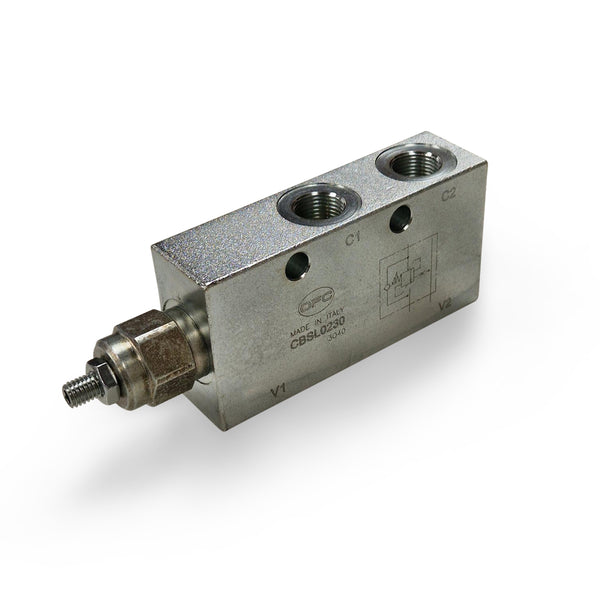

Key Features

• Ports: G 3/8 BSPP
• Type: single overcentre ; external pilot
• Max flow: 40 l.min
• Max pressure: 350 bar
• Setting range: 50 to 350 bar adjustable
• Pilot ratio options: 4.25.1 standard ; 8.75.1 options
• Use: load holding ; smooth controlled lowering on single acting loads

Key Features

• Ports: G 3/8 BSPP female x female
• Function: flow operated hose burst safety shut off
• Max flow: 50 l.min typical
• Max pressure: 350 bar
• Body: zinc plated steel ; low leakage design
• Options: orifice in disc for emergency lowering on request
• Mounting: install at cylinder port ; use downstream flow regulator to control lowering

Key Features

• Shaft diameter: 25 mm
• Key standard: DIN 6885 parallel key
• Key size: 8 x 7 mm typical for 25 mm shaft
• Compatibility: M+S MP ; MR orbital motor shaft interface
• Material: steel ; ground finish on bearing ; seal lands
• Use: replacement straight keyed shaft ; service part

Key Features

• Shaft diameter: 1.000 in
• Key standard: ANSI B17.1 parallel key
• Key size: 1/4 in x 1/4 in typical for 1 in shaft
• Compatibility: M+S MP ; MR orbital motor shaft interface
• Use: replacement straight keyed shaft
• Notes: verify keyway and seal kit against motor series and code

Key Features

• Interface: 25 mm straight keyed shaft
• Compatibility: MR series hydraulic motors
• Keyway: parallel key for positive torque transfer
• Use: couples motor output to hubs; pulleys; couplings
• Material: alloy steel for durability

Key Features

• Spline profile: SAE 6B straight sided 1" 6-tooth per ANSI B92.1 class B
• Major diameter: 1.000 in nominal for SAE 6B
• Compatibility: M+S MP ; MR orbital motor shaft option
• Use: replacement output shaft for LSHT motors
• Material: steel ; typically hardened at spline flanks
• Mating hub: SAE 6B internal spline hub
• Typical applications: drives using 1 in 6B spline couplings ; gearboxes ; hubs

Key Features

• Compatibility: M+S MR series orbital motors series 3 ; series 4
• Shaft seal: 28.56 x 42 x 5.5 mm NBR typical
• Dust seal: 28.5 x 35 x 2 mm
• O rings: 48 x 2 mm ; 90 x 2 mm x3
• Purpose: restores sealing to reduce leakage and maintain pressure
• Use: service kit for MR motor overhaul ; maintenance
• Notes: check shaft code ZI ; different seals exist for ZH ; ZK variants

Key Features

• Interface: 1" straight keyed shaft
• Compatibility: MR series hydraulic motors (Zi)
• Keyway: parallel key for positive torque transfer
• Retention: snap ring/retainer provision (motor dependent)
• Material: alloy steel for wear resistance
• Use: adapts motor to couplings; hubs; pulleys
