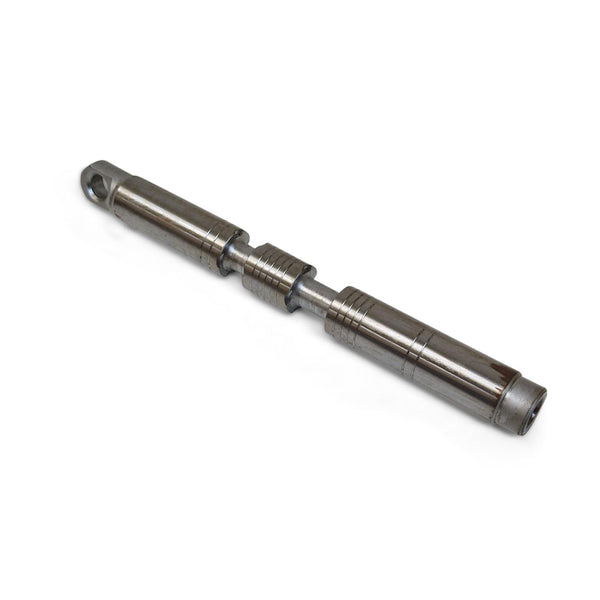

100L Control Valve Single Acting Sppol on B Port (Type 4) A Port Plugged
Key Features
80L Control valve Detent Kit In All 3 Positions
Seal Kit For Hydra Part MR Motor (Zi)

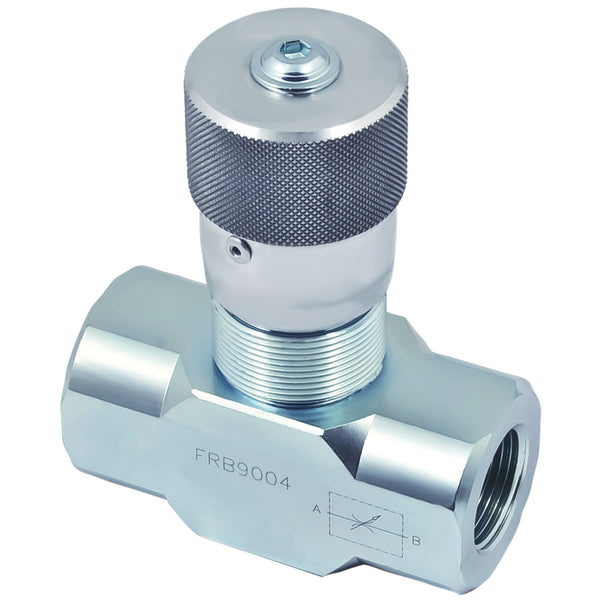

Flow Regulator Valves with Needle Shut Off
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
100L TIE ROD KIT (4 Rods / kit) 10 Bank M10x1.5 553 long
High Visibility Stabiliser Pads
100L TIE ROD KIT (4 Rods / kit) 9 Bank M10x1.5 508 mm long

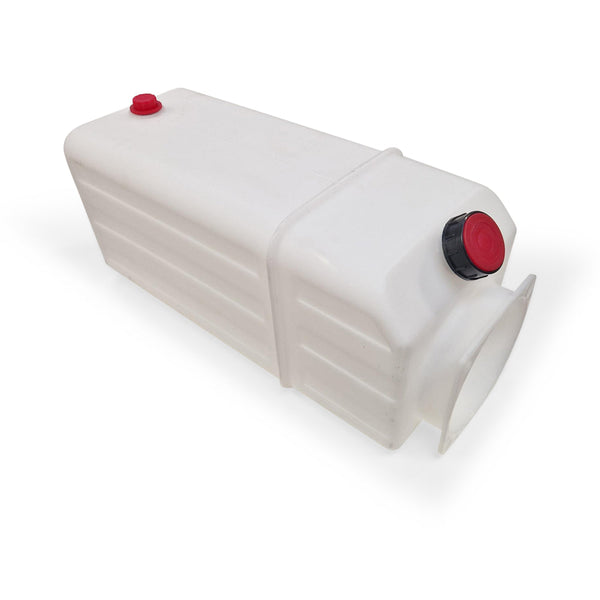

11L Plastic Hydraulic Tank 123mm (AC) Neck Flange
11L Plastic Hydraulic Tank 120mm (DC) Neck Flange
80L Control Valve D/Acting 4 Pos, Float In Pos 3 Spool Type 5BY ( 13QN Pos Kit Req)

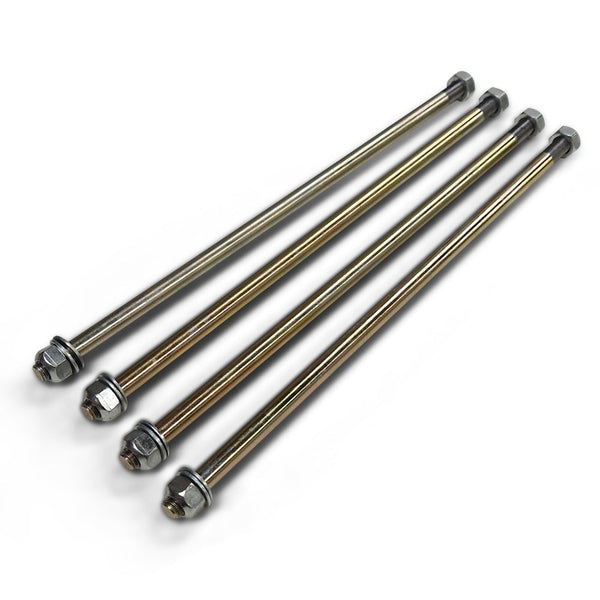

240L Control Valve 1 Bank Tie Rod Kit (4 Rods / kit) M12x1.75 x 237mm long

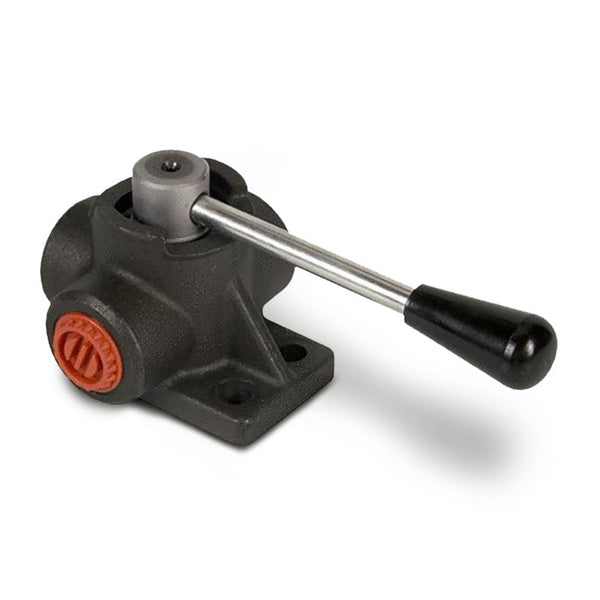

3/8" 3 port manual diverter valve (open centre)
90L 100L 120L 150L Control Valve Remote Cable Connection Kit

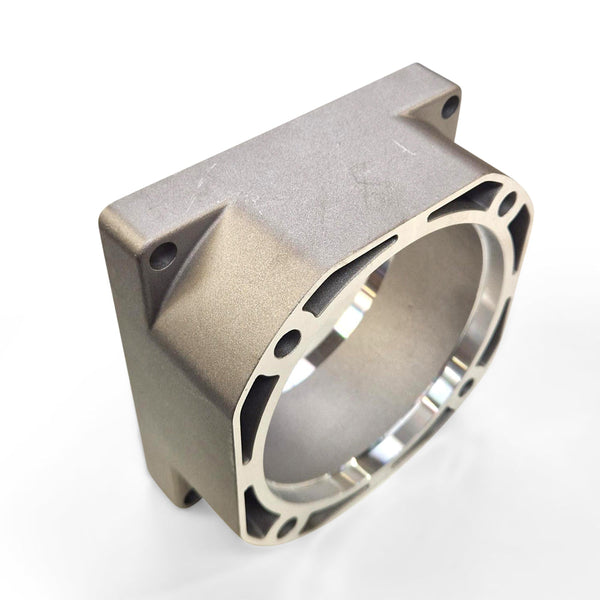

Aluminum Flange For Mounting kit for frame 100/112 B14 AC motor
100L Control Valve Tie Rod Kit - 4 Bank (4 Rods / kit) M10x1.5 x 283mm long
100L Control Valve Tie Rod Kit - 3 Bank (4 Rods / kit) M10x1.5 x 238mm long
100mm Glycerine Hydraulic Pressure Gauge 0-2000 Psi (140 Bar) 1/2" Bottom Entry
100mm Glycerine Hydraulic Pressure Gauge 0-2000 Psi (140 Bar) 1/2" Rear Entry

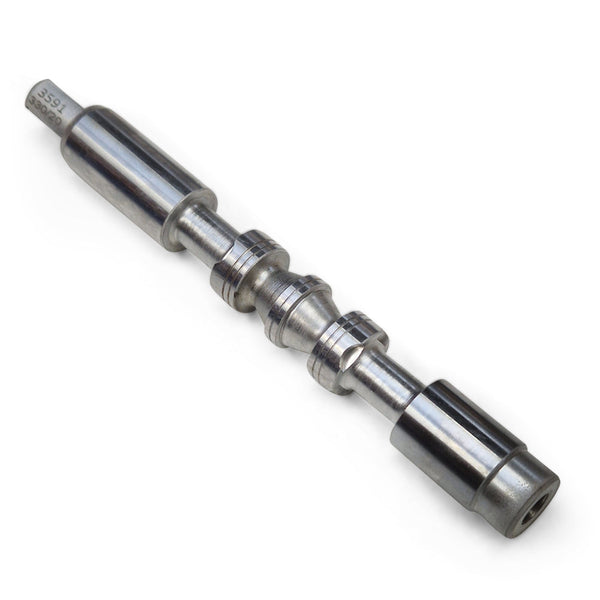

120L Type 2 Motor Spool
80L Control Valve Motor Spool (A&B Partially Open In Neutral) Type 2H

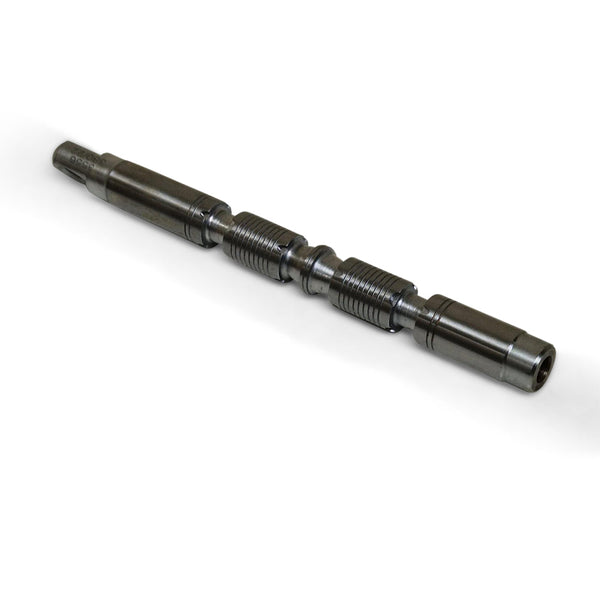

80L Control Valve D/acting spool, 3 posn (A & B closed in neutral) Type 1

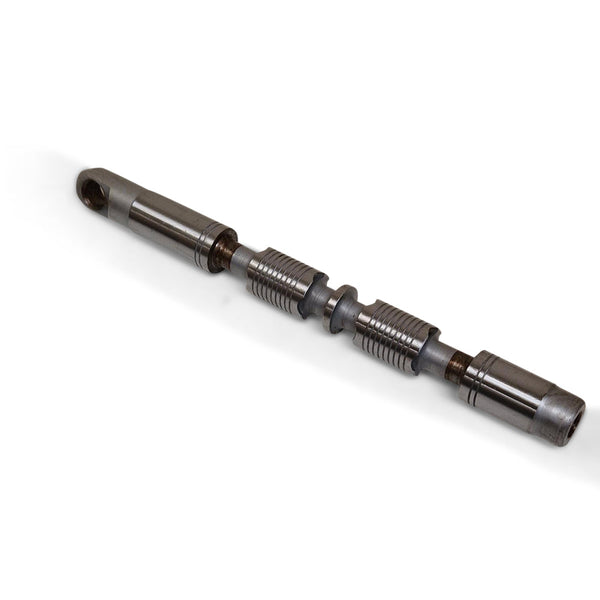

80L Control Valve Motor Spool (A & B Open In Neutral) Type 2
Joystick Cables
45L & 50L Control Valve 4 Position Detent in posn 3) for spool 5DY Float Spool (G)
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
