1/2 BSPP CETOP 5 Single Manifold - 80 L/Min - 20/210 Bar - Aluminium Body

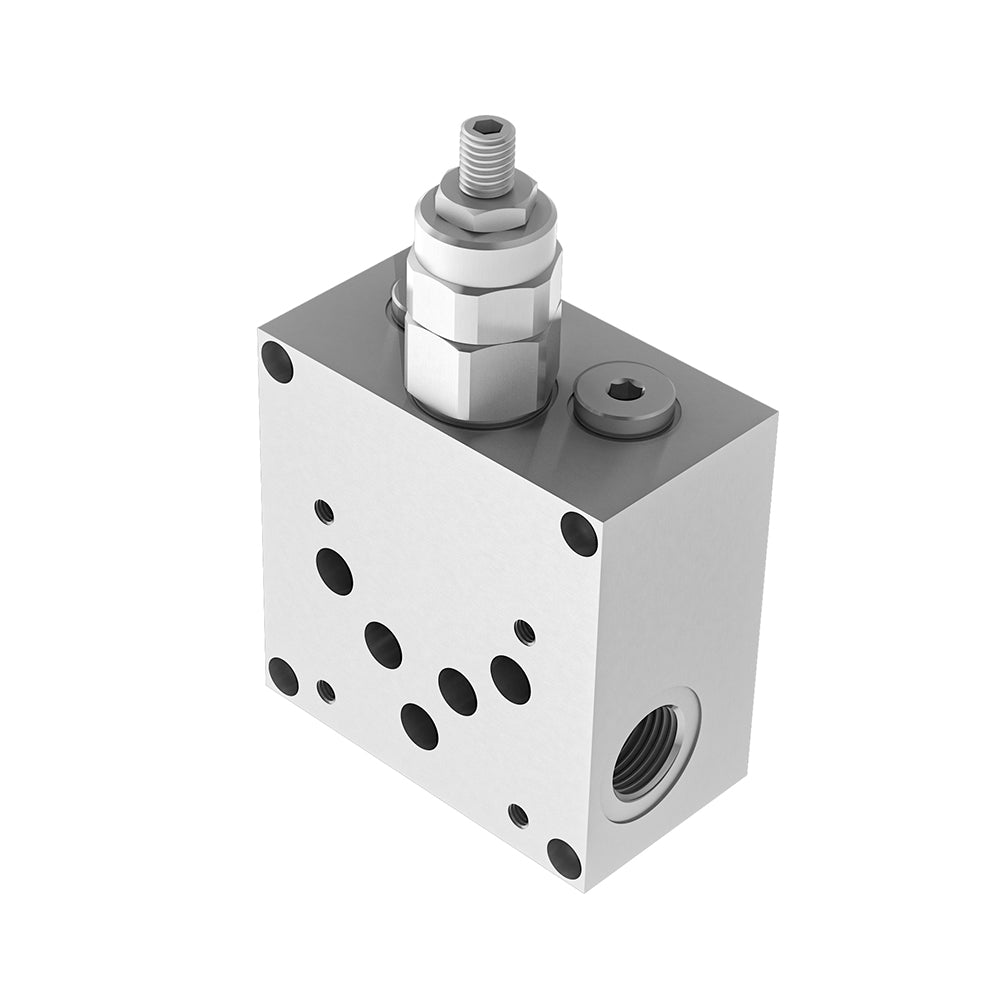

The MC5 CETOP 5 is a lightweight aluminium manifold base for CETOP 5 solenoid valves with an integrated relief valve. It supports flows up to 80 l/min at 210 bar, with spring ranges of either 10–100 bar or 20–210 bar. Ports are BSPP, and optional accessories such as a hand knob and tamper-proof cap enhance usability and safety. Compact and durable, it is suited for mid-sized hydraulic applications.

Key Specifications

• Port sizes: A-B-P-T 1/2 BSPP; M ports 1/4 BSPP.

• Max flow & pressure: 80 l/min (≈21.1 US gpm) at 210 bar (≈3045 psi).

• Spring ranges: 10–100 bar or 20–210 bar.

• Adjustment sensitivity: ~15 bar (≈218 psi) increase per screw turn.

• Construction & weight: Aluminium body, approx. 1.20 kg (2.64 lb).
