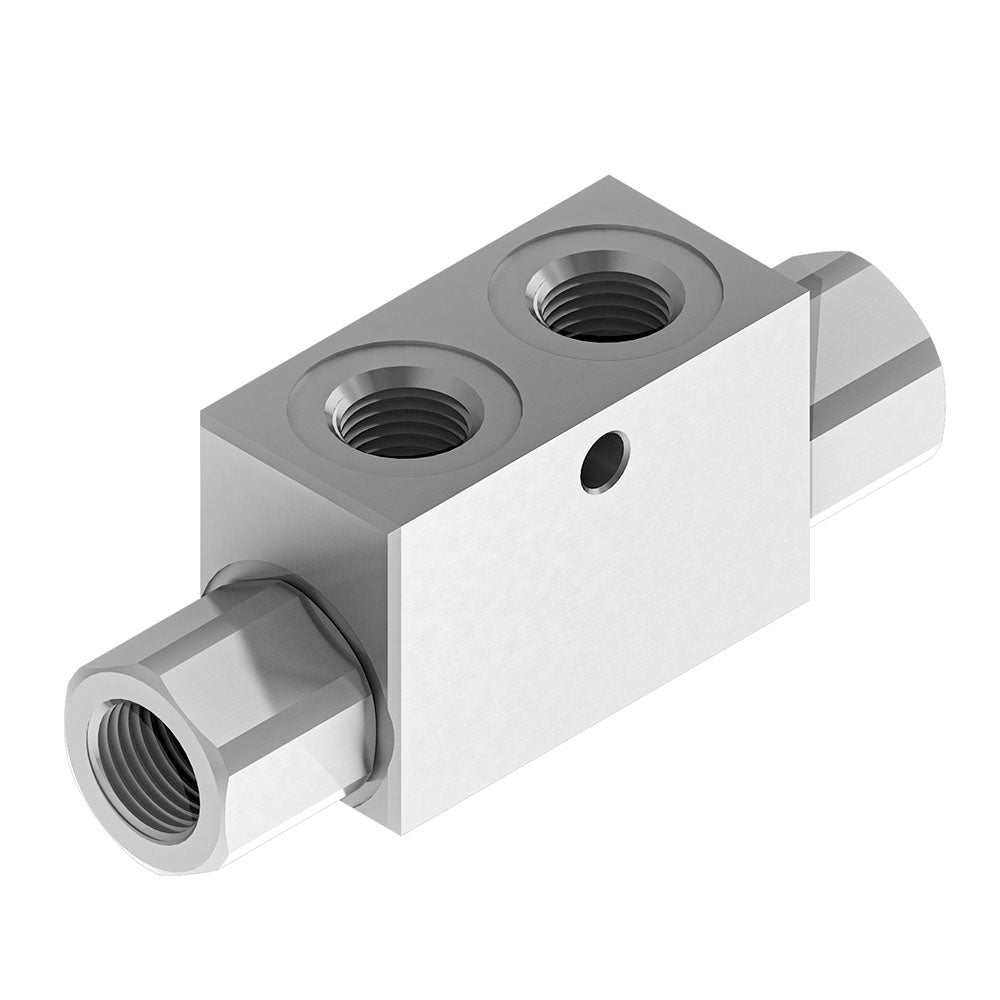

1/4 BSPP Double Acting Pilot Check Valve

The VBD1B is a compact pilot‑operated check valve with ¼‑in BSPP ports. It locks a double‑acting actuator in both directions until pilot pressure is applied, making it suitable for holding loads in place. This model handles flows up to about 20 L/min and weighs roughly 0.65 kg. It uses a high pilot ratio (about 1 : 5.5) and has a standard cracking pressure around 4.5 bar, although alternative springs of 3 bar or 6 bar can be ordered. The steel‑body valve’s small dimensions (≈ 30 mm wide and 40 mm high) allow installation in tight hydraulic systems.

Key specifications for VBD1B:

• Port size: ¼‑in BSPP cylinder and pilot ports.

• Flow capacity: Handles up to ~20 L/min (≈ 5.3 US gpm).

• Pilot ratio / cracking pressure: Pilot ratio about 1 : 5.5; standard cracking pressure 4.5 bar (optional springs for 3 or 6 bar).

• Physical dimensions: Approx. 30 mm body width and 40 mm height; compact steel body, aluminium optional.

• Weight: Roughly 0.65 kg (1.43 lb).
