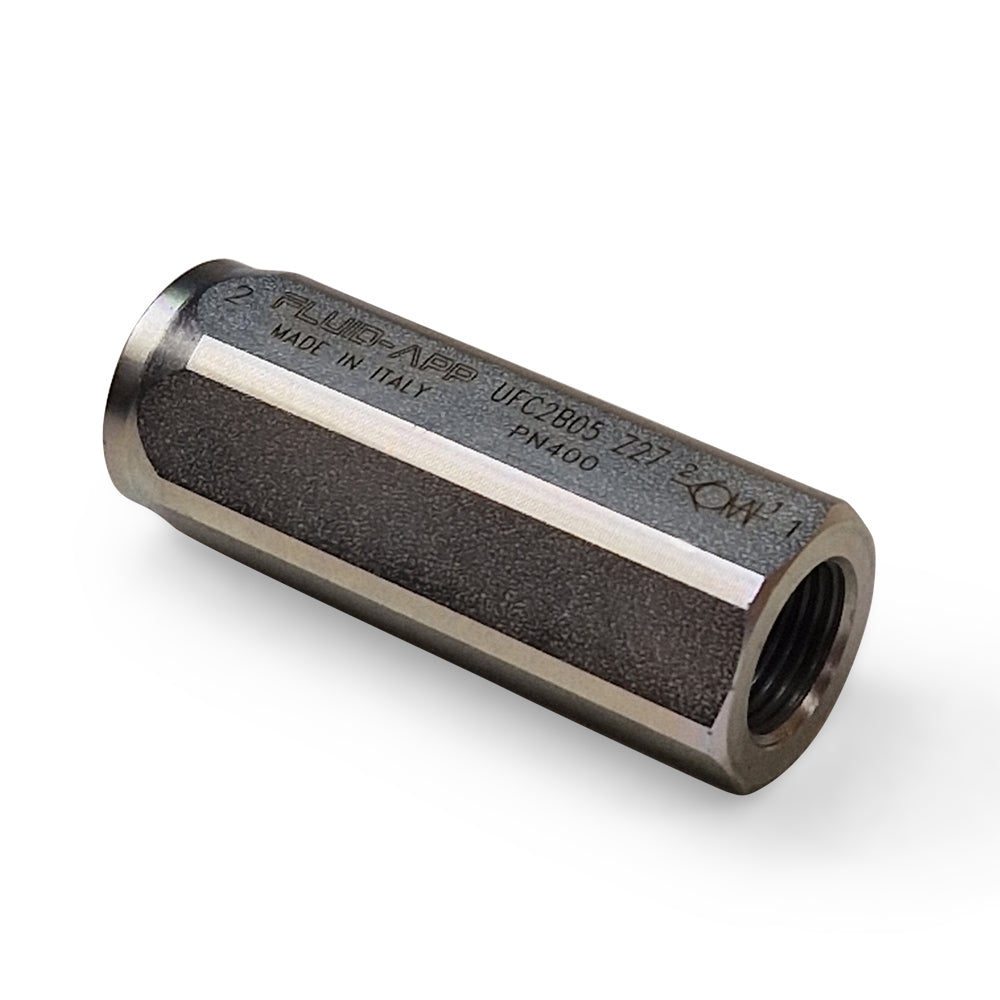

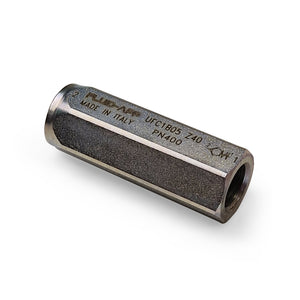

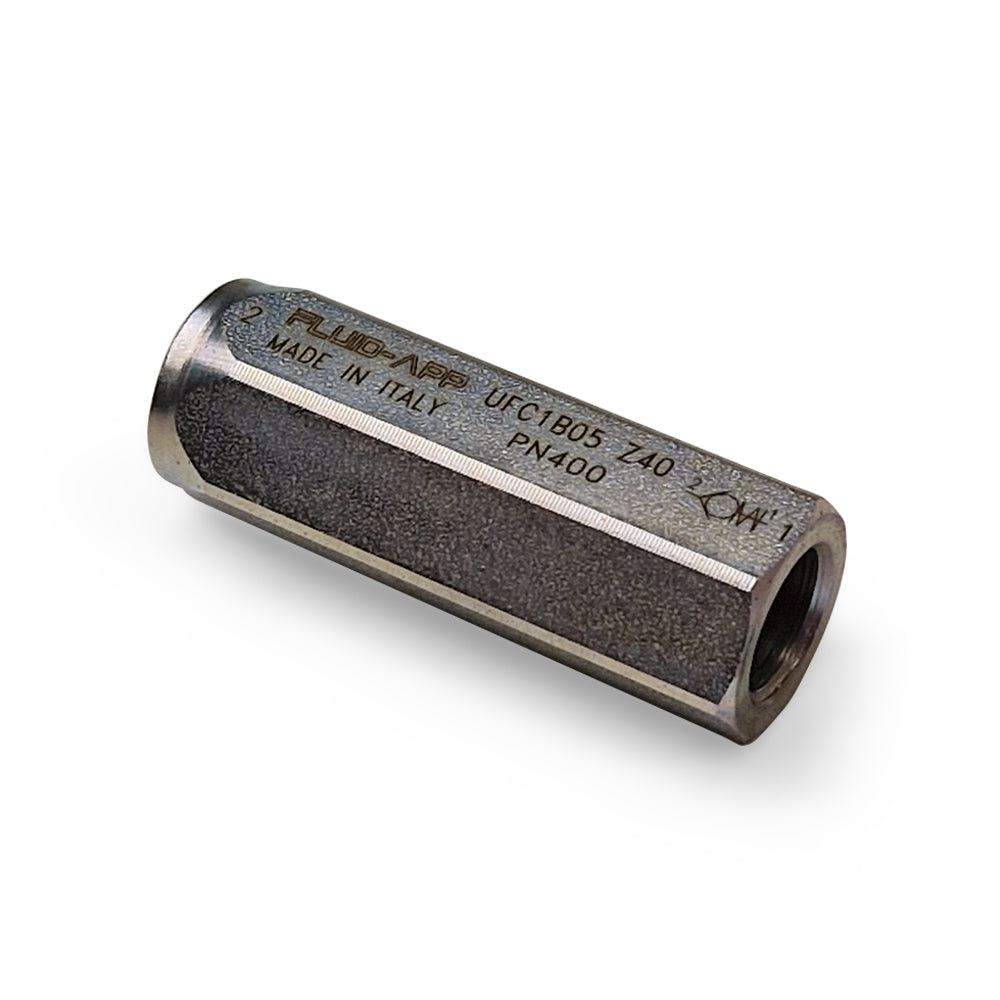

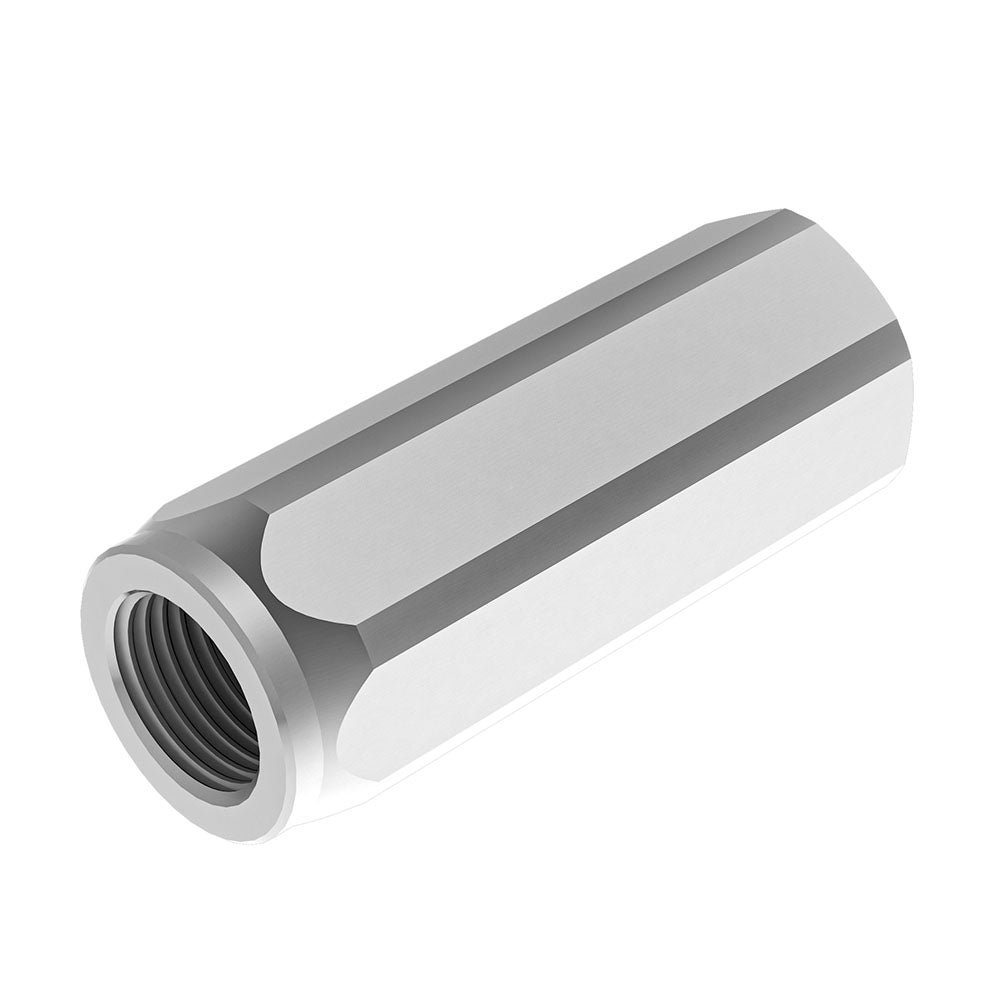

BSPP Female Poppet Check Valve - Cracking Pressure 0.5 Bar

The UFC series are steel-bodied BSPP check valves that allow free flow in one direction and block reverse flow. They cover port sizes from 1/4 to 1-1/2 BSPP, with flow rates up to 350 l/min and pressures up to 400 bar. Available in both poppet and ball versions, they feature standard or optional cracking pressures and are suited for agricultural and industrial hydraulic applications.

Key Specifications

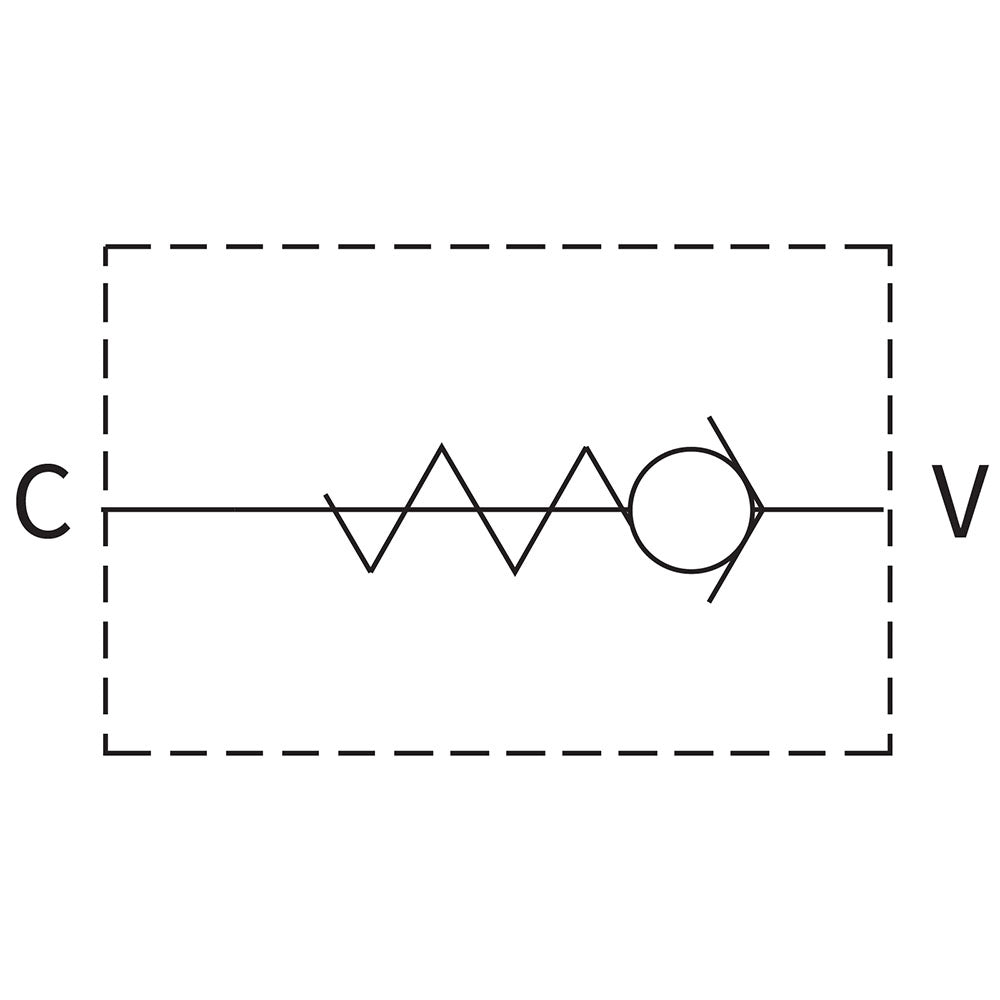

• Function: One-way check valve; full flow in one direction, blocked in reverse.

• Port sizes: 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, and 1-1/2 BSPP.

• Flow capacity: 30–350 l/min (≈7.9–92.5 US gpm).

• Max pressure: 350–400 bar (≈5075–5800 psi).

• Construction & options: Steel body; poppet or ball type; standard cracking pressure 0.5 bar with optional 3 or 6 bar.
