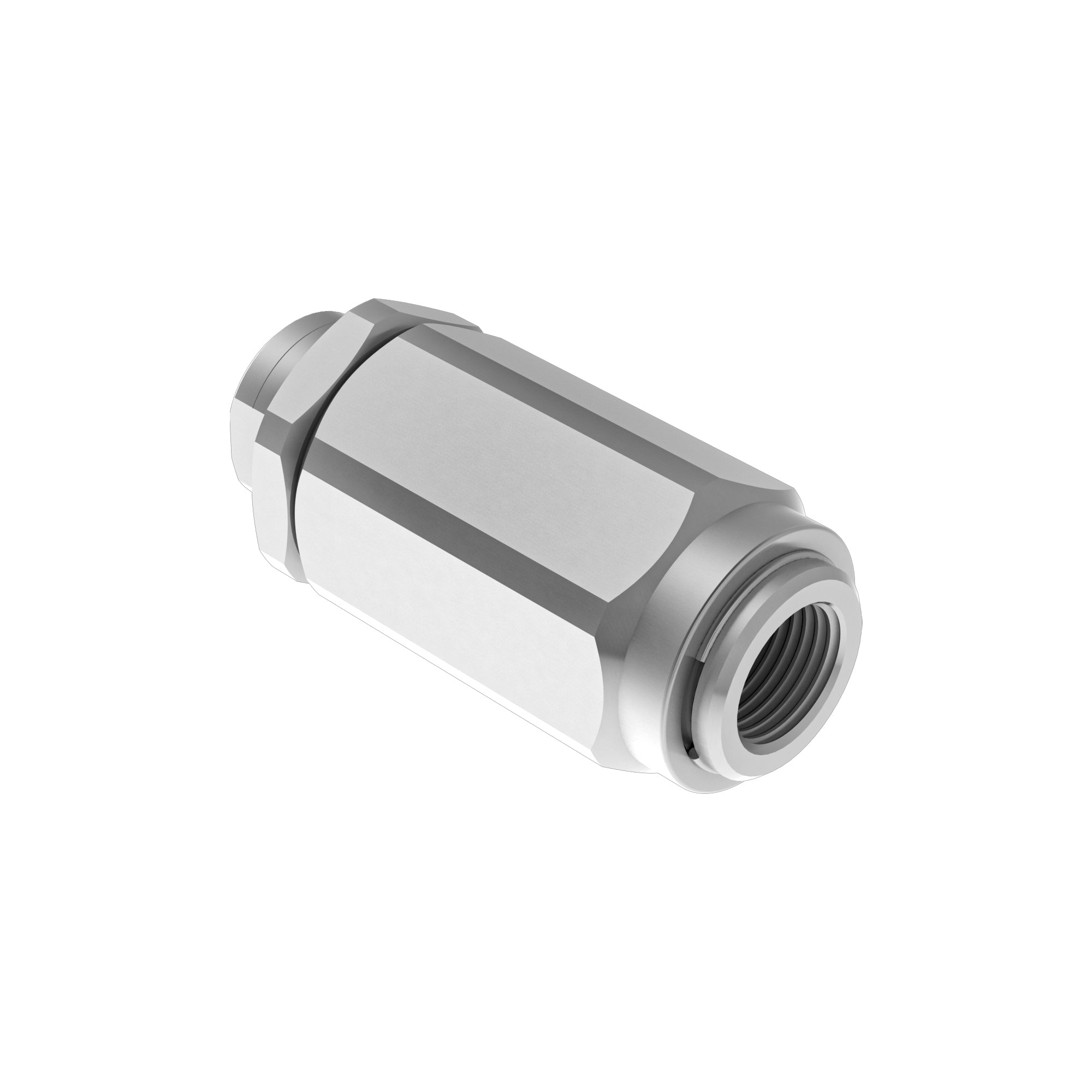

BSPP One Way Flow Control Valve - Barrel Type

The VCU Flow Control BSPP valves provide efficient one-way free flow and controlled regulation in reverse flow. With steel construction, BSPP threaded ports, and compatibility with flow ranges from 25 to 160 l/min, they offer robust performance for hydraulic circuits under pressures up to 350 bar. Their sizing options from 1/4" to 1" BSPP make them adaptable for multiple installation needs.

Key Specifications

• Connection sizes: 1/4", 3/8", 1/2", 3/4", and 1" BSPP ports

• Maximum flow rates: from 25 l/min up to 160 l/min (6.7 to 42.7 US gpm)

• Maximum working pressure: up to 350 bar (5075 PSI), depending on model

• Construction: robust steel body with hexagonal profile for easy installation

• Weight range: from 0.23 kg (0.5 lb) to 1.5 kg (3.3 lb), depending on valve size

Data Sheet
