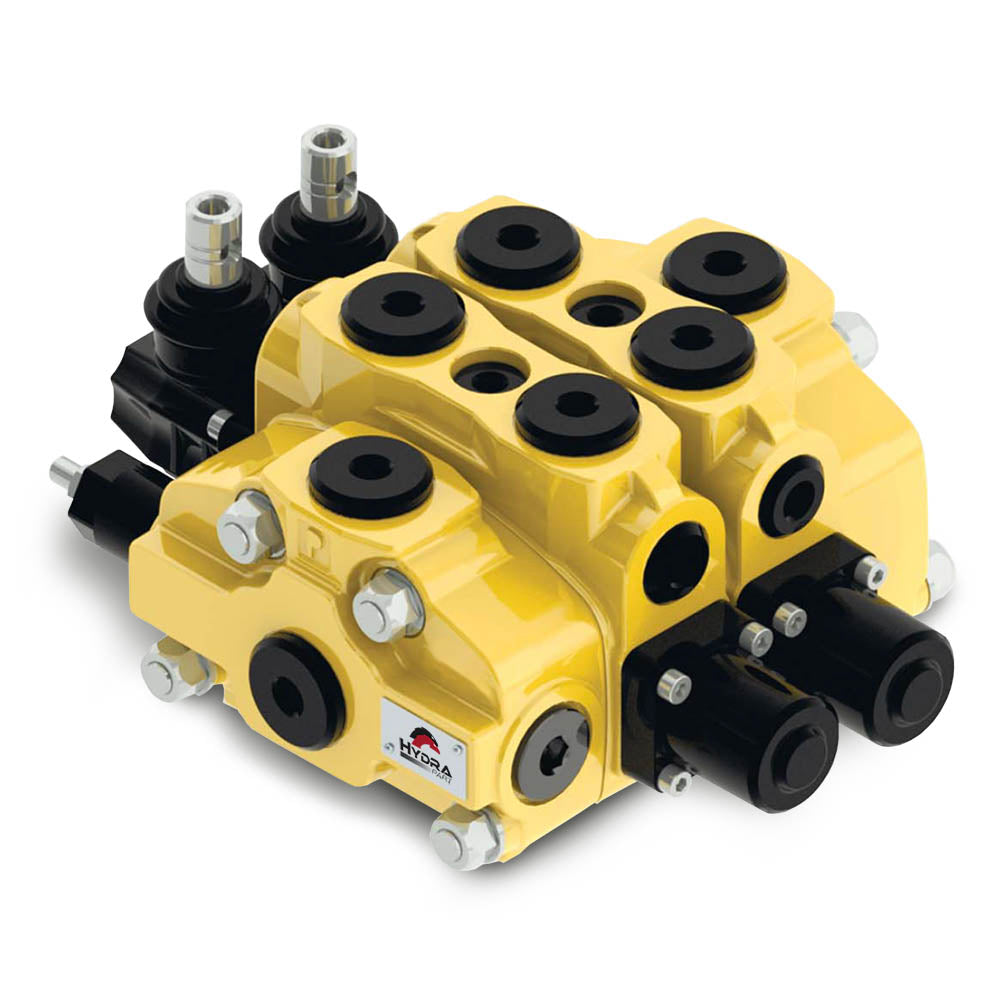

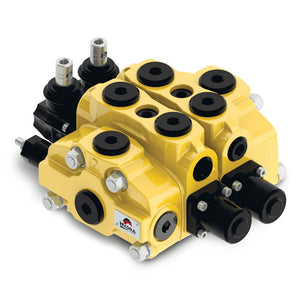

100L GS Sectional Control Valve

Manufacturer: Hydra Part

Product Code: 100LGS

Shipping Rates
  • Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
    • Fitted with a main pressure relief valve and a load check valve on every working section
    • Available with parallel, tandem or series circuit.
    • Optional carryover port.
    • A wide variety of auxiliary valves.
    • Intermediate sections for several types of circuit.
    • Available manual, pneumatic, hydraulic, electro-hydraulic, and remote with flexible cables spool control kits.
    • Diameter 20 mm 0.79in interchangeable spools.
    • Nominal flow rating


      100 l/min.


      Max. flow


      120 l


      Operating pressure (max.)


      315 bar

      4600 psi

      Back pressure (max.)

      on outlet port T

      25 bar

      360 psi

      Internal leakage A(B)T

      ∆p=100 bar – 1450psi with fluid and valve at 40°C


      0.18 in3/min.

      Hydraulic fluid


      Mineral base oil


      Fluid temperature

      with NBR seals

      from - 20° to 80°C



      with FPM (VITON) seals

      from - 20° to 100°C



      operating range

      from 15 to 75 mm2/s

      from 15 to 75 cSt



      12 mm2/s

      12 cSt



      400 mm2/s

      400 cSt

      Max. level of contamination


      19/16 – ISO 4406


      Tie rods tightening torque (wrench 17)




    • Data Sheet 2 Data Sheet 2
      Data Sheet (Basic) Full Specification (17Mb)
