3/8 BSPP CETOP 3 Single Manifold - 50 L/Min - 70/350 Bar - Aluminium Body

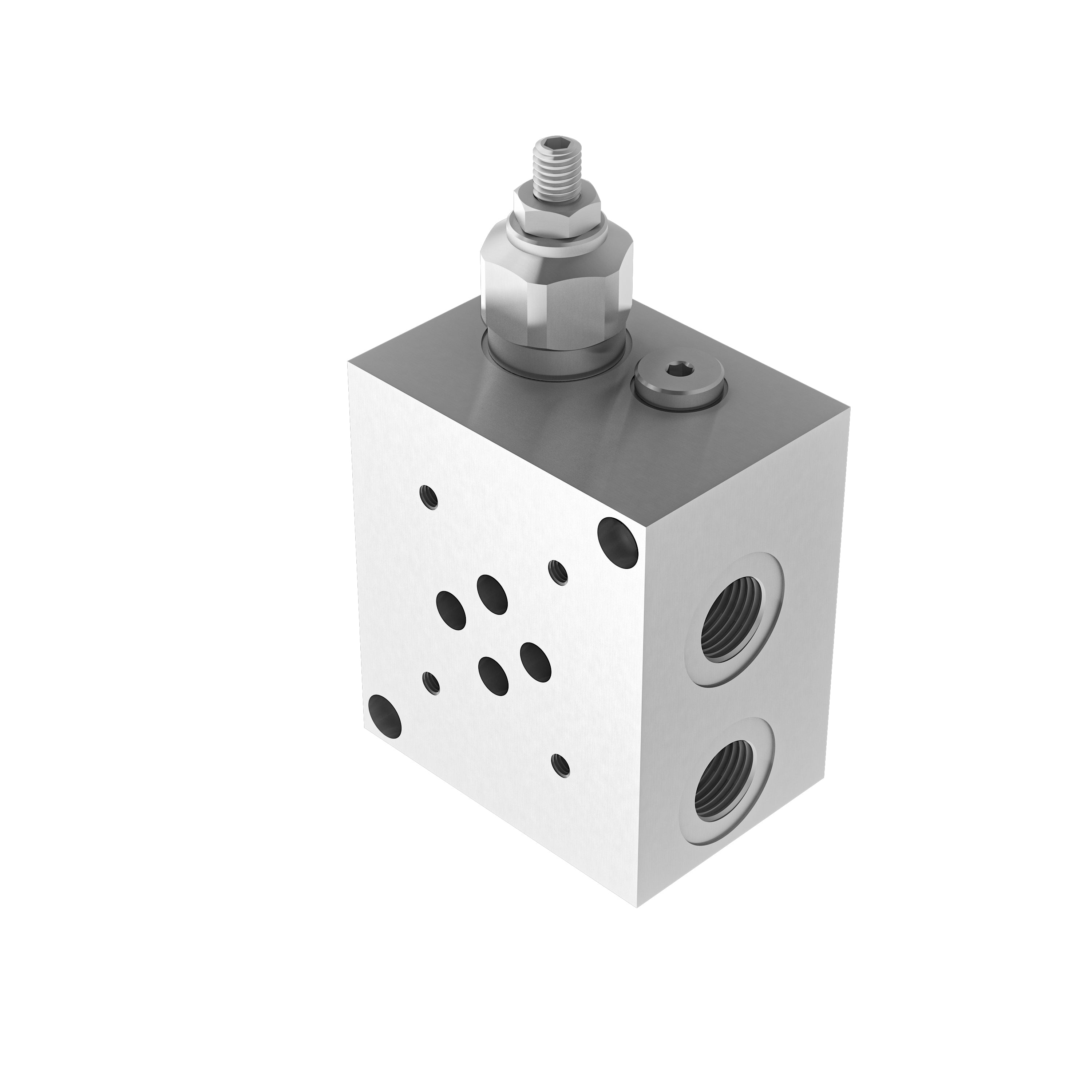

The MC3 CETOP 3 is a lightweight aluminium single manifold base with an integrated relief valve, designed to mount CETOP 3 solenoid valves. It features BSPP ports, supports up to 50 l/min and 210 bar, and offers adjustable pressure ranges. Accessories include a hand knob and a tamper-proof cap, making it versatile and secure for hydraulic systems.

Key Specifications

• Port sizes: A-B-P-T ports 3/8 BSPP; M ports 1/4 BSPP.

• Max flow: Up to 50 l/min (≈13.3 US gpm).

• Max pressure: 210 bar (≈3045 psi).

• Adjustment: Pressure increase of ~16.5 bar (239 psi) per screw turn.

• Construction & weight: Aluminium body; approx. 0.8 kg (1.76 lb).
