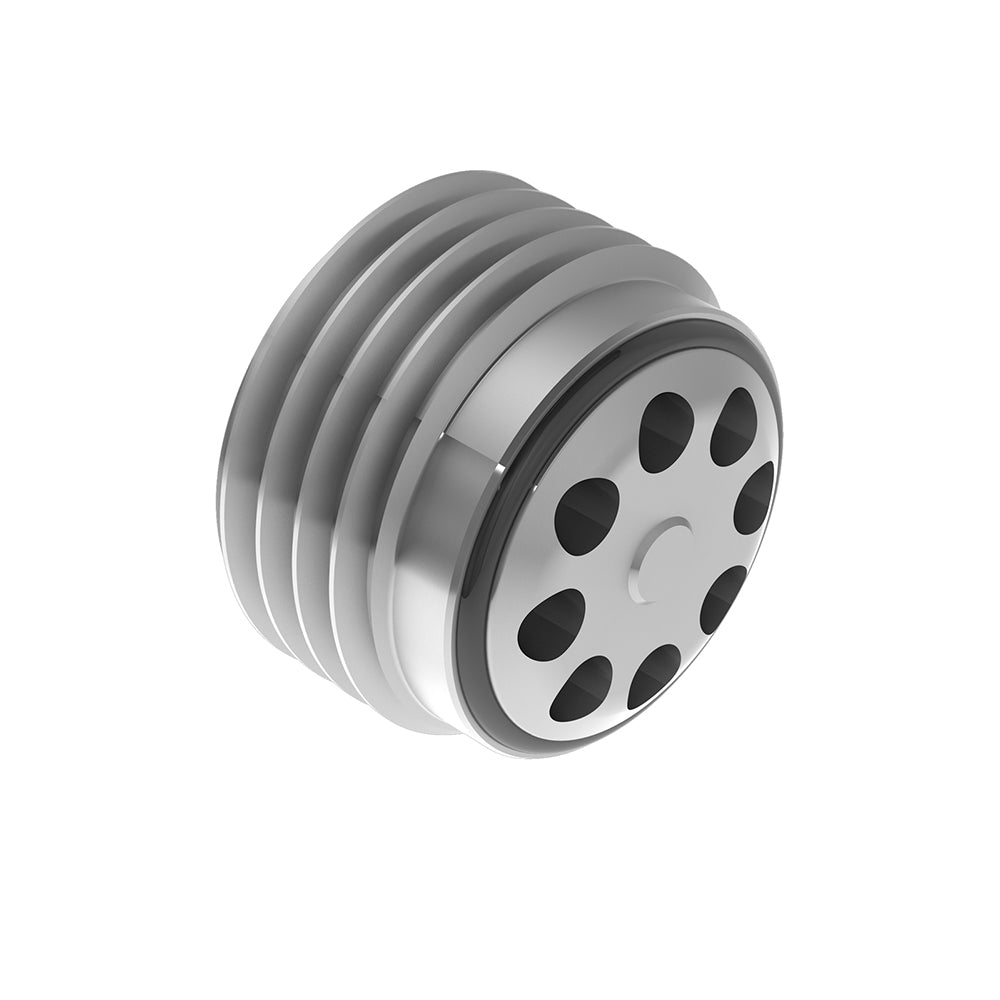

3/8 BSPP Insert Reverse Check Valve Poppet Type - Cracking Pressure 0.5 Bar

The VUD2B 3/8" BSPP Poppet-Type Check Valve is designed to allow free flow in one direction while completely blocking flow in the opposite direction. Compact and reliable, it is particularly suited for integrated hydraulic circuits mounted on blocks, where small valve dimensions are required. The valve incorporates an external O-ring seal, ensuring secure fitting and leak-free performance. With its robust design and high flow capacity, the VUD2B delivers dependable functionality in demanding hydraulic applications.

Key Specifications (VUD2B – 3/8" BSPP)

• Port size: 3/8" BSPP

• Maximum flow rate: 50 l/min (13.19 US gpm)

• Maximum pressure: up to 350 bar (5075 PSI)

• Cracking pressure: 0.5 bar (7.3 PSI)

• Weight: 0.015 kg (0.033 lb)
