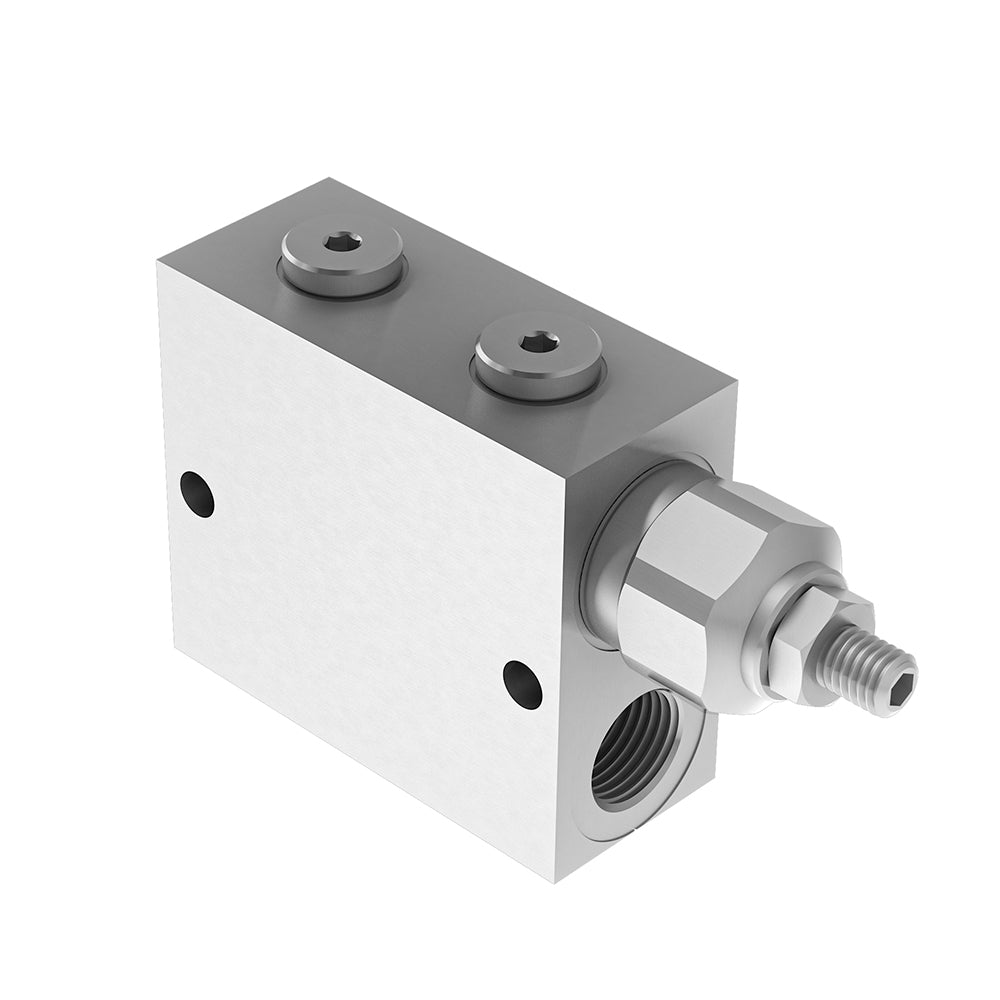

3/8 BSPP Sequence Valve - 40 L/Min - 70/350 Bar - Steel Body

The VSD sequence valves are engineered to control the order of operations between two hydraulic cylinders by maintaining a set pressure threshold. Compact and durable, they ensure smooth and safe transitions between stages in a hydraulic cycle. With adjustable pressure ranges, high-pressure tolerance up to 350 bar, and flow capacities of 40–50 l/min, these valves provide consistent performance in demanding applications.

Key Specifications

• Connection sizes: 3/8" BSPP and 1/2" BSPP ports

• Maximum flow rates: 40 l/min (10.6 US gpm) and 50 l/min (13.2 US gpm)

• Maximum pressure: 350 bar (5075 PSI)

• Spring ranges: 10–70, 20–210, and 70–350 bar depending on model

• Adjustment options: Hand knob or tamper-proof cap with 16.5–20 bar increase per turn
