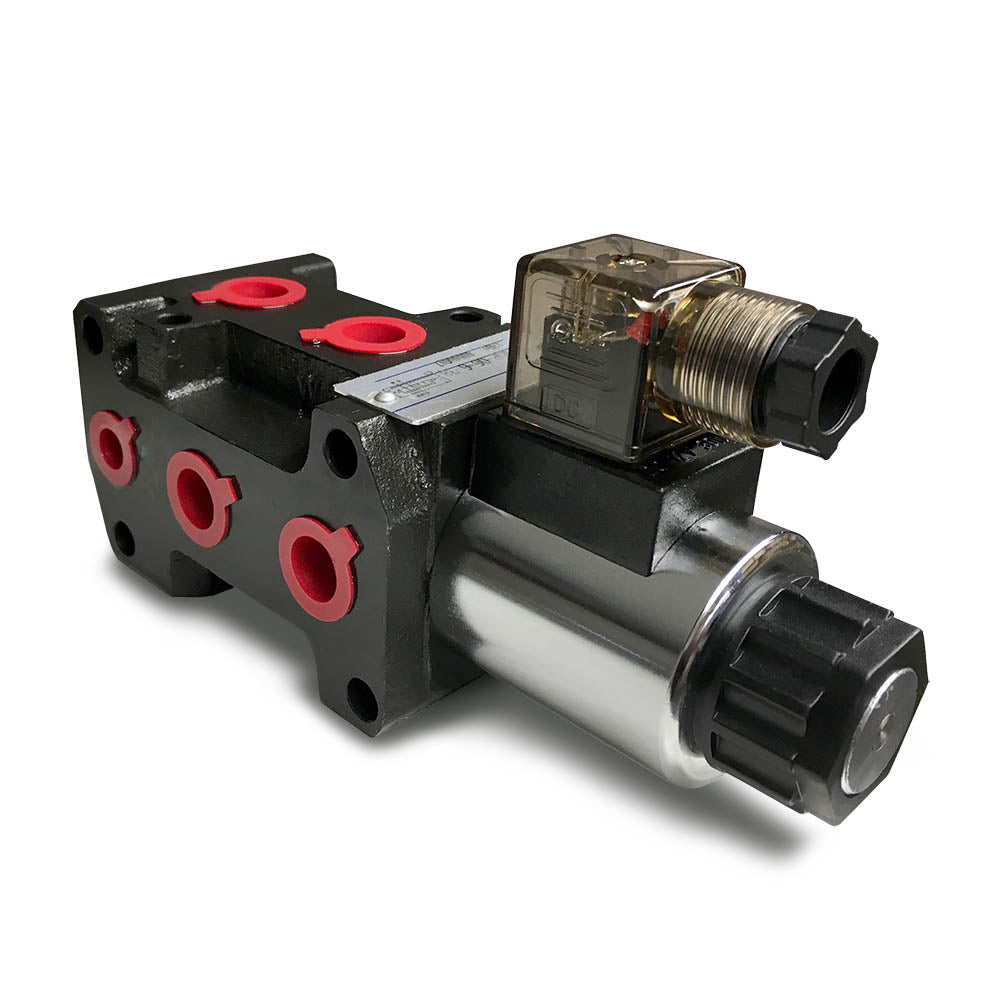

6 Port Closed Centre Solenoid Diverter Valve 3/8" 50LPM 12vDC/24vDC

HP-6PDV-38-12VDC

15 In Stock

Hydra Part stackable circuit diverter valves with up to 5 units connected in series. Solenoid operation negates the need for external drainage and manage high power with minimal pressure drop.

Important Note!

If you intend to stack these valves in series, to ensure compatibility, please provide us with the part no. shown on the valves that you already have. (Please add this information to the message section at checkout.)

AMBIENT TEMPERATURE oC -30 … +50
VISCOSITY mm2/s 15 … 380
FLUID TEMPERATURE oC -20… +70
FILTRATION 9 to NAS 1638
MAX OPERATING PRESSURE bar 250
SUPPLY VOLTAGE V 12-24
NOMINAL FLOW L/min 50
POWER - W 36-29
SWITCHING FREQUENCY - 1/h 15000
COIL TEMPERATURE - oC Up to 180
DUTY CYCLE % 100
