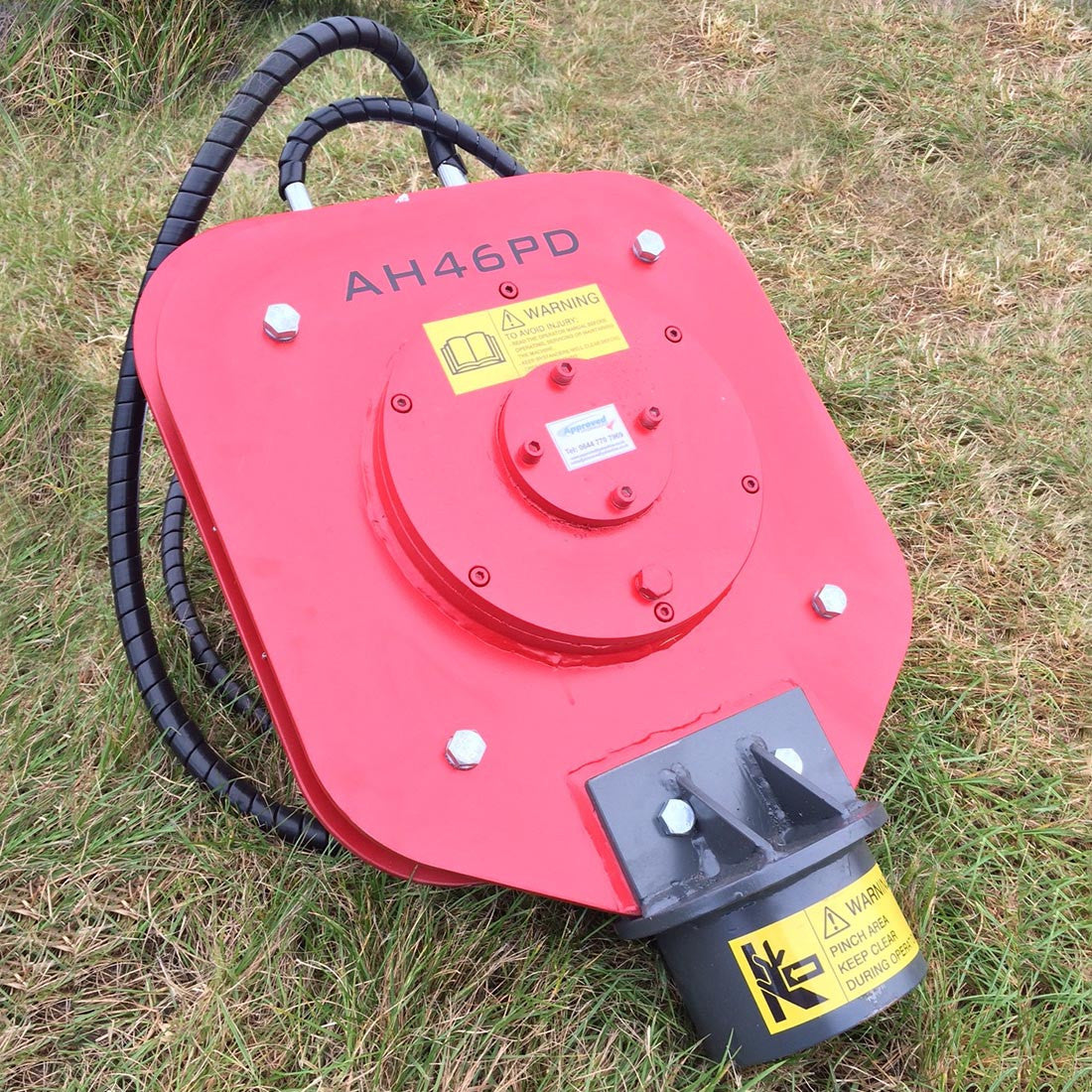

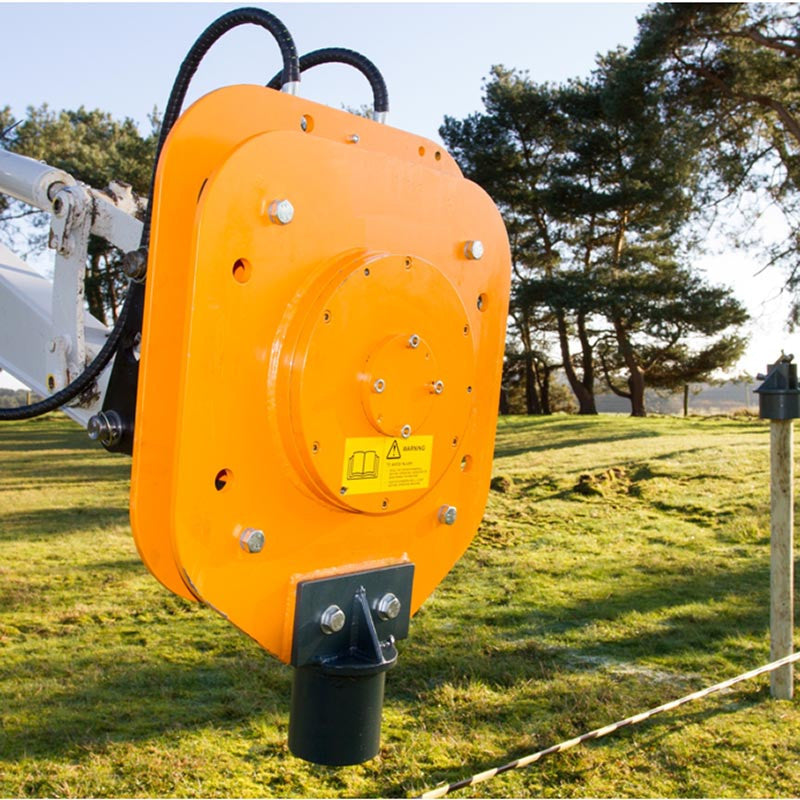

AH469PD Vibrating Post Driver

AH469PD

Shipping

This brilliant attachment makes fast work of driving posts into a variety of soil types. It can work at a range of angles and makes an excellent investment for any mini excavator operator undertaking:

  • Post & Rail, Security and general fencing installation
  • Vineyard Trellis Installation
  • River Barrage & Sand Groyne construction
  • Fence post removal

Specification

  • Centrifugal Force at 50 HZ: 45 Kns (Amplitude 2.10mm)
  • Centrifugal Force at 35 HZ: 22 Kns (Amplitude 3.75mm)
  • Hydraulic Requirements: Min 26 lpm @ 166 bar
  • Post Sizes: 4”, 6” or 9” diameter *
  • Other Requirements: Hammer Circuit
  • Weight: 245 kgs

* Unit comes supplied with:

  • Hitch bracket
  • hoses
  • QR couplers
  • Spare rubber Buffers
  • 2 cup sizes (4”,6” or 9” or bespoke options)

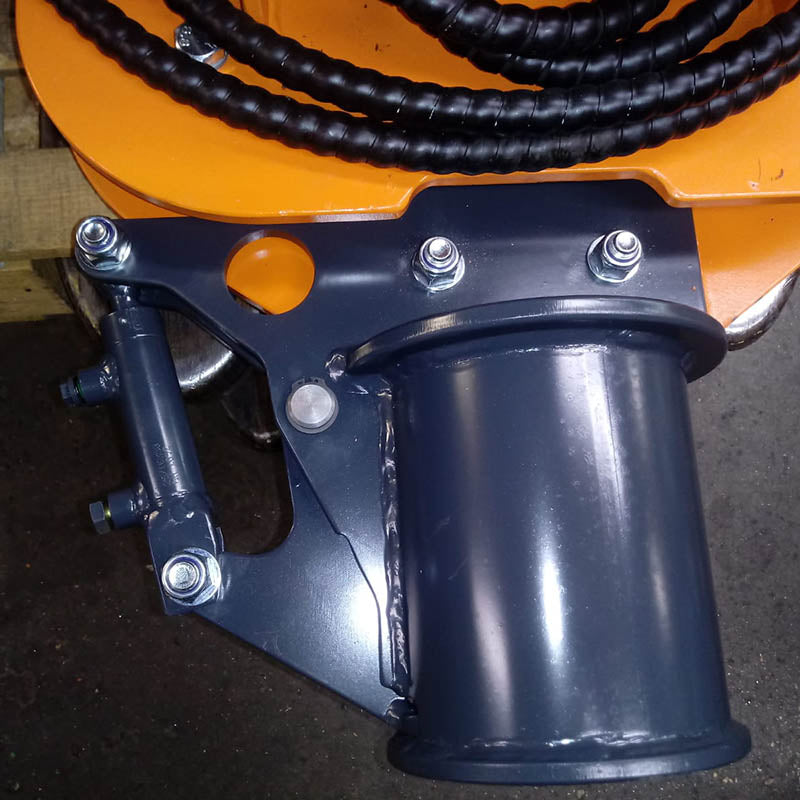

* Also available with pole gripper attachment
