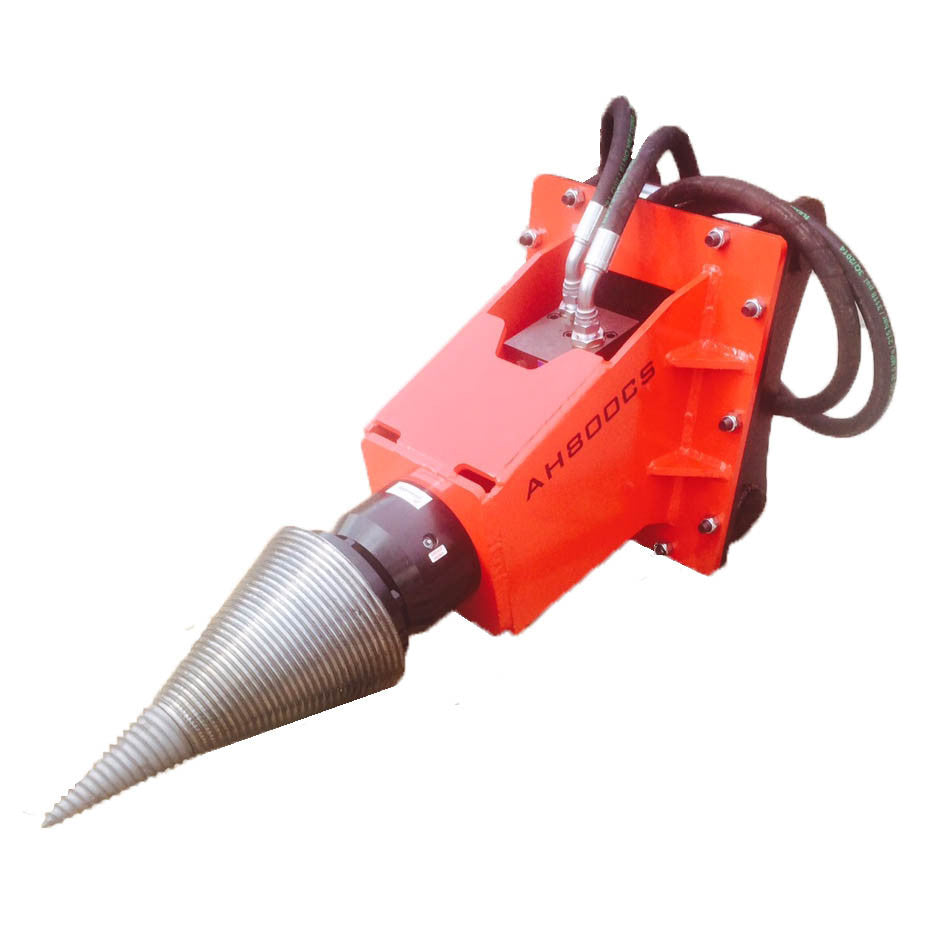

AH800CS Hydraulic Cone Splitter

Brand: Approved Hydraulics

Key Features

  • Host machines : excavators 8–16 t; backhoes; telehandlers; cranes
  • Weight : ~185 kg excluding hitch
  • Cone : 250 mm diameter x 400 mm long; removable hardened tip
  • Motor torque : up to ~2475 N·m
  • Max log size : ~3 m long x 1.3 m diameter
  • Use : high output splitting of large diameter logs and roots

Description

Ideal and compact method of splitting down both good timber and difficult timber such as roots.

Can be fitted to range of machines that can access timber such as excavators, backhoes, tele-handlers and some heavy duty cranes.

Specification


  • Excavators: 8-16T

  • Weight: 185Kg (excluding hitch)

  • Cone: 250 Dia x 400 long with removable hardened tip

  • Hydraulic Motor: Max torque 2475 N/m

  • Max Log Size (typical): 3m long x 1.3m dia
POA
Product Code: AH800CS
