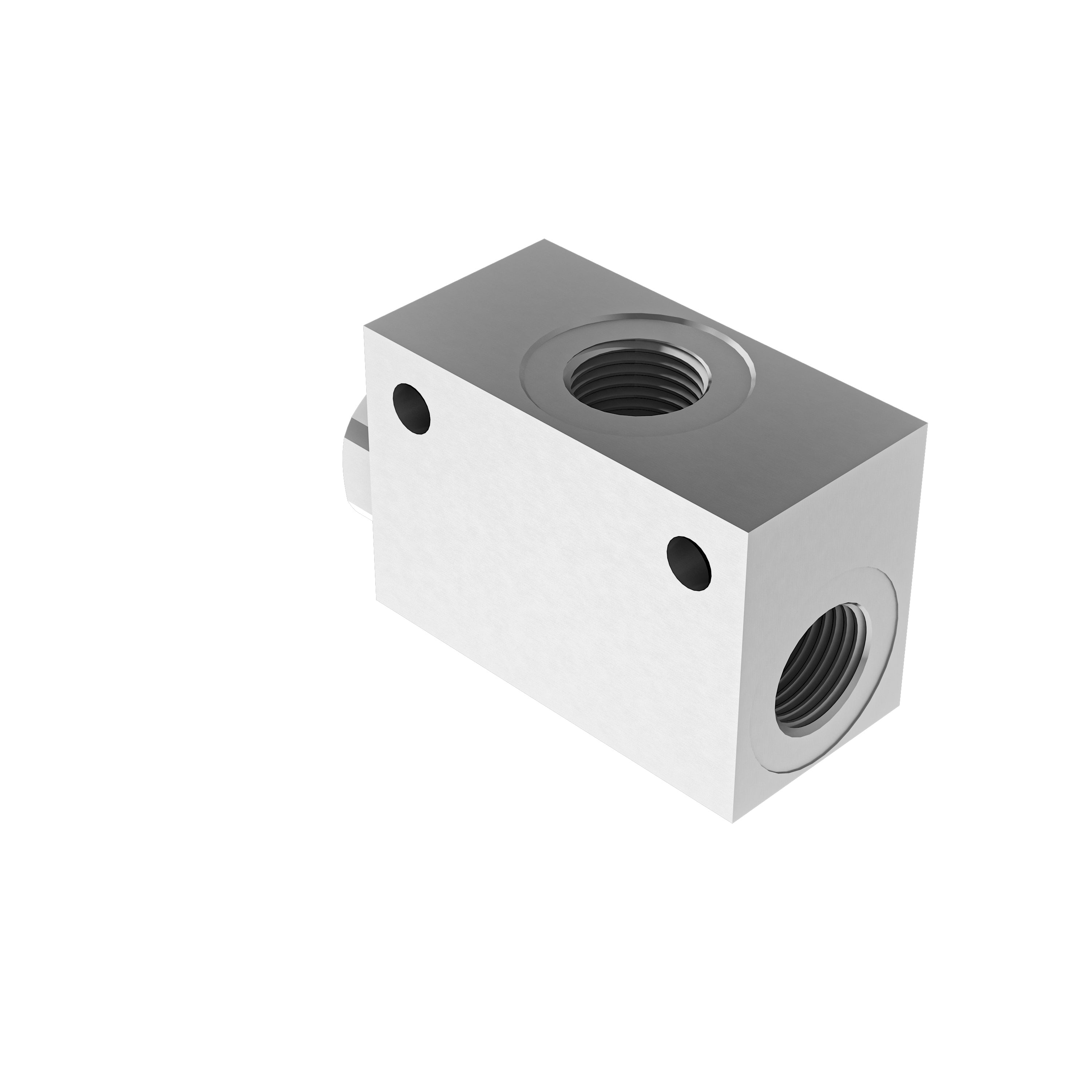

BSPP Shuttle Valve

VSS shuttle valves ensure that when two pressure sources are present, only the higher pressure continues through the system, while the lower pressure is isolated. This makes them ideal for use in safety-critical and efficiency-driven hydraulic applications. Compact, durable, and easy to integrate, they are available in 1/4” and 3/8” BSPP versions, with flow rates up to 45 l/min and working pressures up to 350 bar.

Key Specifications

• Connection sizes: 1/4" BSPP and 3/8" BSPP ports

• Maximum flow rates: 30 l/min (7.9 US gpm) and 45 l/min (12 US gpm)

• Maximum pressure: 350 bar (5075 PSI)

• Construction: solid steel body for durability

• Weight range: 0.29 kg (0.65 lb) to 0.37 kg (0.81 lb), depending on size

Data Sheet
