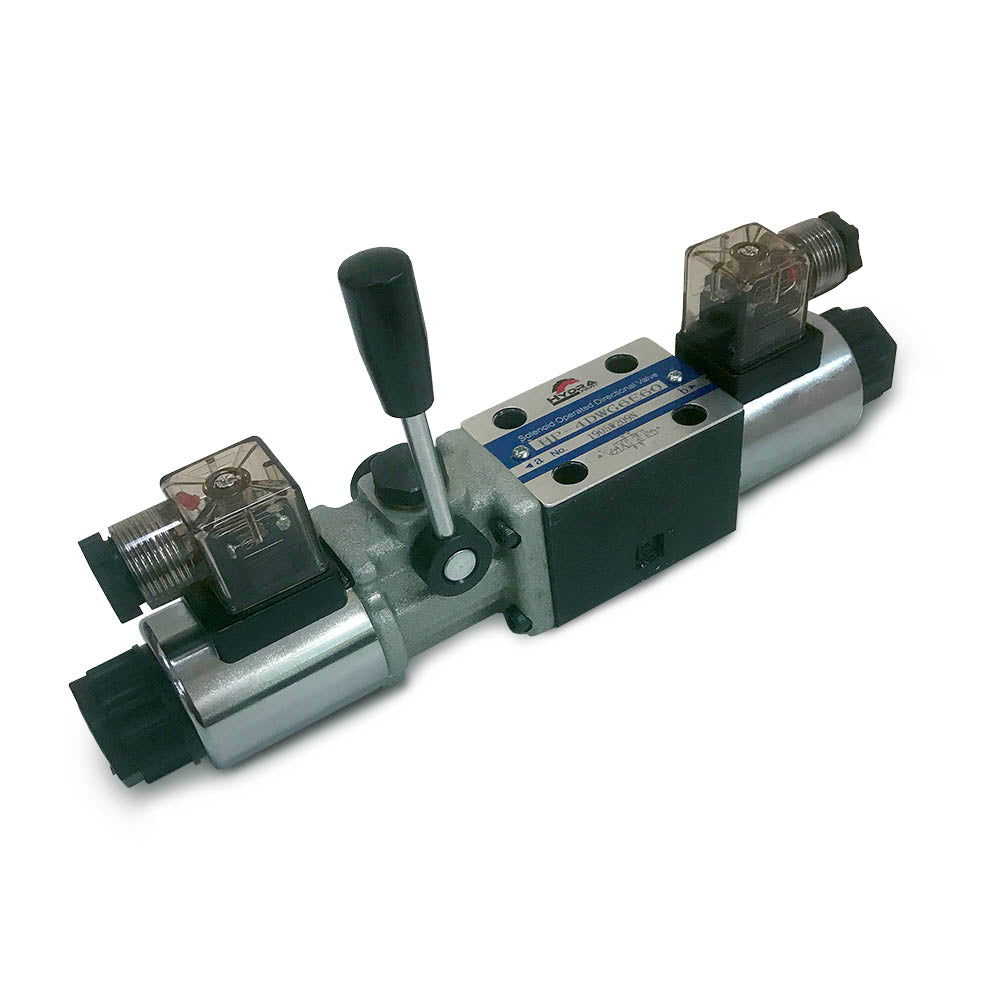

CETOP 3 All Ports Connected with Manual Lever

HP-4-DWG-6-EL-H-60-12VDC

Shipping
Hydra Part CETOP valves are used for a wide variety of mobile and industrial applications.

Configuration

All Ports Connected with Manual Lever

Specifications

  • Nominal Size: NG06
  • Maximum Flow Rate: 60 l/min
  • Maximum Pressure: A,B,P = 315 Bar T = 16 Bar
  • Seal Material: NBR
  • Max Fluid Temperature : -20 degrees Celsius to +70 degrees Celsius.
  • Oil Viscosity: 2.8 to 380 mm2/s
  • Switch Cycles Open: 50 to 60 ms.
  • Switch Cycles Closed: 50 to 70 ms.
  • Switch Frequency 15000 times per hour.
  • Insulation Grade: IP65
  • Double Solenoid: 2.2kg
  • Voltages: 12vDC, 24vDC, 110vAC, 220vAC
  • Manual Override: Standard on all valves
  • Connector Type: DIN Plug (with LED)
