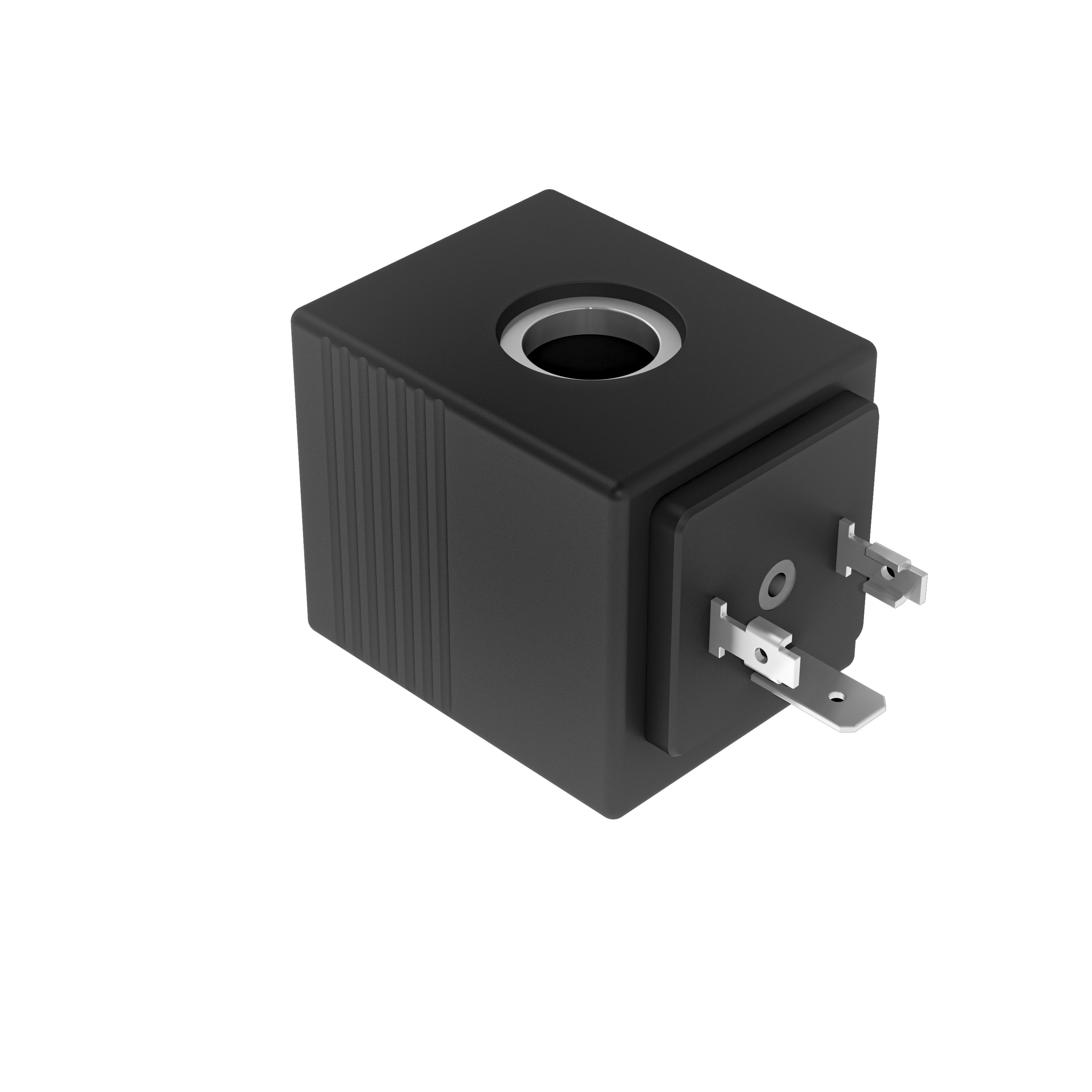

Coil for Solenoid Valve 22W 12vDC

Fluid‑App’s C2212 is a 22‑W solenoid coil engineered for hydraulic valve control. It operates on 12 V dc at about 6.5 Ω resistance and is designed for continuous duty across a –20 °C to +40 °C range. The coil uses high‑temperature class‑H insulation and, when fitted with a DIN 43650 connector, provides IP65 protection against dust and water. Key dimensions include an overall height of ~48 mm with a body height of 38.5 mm, a width of 44.5 mm, thickness of 36 mm and a central bore of 13.2 mm. The coil is compact and light at around 0.21 kg and should be secured with 2 N·m of tightening torque.
