DIN 3/8" BSPP Double Acting Pilot Check Valve With Adjustable Banjo 12mm

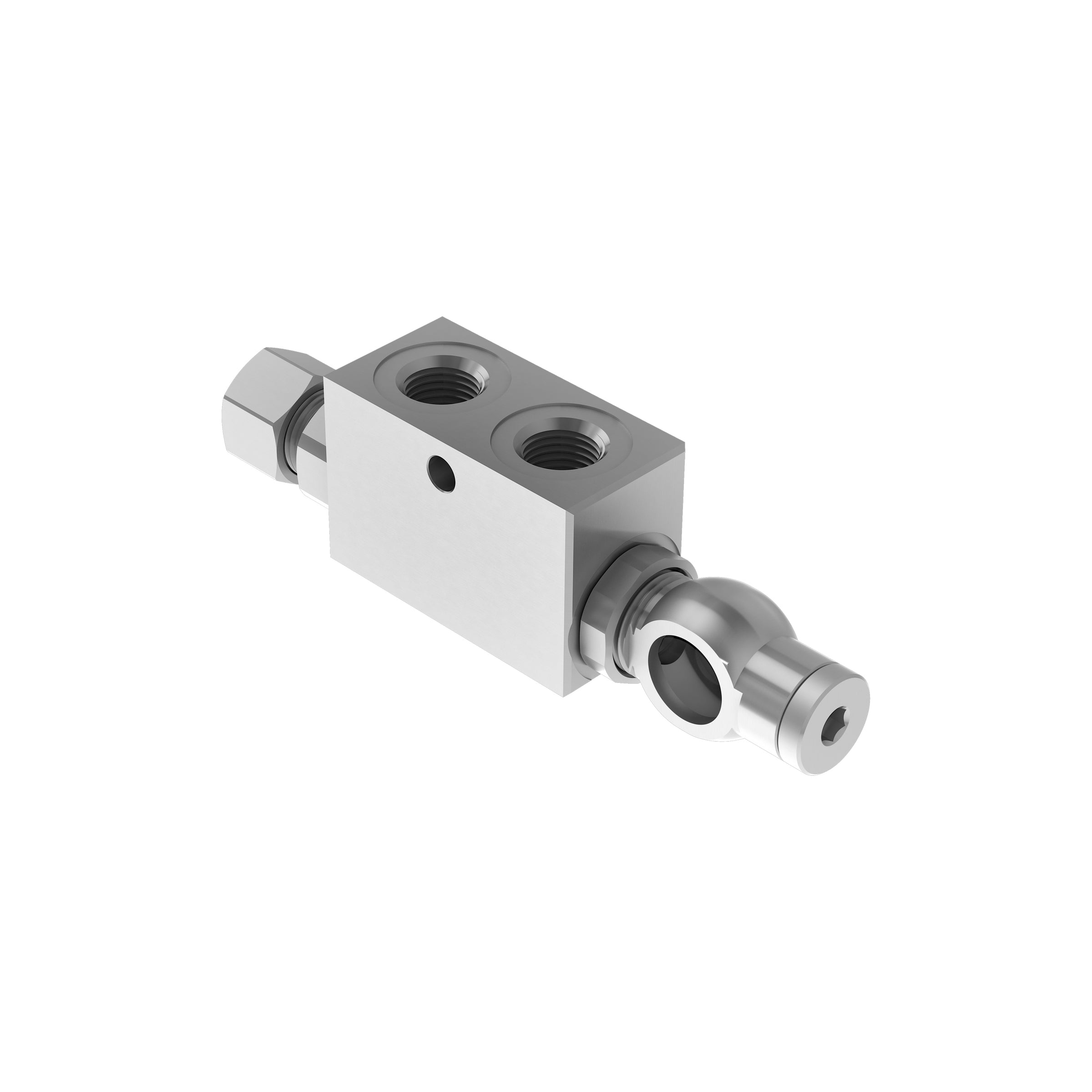

The VBD2BG is a double‑acting pilot check valve with an adjustable banjo, designed to lock hydraulic cylinders in position and prevent load creep. It has 3⁄8 BSPP ports and handles flows up to about 35 l/min. The VBDG series is rated for high working pressures (around 350 bar), with a pilot ratio of about 1:5.5 and a cracking pressure near 4.5 bar. The valve’s compact steel body is roughly 111 mm long, 35 mm high, and 40 mm wide, with port passages sized for 12 mm and 17 mm. It is intended for mounting between a cylinder and pipe and allows adjustment of outlet orientation via its banjo bolt.

Five key specifications

• Port size: 3⁄8 BSPP threads.

• Flow capacity: Rated for a maximum flow of about 35 l/min (≈9.2 US gpm).

• Pressure and pilot ratio: Series rating around 350 bar (≈5075 psi) with a pilot ratio of roughly 1:5.5 and a cracking pressure around 4.5 bar (≈65 psi).

• Dimensions: Approximate overall length 111 mm (4.37 in), body height ~35 mm (1.39 in), width ~40 mm (1.57 in), with 63 mm central body length and 31.5 mm port spacing.

• Construction: Steel‑bodied DIN 2353 pilot check valve with adjustable banjo; weight for comparable size is around 0.67 kg (1.47 lb).
