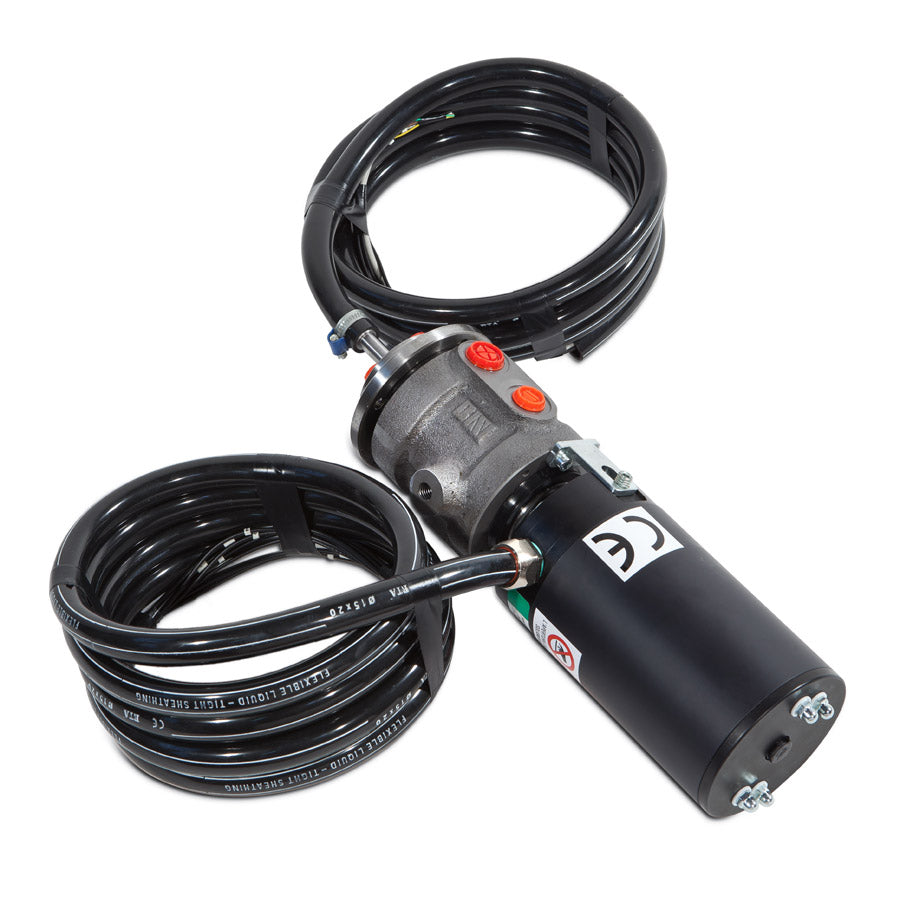

Electrical Swivel (CE Series)

Shipping
  • Rotation speed 0-15 RPM (Higher speeds on request)
  • Temperature range -200C/+600C
  • IP Rating IP55/65
  • Rotation Reversible CW / CCW
  • Rated Voltage 500V AC, 220 V DC
  • Intensity of Current mA-80 A
  • Contact Resistance Ring- Brush <20mΩ
  • Ring Material Bronze with silver plated treatment for the power lines and gliding for signal lines
  • Bruch Holder Double A-arm (2 brushes per ring)
  • Brush Material Metal carbon for power lines and silver graphite for signal lines
  • Cable Outlet Axial for rings, radial for brushes
  • Length 3m from both sides, different lengths on request.
  • Cable cross section from 0.75mm2 to 4mm2 depending on the current intensity required.
  • Shielded cables for signals Available with gold plated contacts for CANBUS type signal transmissions
