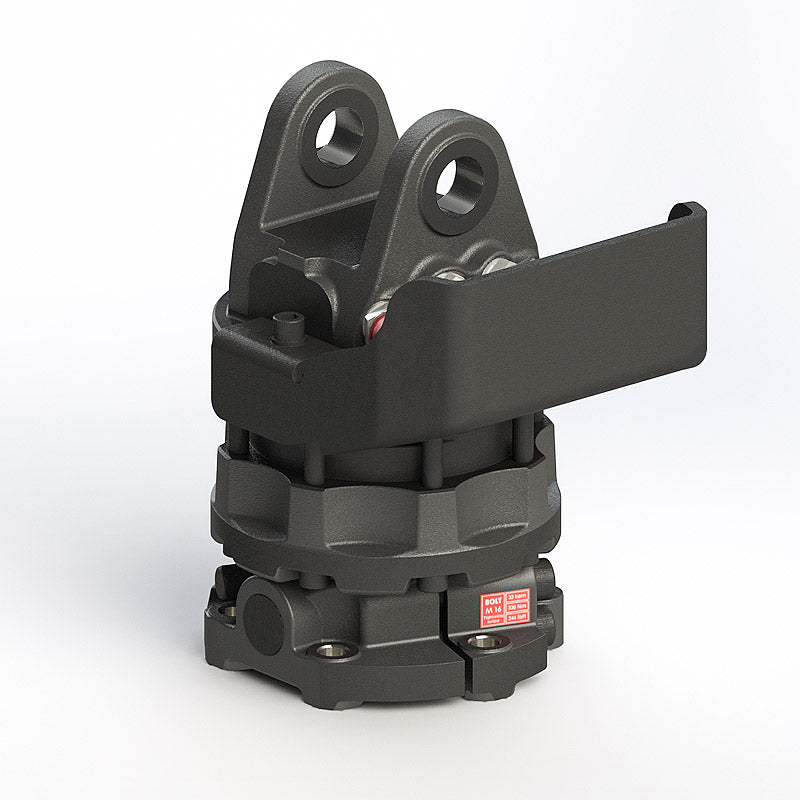

GR603DBX Rotator

Please Call 0161 480 0869 for Advice & Quotation


Lightweight cost-effective solution with added hose protection suitable for all Terrain, small agricultural and forestry vehicles.

    Rotation Unlimited
    Max. axial load static 60 kN (13491 lbf)
    Max. axial load dynamic 30 Kn (6745 lbf)
    Torque @25MPa (3625psi) 1800 Nm (1328 lb ft)
    Rec. oilflow 25 l/min
    Weight 46 kg
    Upper connection L 80.5 mm (3.17 in)
    Upper connection D 35 mm (1.38 in)
    Warranty 2 years

    Data Sheet 2
