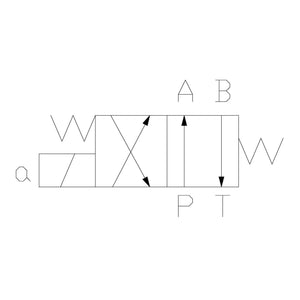

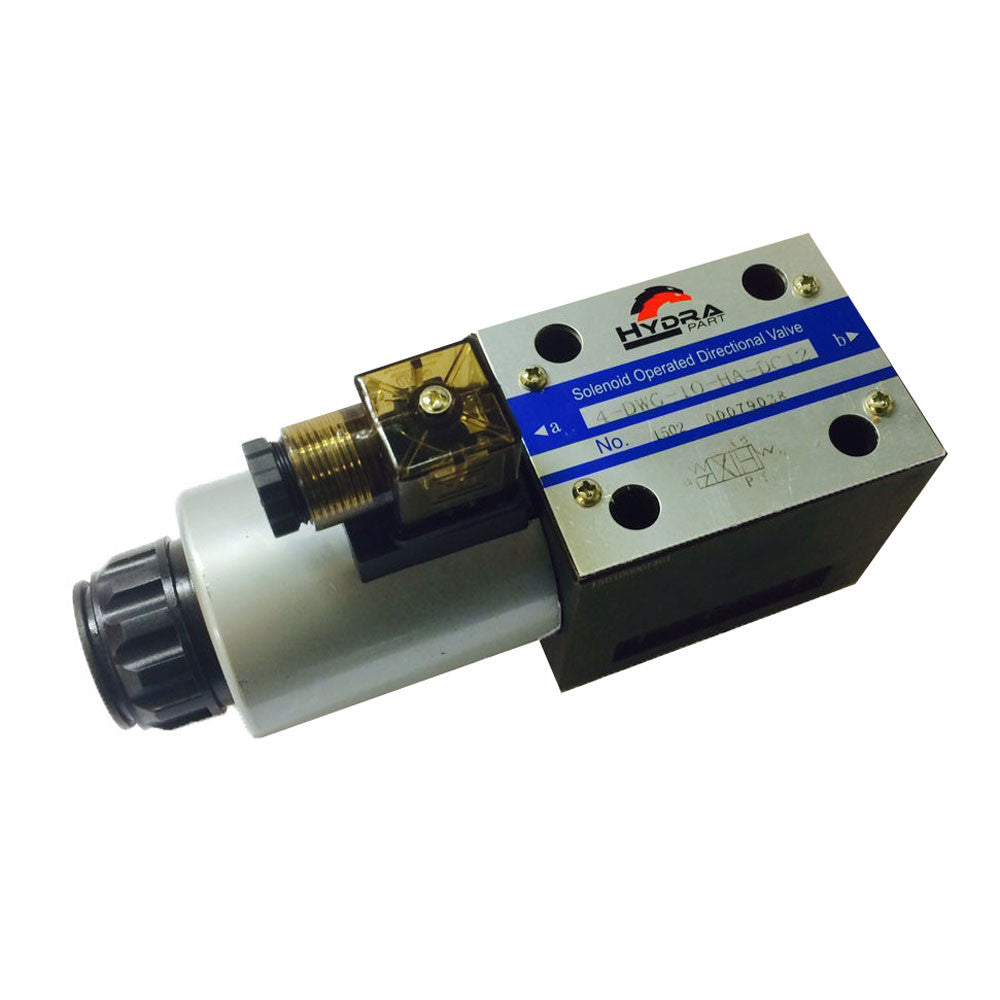

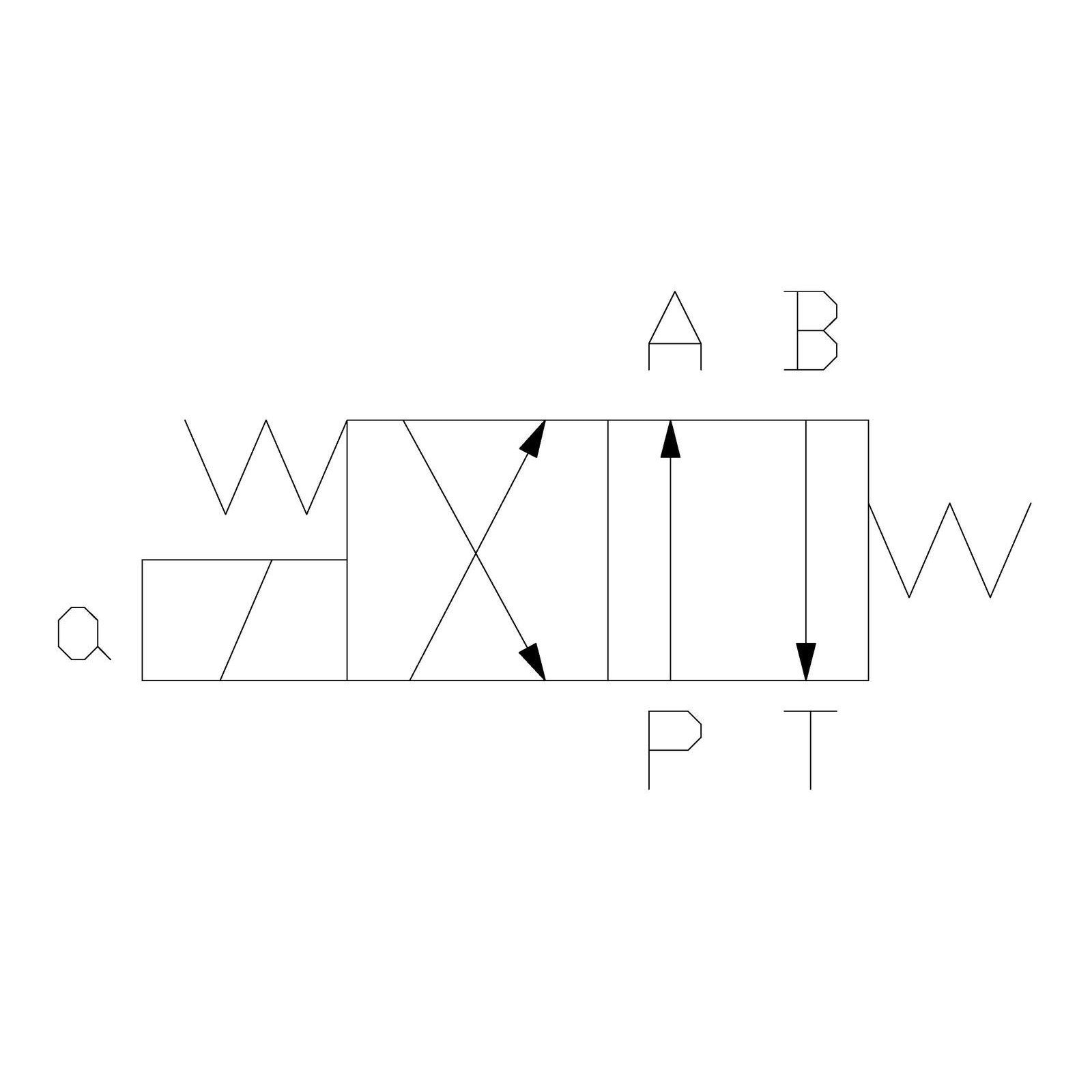

CETOP 5 Single Solenoid Control Valve NG06 - P to A & B to T (X - 11)

HP-4-DWG-10-D-12vDC

21 In Stock

For use in a range of mobile and industrial applications

Technical Specifications

  • Nominal Size: NG10
  • Maximum Flow Rate: 120 l/min
  • Maximum Pressure: A,B,P = 315 Bar T = 16 Bar
  • Seal Material: NBR
  • Max Fluid Temperature: 20 degrees Celsius to +70 degrees Celsius.
  • Oil Viscosity: - 2.8 to 380 mm2/s
  • Switch Cycles Open: 50 to 60 ms.
  • Switch Cycles Closed: 50 to 70 ms.
  • Switch Frequency 15000 times per hour.
  • Insulation Grade: IP65
  • Single Solenoid: 3.2kg
  • Voltages: 12VDC, 24VDC,110V/AC 50HZ, 220V/AC 50HZ
  • Manual Override: Standard on all valves
  • Connector Type: DIN Plug (with LED)
