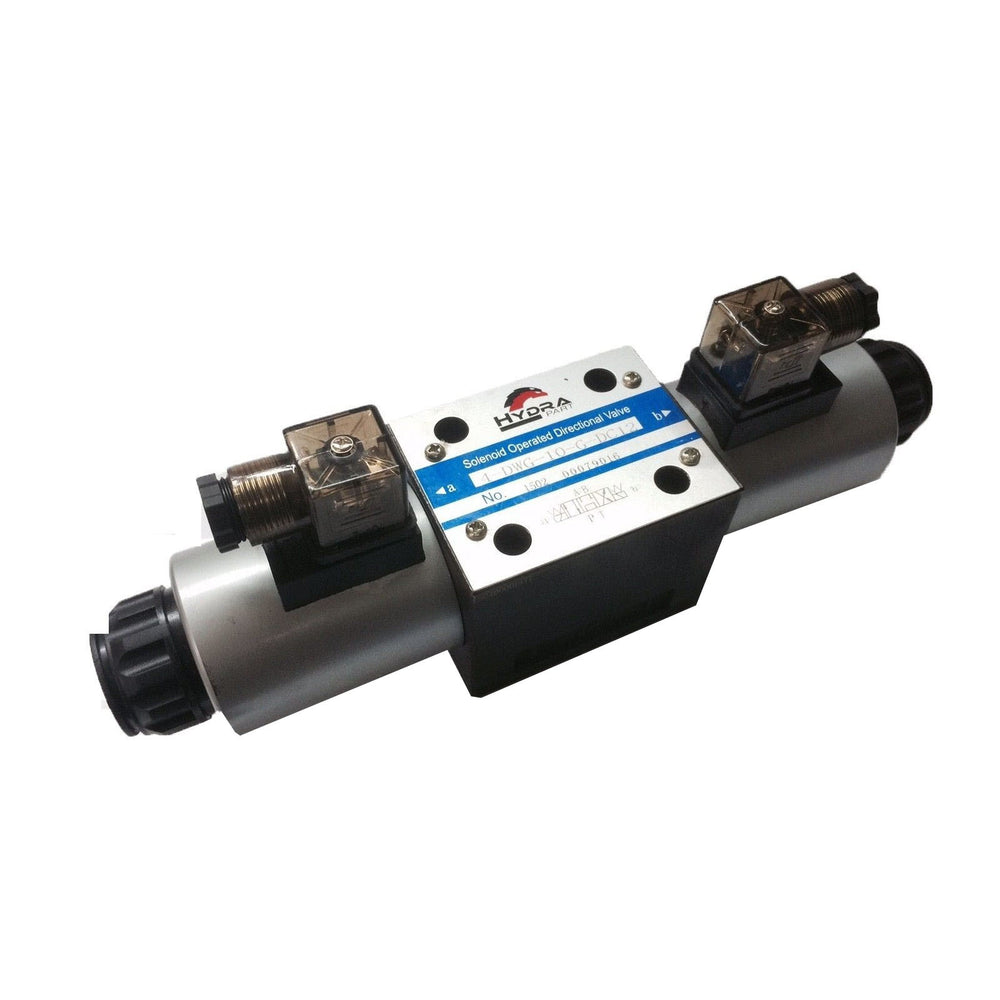

CETOP 5 Double Solenoid Control Valve NG10, All Ports Open

HP-4-DWG-10-H-12vDC

Shipping

Hydra Part CETOP valves are used for a wide variety of mobile and industrial applications. The inter-changeable coils control the flow of oil through various port configurations.

Configuration

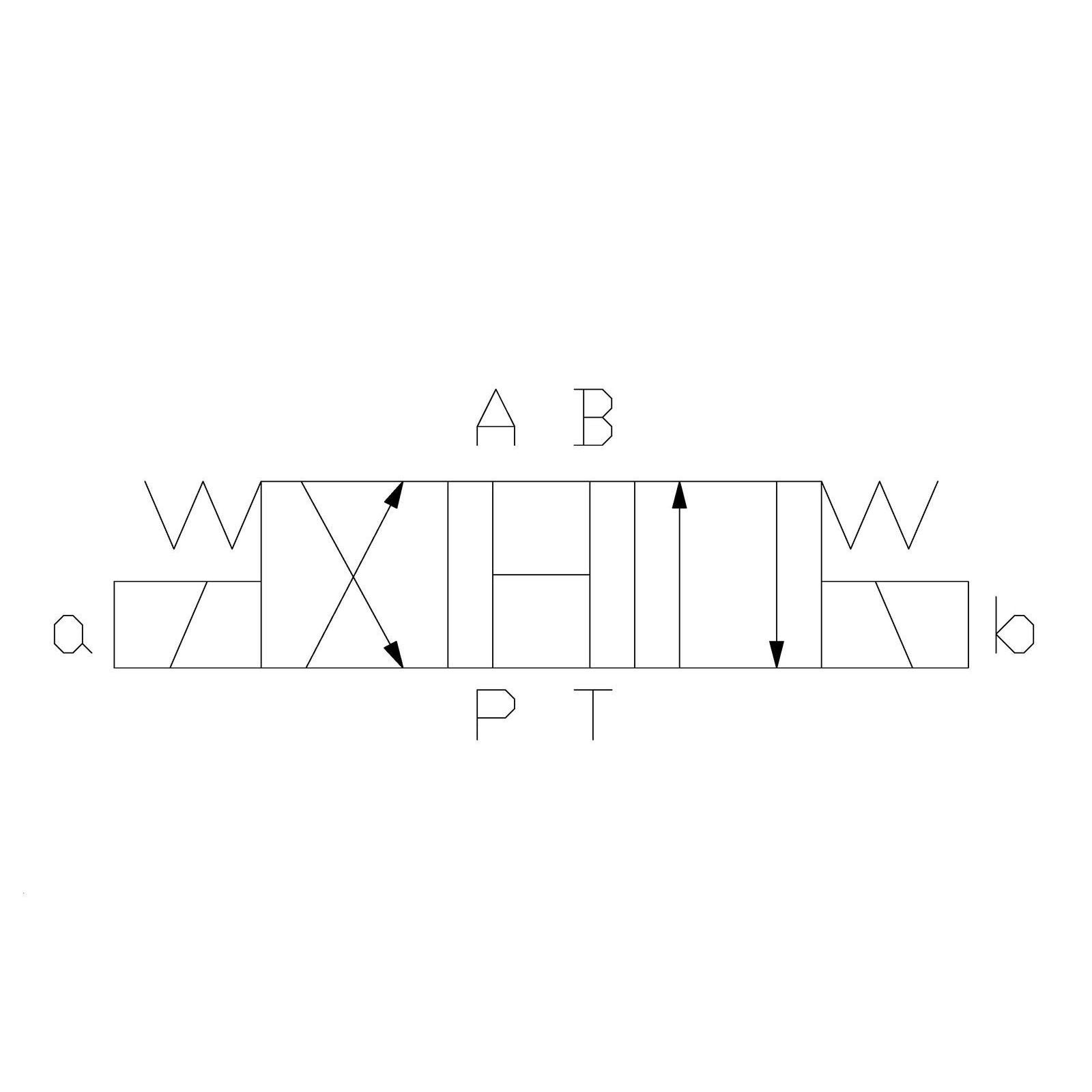

All Ports Open

Technical Specifications

  • Nominal Size: NG10
  • Maximum Flow Rate: 120 l/min
  • Maximum Pressure: A,B,P = 315 Bar T = 16 Bar
  • Seal Material: NBR
  • Max Fluid Temperature: 20 degrees Celsius to +70 degrees Celsius.
  • Oil Viscosity: 2.8 to 380 mm2/s
  • Switch Cycles Open: 50 to 60 ms.
  • Switch Cycles Closed: 50 to 70 ms.
  • Switch Frequency 15000 times per hour.
  • Insulation Grade: IP65
  • Double Solenoid: 6.4kg
  • Voltages: 12VDC, 24VDC,110V/AC 50HZ, 220V/AC 50HZ
  • Manual Override: Standard on all valves
  • Connector Type: DIN Plug (with LED)
