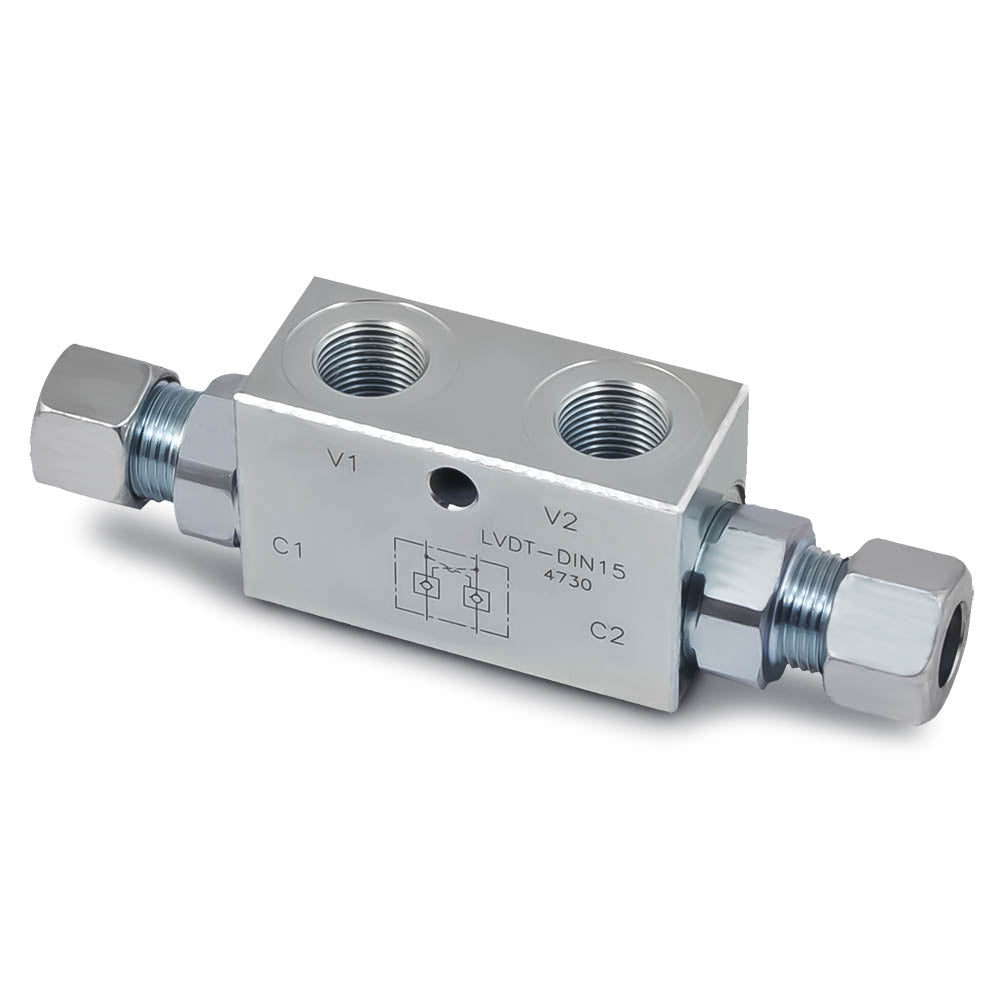

HP-LVDT-DIN Double Pilot Check Valves

HP-LVDT-DIN15

Shipping

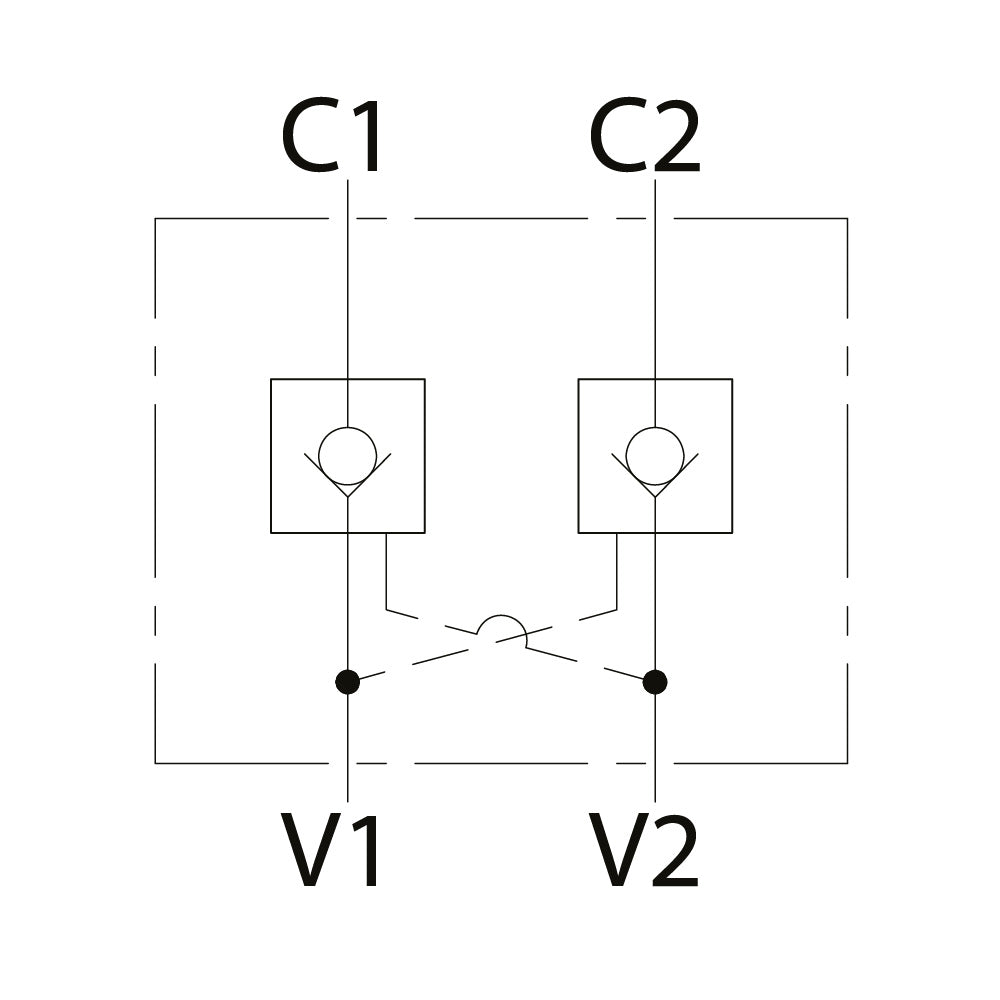

Connect the actuator ports to be controlled to C1 and C2 and connect the pressure flow to V1 and V2. When pressure is applied to port V2 the valve allows flow from port C1 to V1 and likewise when pressure is applied to port V1 it allows flow from port C2 to V2.

Data Sheet 2
DATA SHEET
