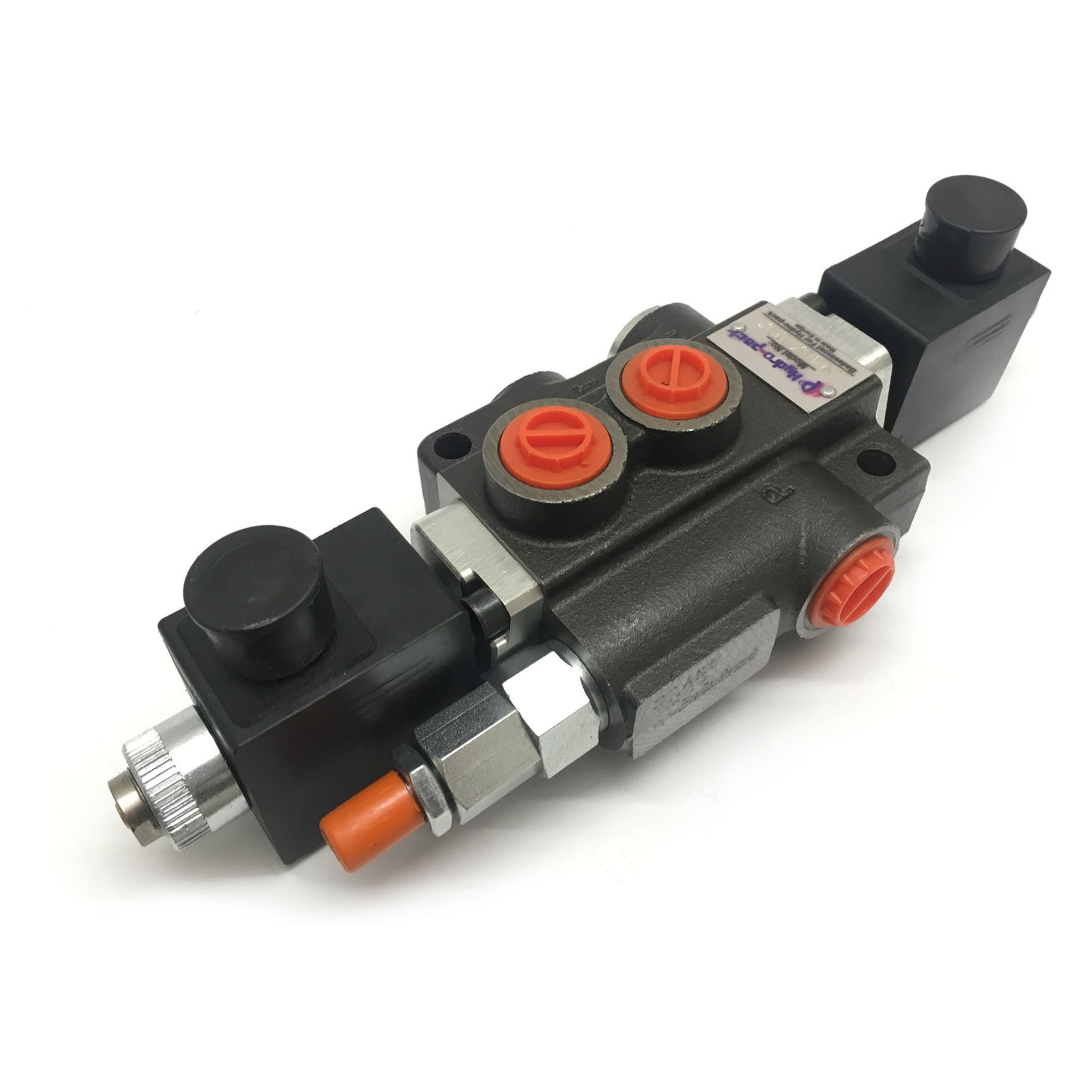

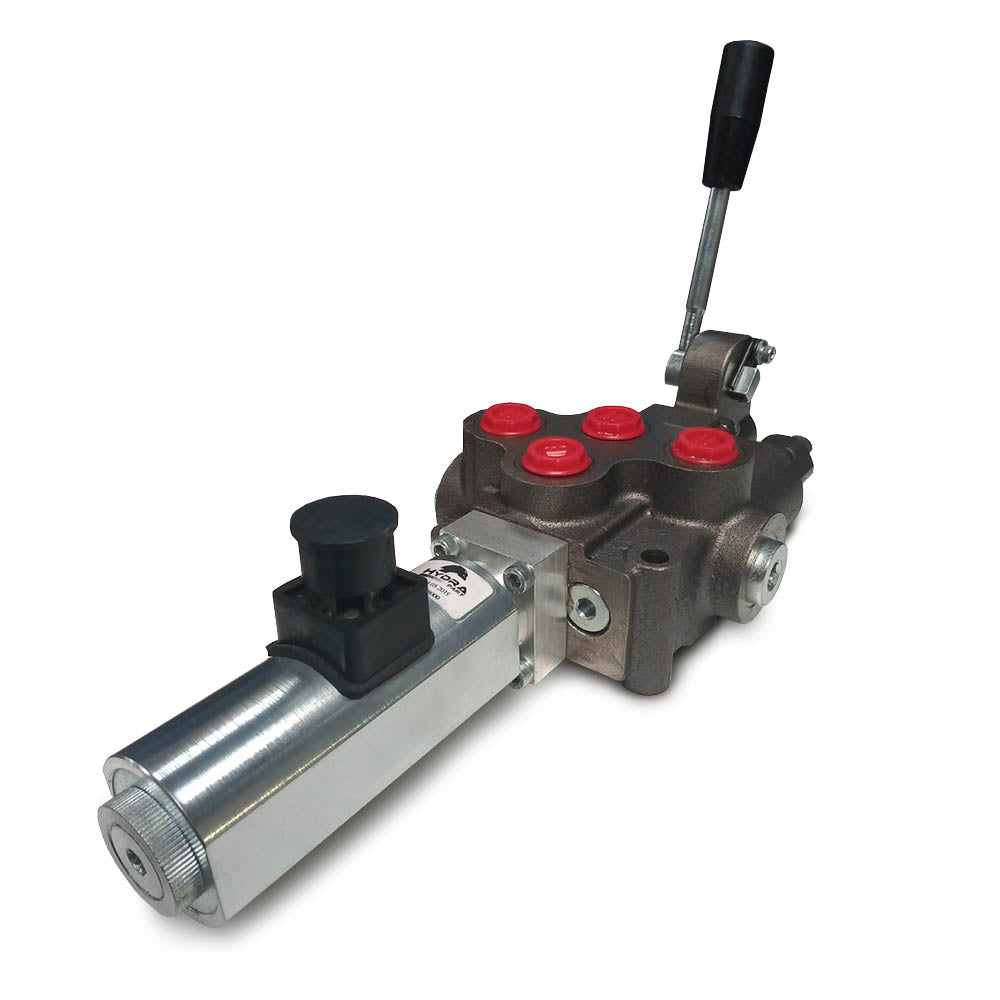

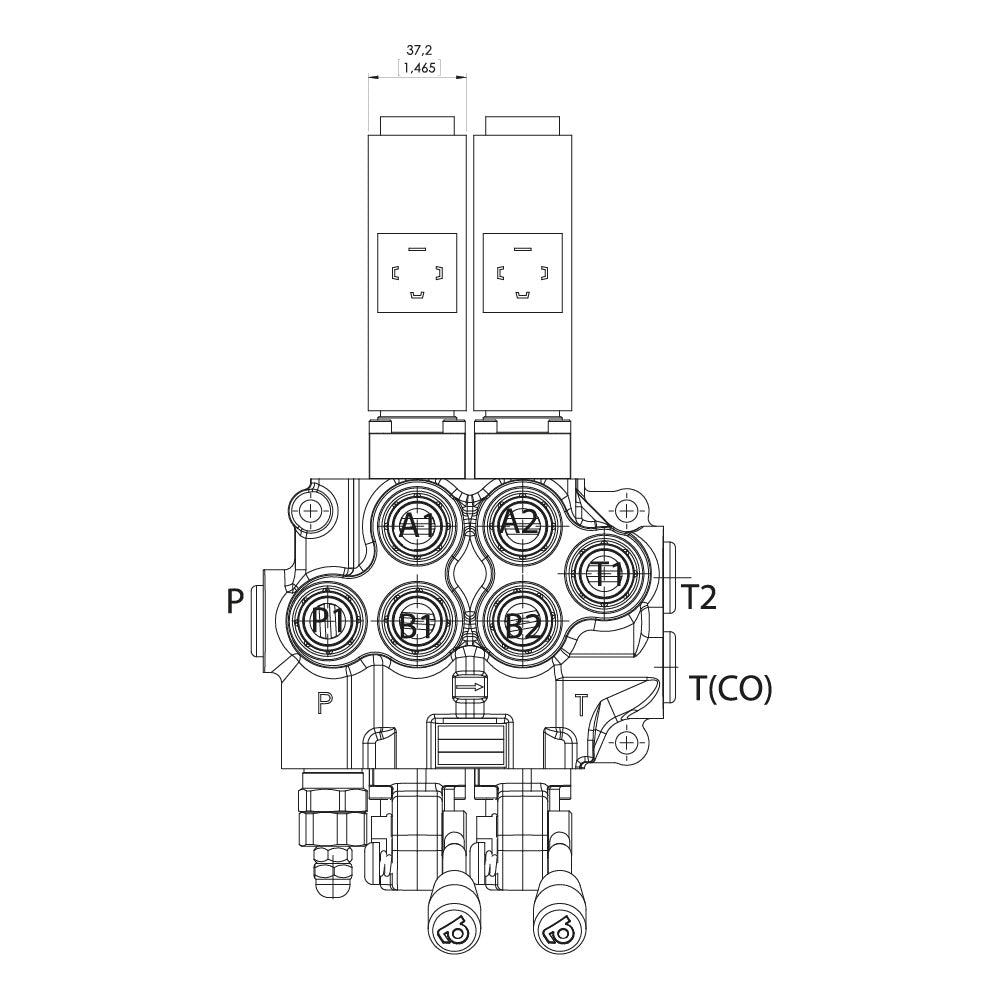

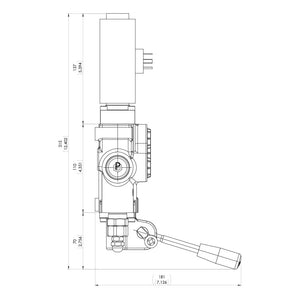

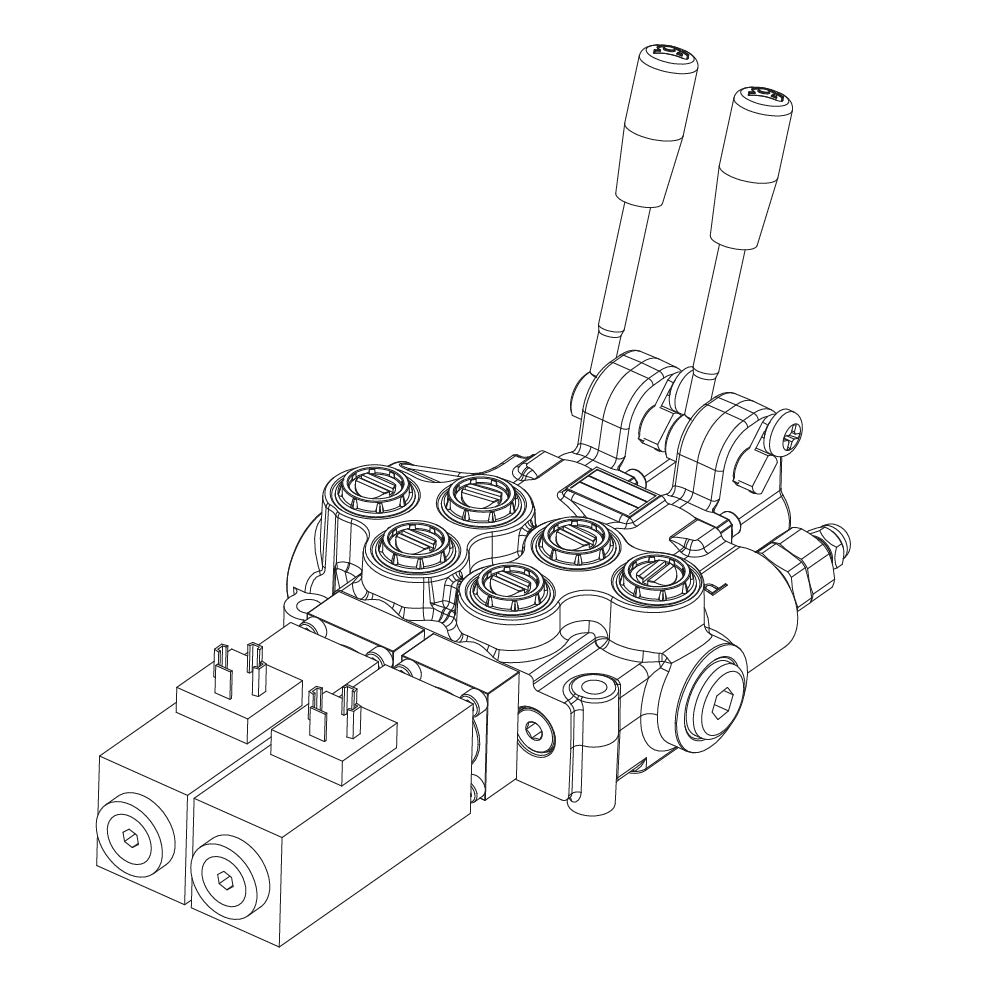

HP50 1/2" Solenoid & Lever Control Valves 50LPM 12/24VDC

HP-501BST26-12

19 In Stock
NOTE: These valves can be supplied with OR without 4 Pin DIN Connector Plugs. Please make your selection above
Data Sheet 2 Data Sheet 2
HP-50 Valve DATA SHEET 4 PIN Solenoid Connector Data Sheet
Description

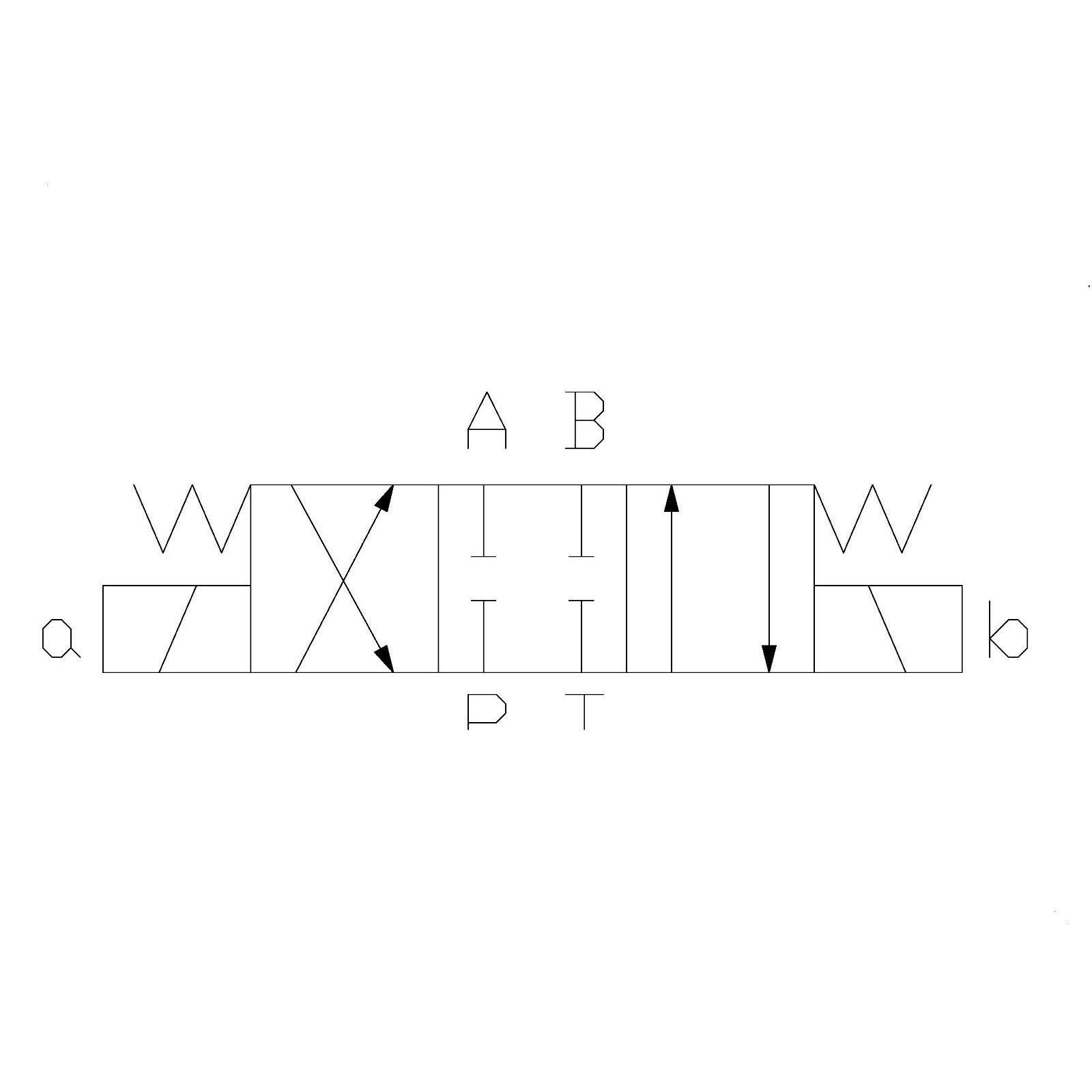

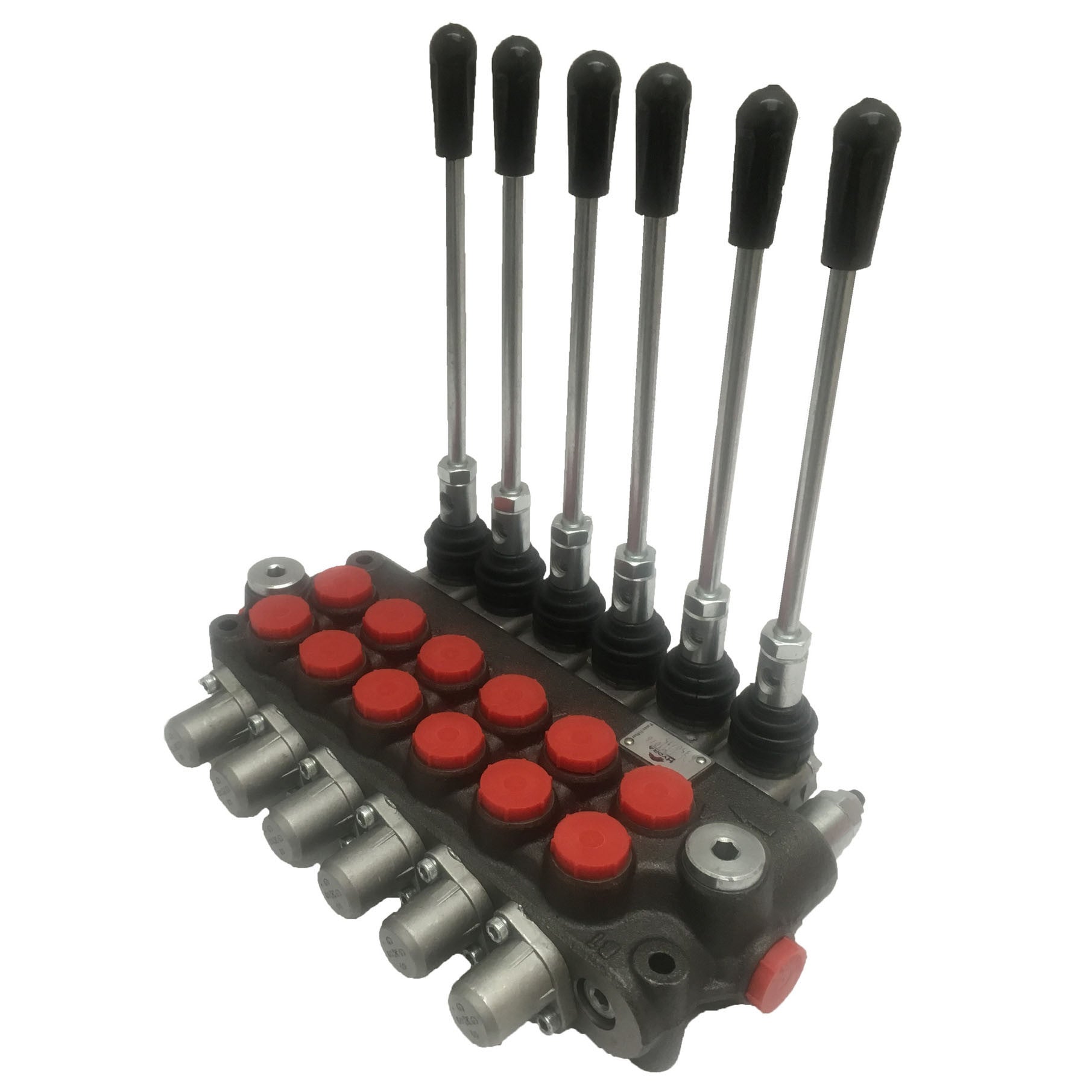

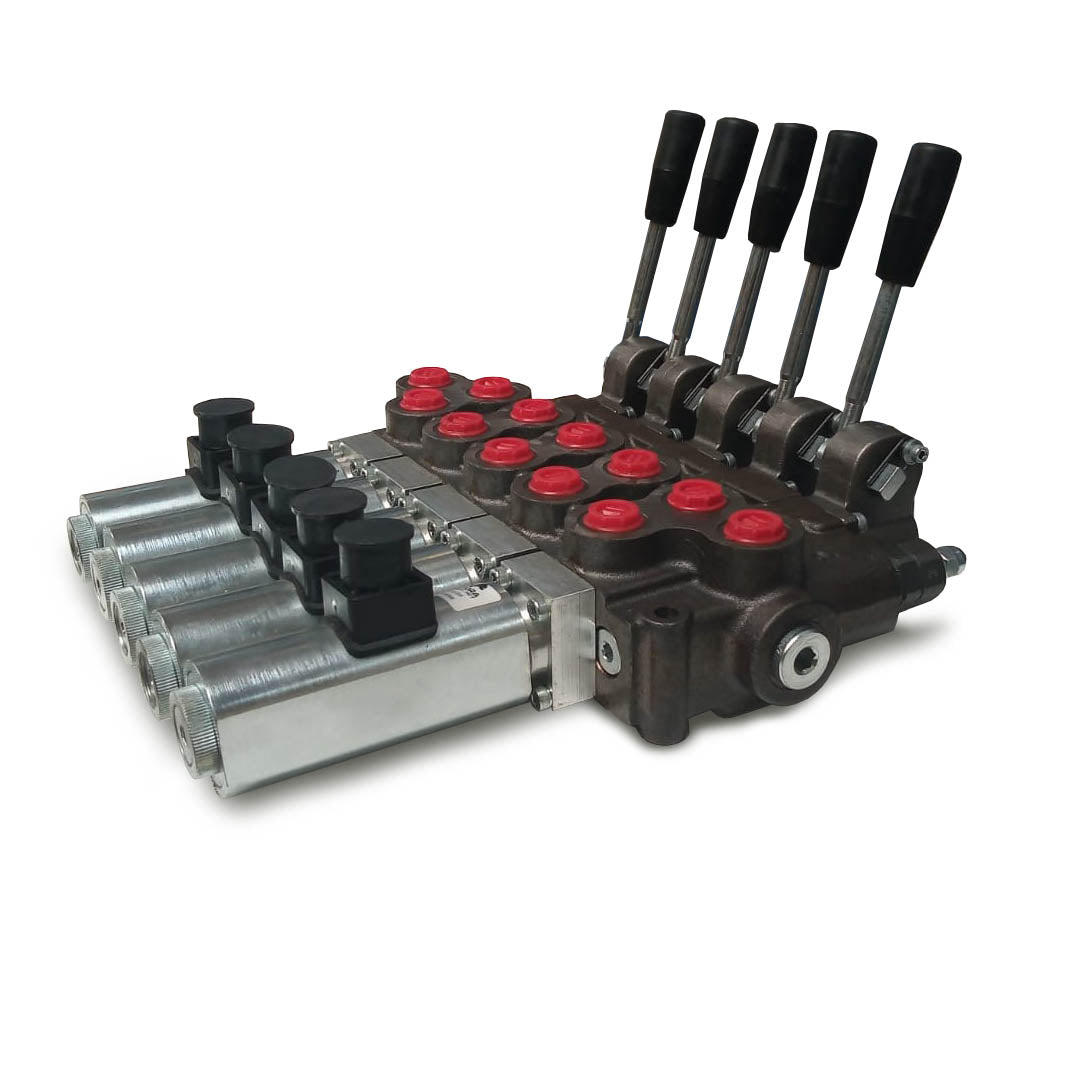

Monoblock direct acting solenoid & lever operated control valves offer perfect choice whether you are designing a new system or just trying to get more out of your existing system. With up to 6 sections in a mono block housings, these valves can meet the specific needs of your application and hydraulic systems. Fitted with a double acting spool as standard.

PLEASE CALL FOR BESPOKE CONFIGURATIONS

Specification
  • PORT SIZE A/B = 1/2" BSP
  • CAST IRON BODY
  • MAX WORKING PRESSURE - 350 BAR
  • MAX FLOW RATE = 50 LPM
  • OPERATING TEMPERATURE BETWEEN -40℃ TO +60℃
  • SPOOL LEAKAGE AT 100 BAR = 4cc - 9cc
Accessories
  • Valve is equipped with an adjustable main relief valve.

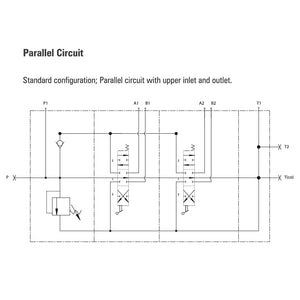

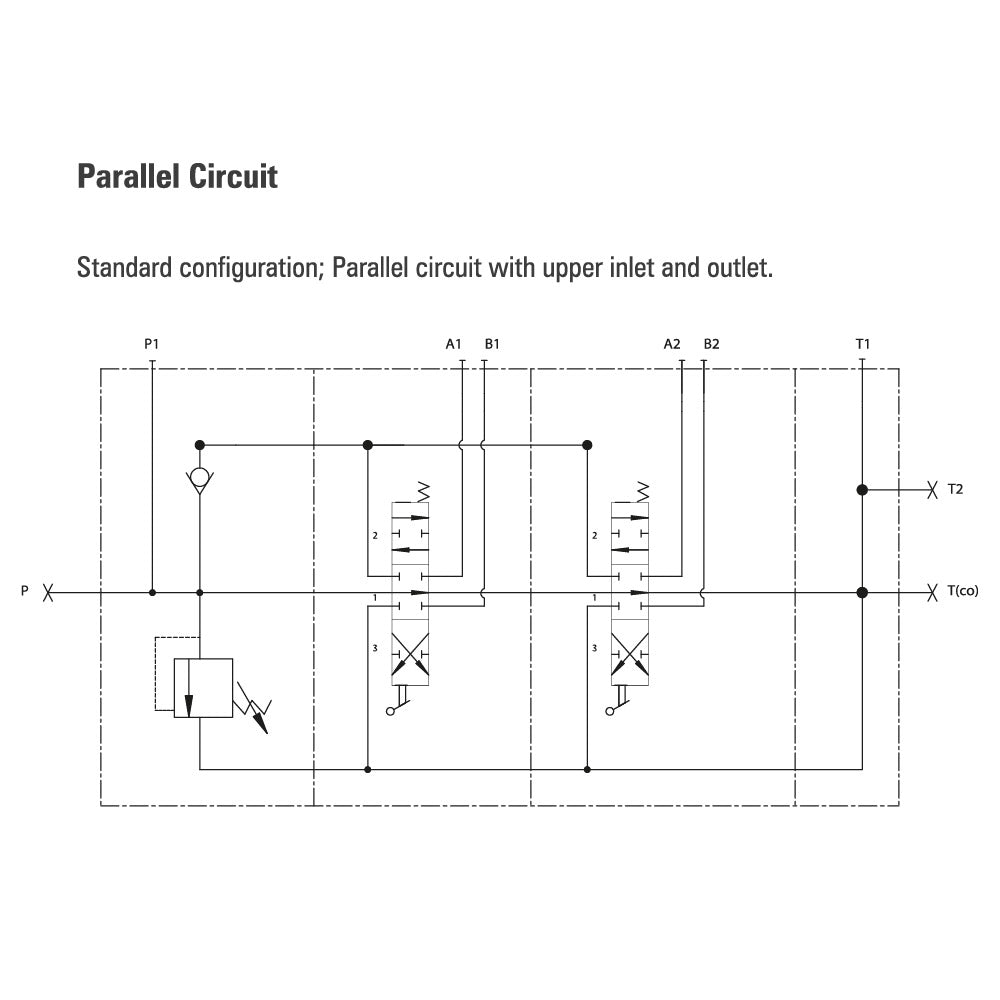

  • Available in parallel (in standard) and series circuit.
  • Load Hold Check valve.
  • Wide range of spool options.
  • interchangeable 16mm Spools.
  • Carry-over and closed canter option.

Controls

Manual, Pneumatic, Electro- Pneumatic, Hydraulic, Electro-Hydraulic, Solenoid, Inlet Proportional, Mechanical Joystick and Remote Cable Control.
