SAE10/2 Solenoid Valve Cartridge - Pilot Operated - 70 L/Min - 350bar - Checked in BOTH Directions

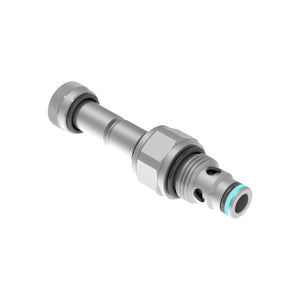

The E3S28 is a screw‑in solenoid valve for SAE 10/2 cavities that provides two‑way, two‑position poppet operation. Available in normally closed, normally closed with emergency manual override and normally open versions, it handles up to 70 L/min flow at pressures up to 350 bar. The cartridge measures roughly 67 mm long with a 32 mm threaded nose and is installed using a 27‑mm hex; an O‑ring and nut provide sealing. Installation torque is about 40 Nm, with the locknut requiring only 2 Nm, and the standard model weighs about 0.19 kg. The valve uses a 22‑W C22 coil designed for continuous duty in temperatures from −20 °C to +40 °C.

Key specifications for E3S28:

• Hydraulic rating: 2‑way poppet valve rated for 70 L/min and 350 bar.

• Thread/cavity: SAE 10/2 screw‑in cartridge with 7/8‑14 UNF thread; overall length ~67 mm with a 32 mm nose and 27‑mm hex.

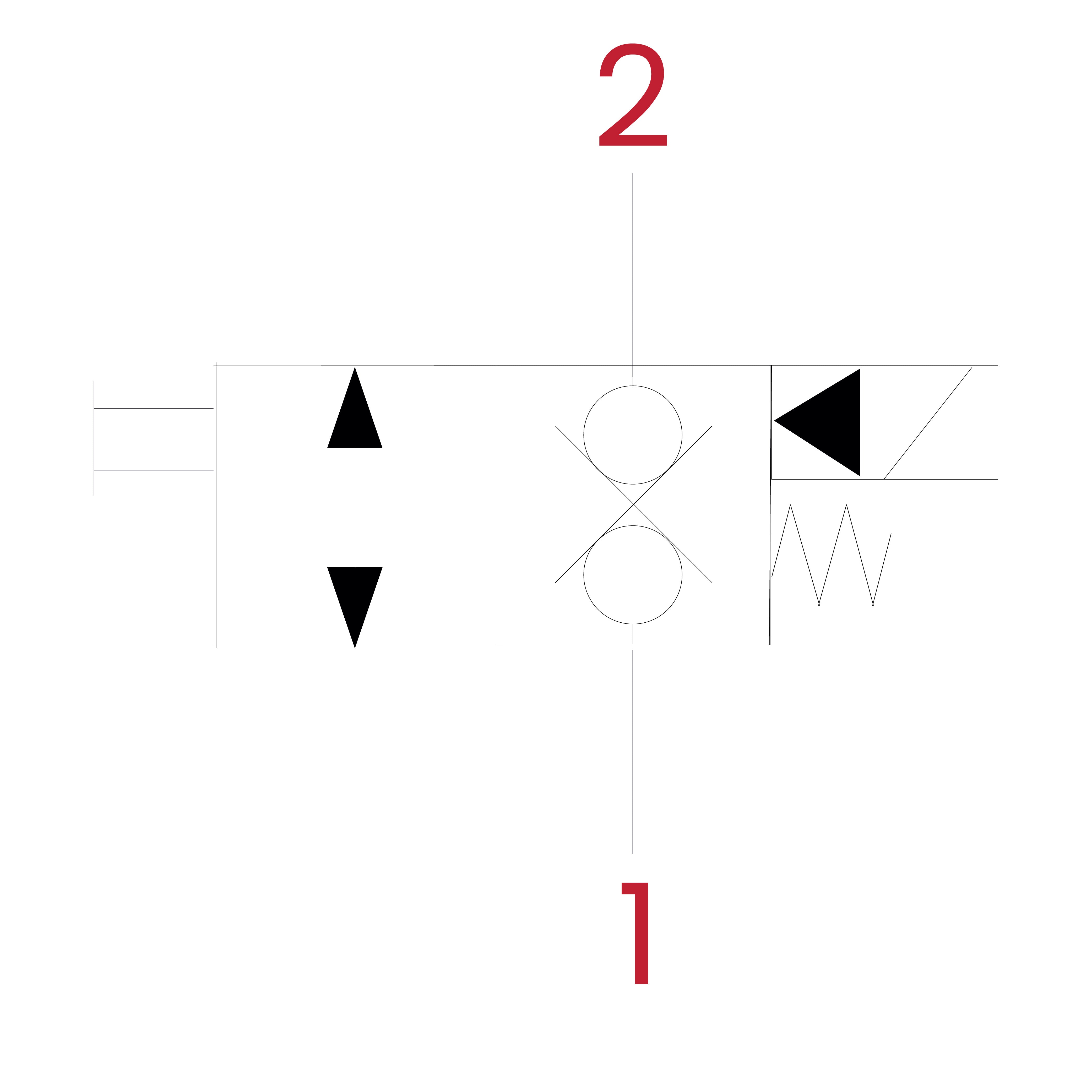

• Variants: E3S28C (normally closed), E3S28E (normally closed with manual override) and E3S28A (normally open).

• Installation & weight: Cartridge torque ~40 Nm; locknut torque ~2 Nm; standard weight ~0.19 kg.

• Electrical: 22‑W C22 coil, class‑H insulation; operates on DC power ±10 % and allows continuous duty from −20 °C to +40 °C.
