TEC 3 Phase Electric Motors - 2 Pole, 3000rpm (IE2 High Efficiency)

Manufacturer: TEC

Product Code: TECA-561-2-B3

Shipping Rates

excluding VAT

Please Call 0844 770 7969 for Advice

The TECA 2 Pole, three phase electric motor aluminium series, from 0.06kW to 30.0kW suit a wide range of industrial and commercial applications with the following characteristics:

  • High quality
  • Rugged and reliable
  • Light weight aluminium construction
  • Suit wet and dusty environments
  • Dual European voltage
  • 50/60 Hz rated
  • Inverter drive rated
  • Multi mount up to 37kw
  • Efficiency IE2 rated
  • Manufactured to the latest mechanical and electrical standards

Proven applications include, air conditioning, hydraulic, fans, pumps, conveyors, crushers, packaging equipment, and agricultural.

TECA three phase electric motor features include:

  • IE2 efficiency
  • Euro voltage: up to 3kW 230/400V; 4kW and above 400/690V
  • Speeds available 3000rpm (2pole), 1500rpm (4pole)
  • Dual 50/60Hz rated

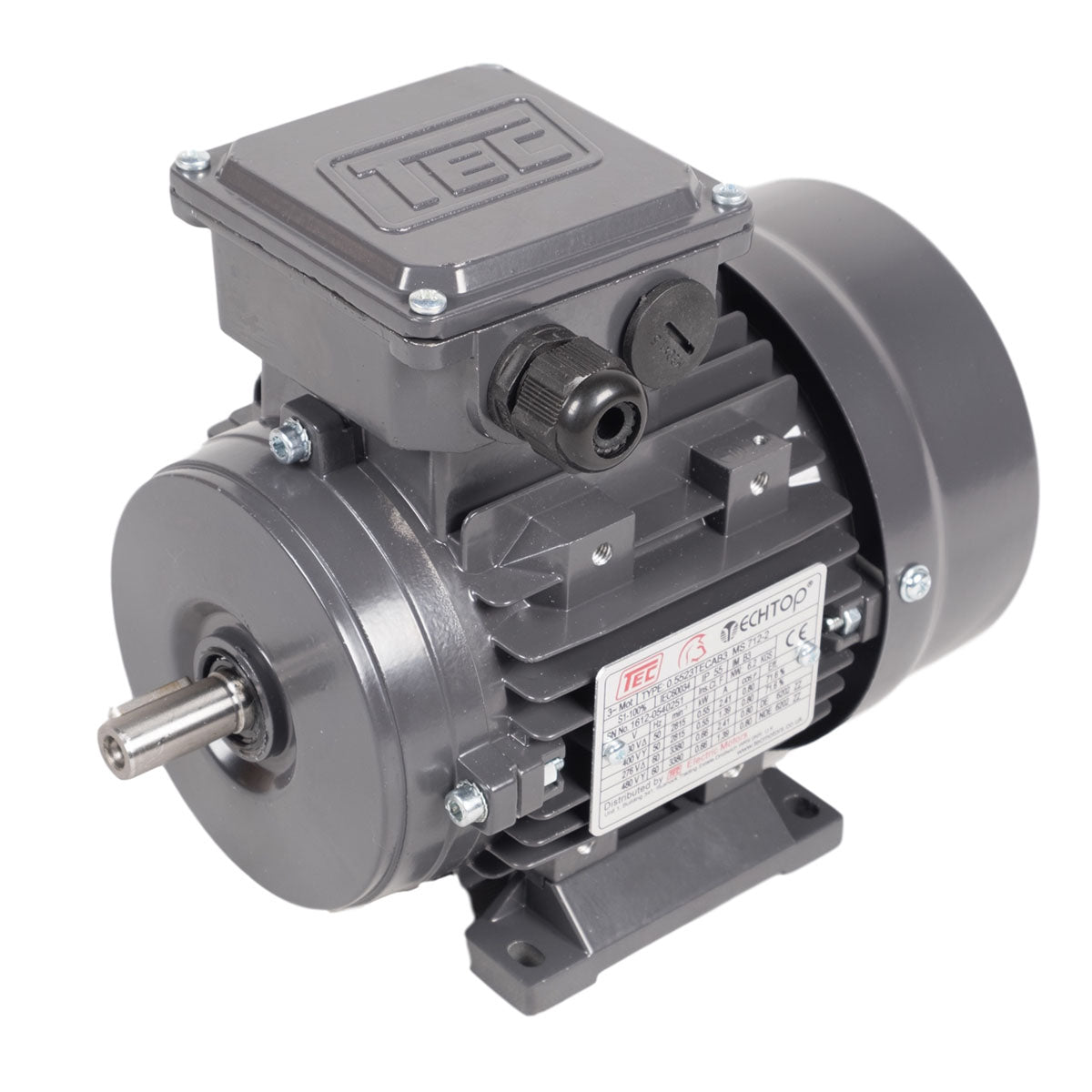

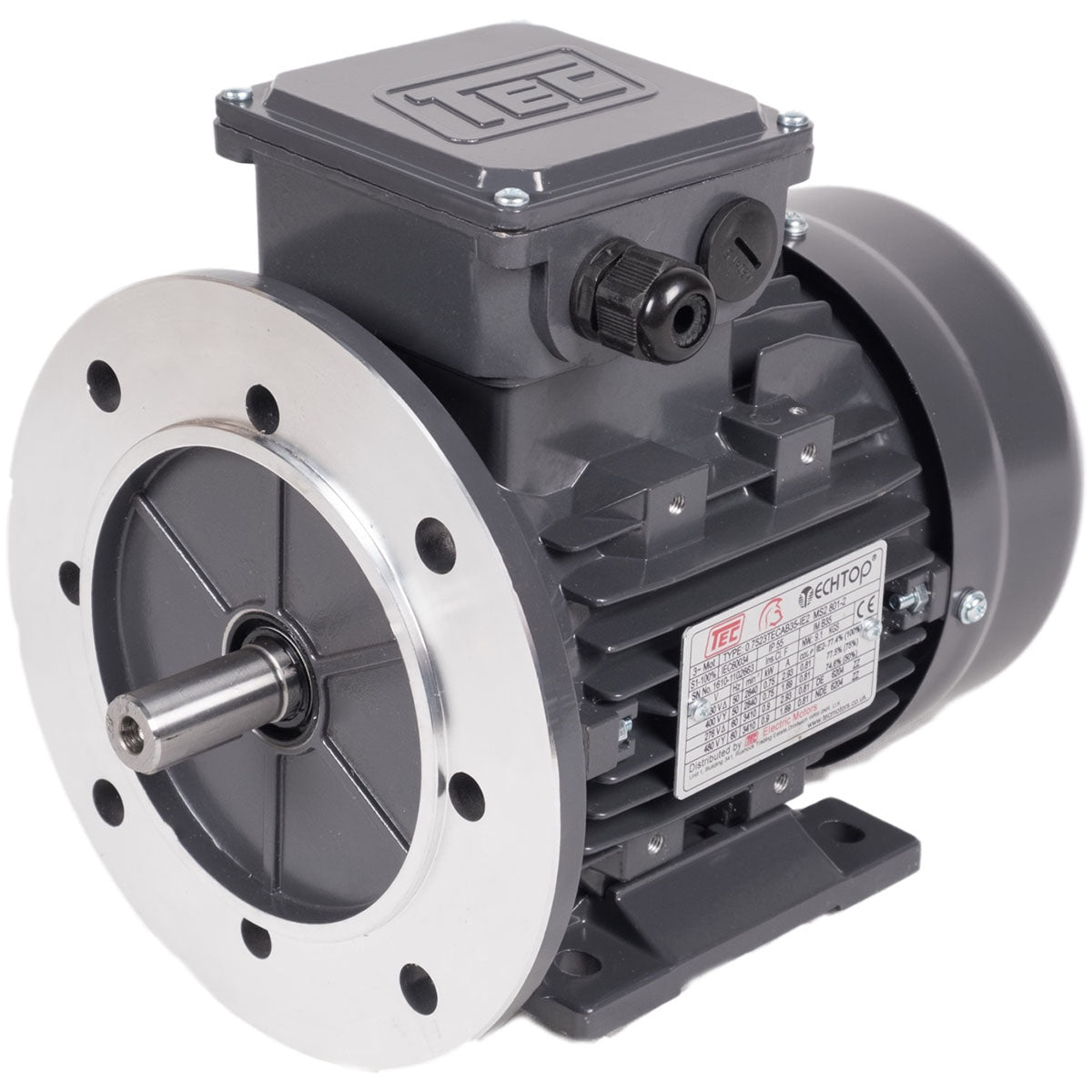

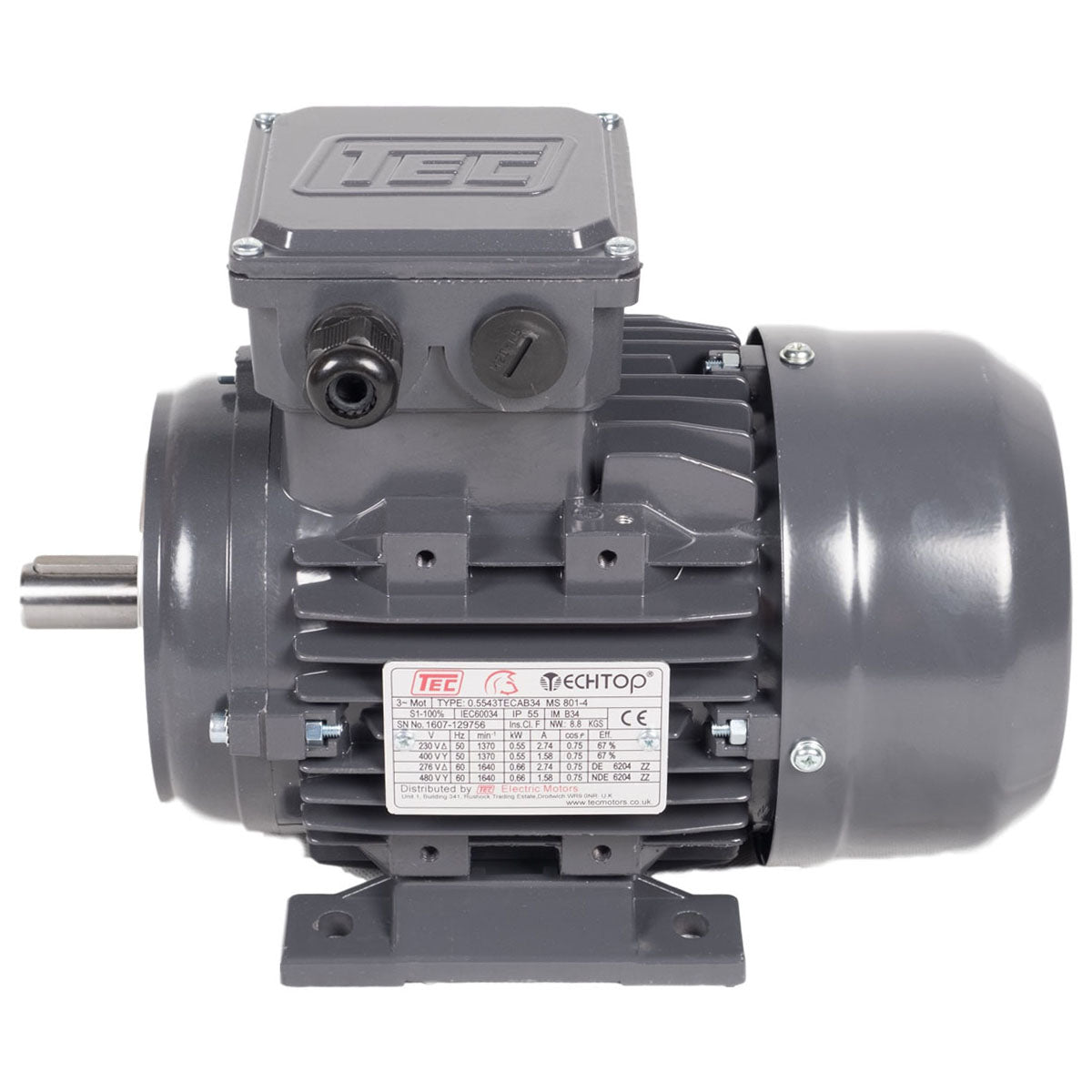

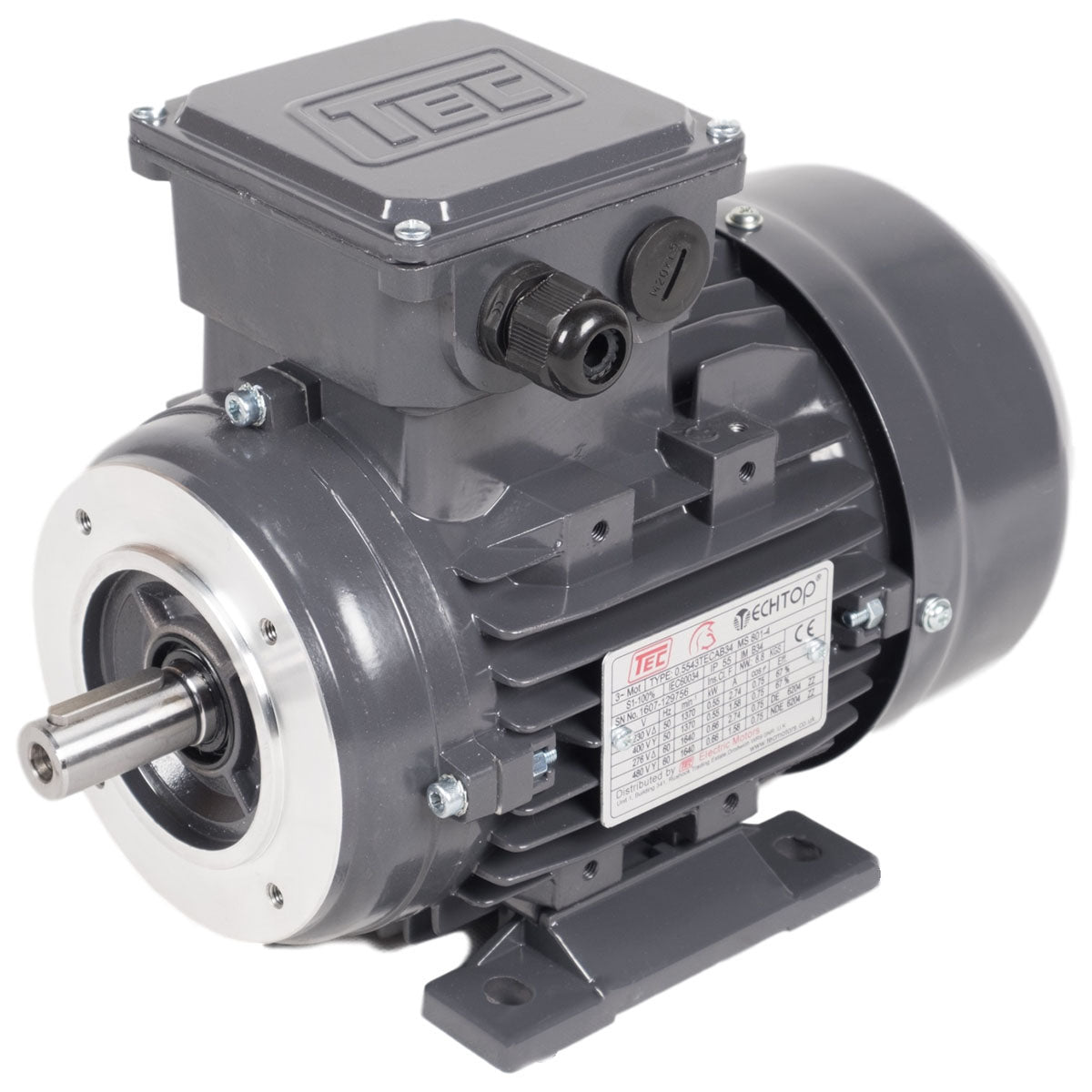

  • All mounting available, foot* (B3), flange (B5) face (B14)
  • Inverter rated insulation
  • Totally Enclosed Fan Cooled - TEFC (IP55) water tight and dust tight enclosure
  • Squirrel cage rotor / Aluminium die cast
  • Class F winding insulation all frames
  • Temperature rise: Class B (110 degree)
  • Sheet Metal Fan Cover
  • Aluminium terminal box complete with metric cable gland entries and gasket
  • Continuous Duty S1
  • Protective thermistors type PTC (1 per phase)

The TECA 3 phase motors are constructed from aluminium and suit a wide range of requirements. These rugged units can be used for a variety of tasks ranging from air conditioners to conveyor belts. By using this three phase electric motor for your plant equipment you can increase efficiency and save space as these motors are more compact and run more smoothly than their single phase counterparts while providing nearly twice the power.

*Please note all our TEC Motors are supplied with detachable feet
