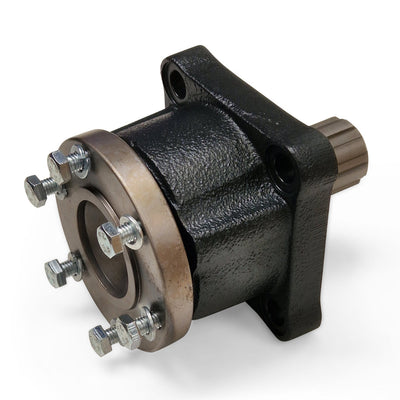

Power Take Off Spares

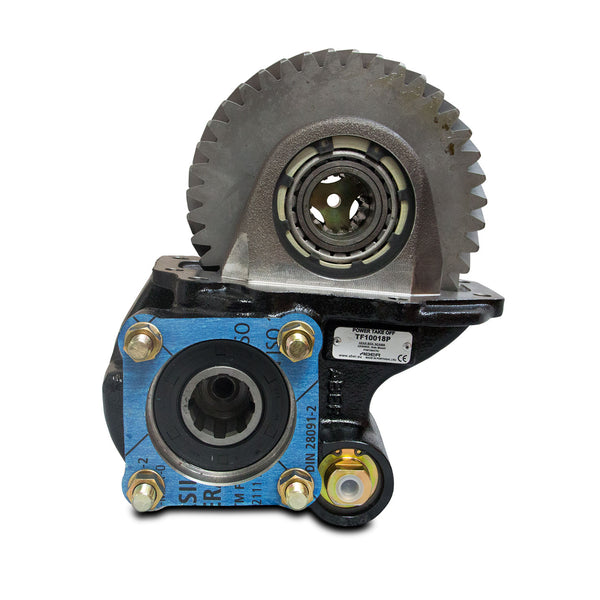

PTO SCANIA GRS 905 1200NM SHAFT 620 mm; W/SENSOR
Key Features

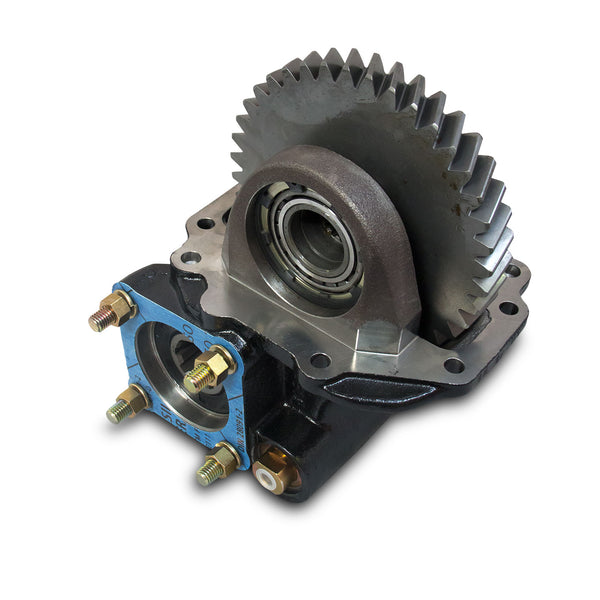

PTO SCANIA GR875; GR905; GRS895; GRS905; W/SENSOR

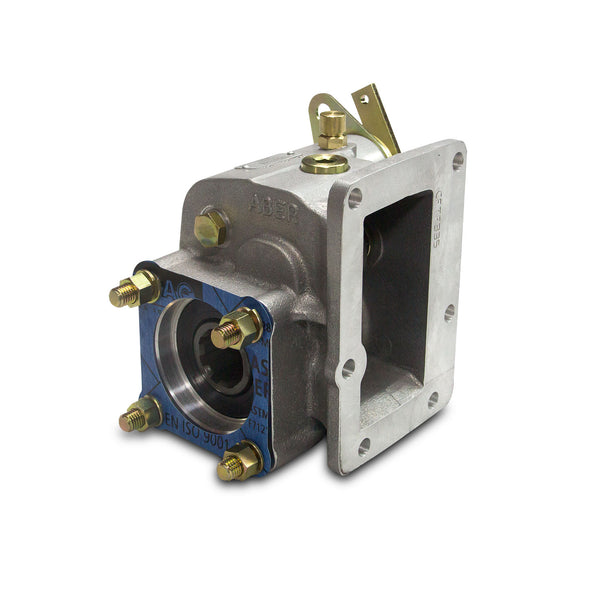

PTO MITSUBISHI CANTER MO27S5,MECANICAL
PTO; IVECO; 2840.6 - MECHANICAL
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
PTO ZF S6-36 C.P. (RATIO 1:1,32)
PTO ZF 6S-300 MECHANIC CONTROL
PTO ZF 6S-380 MECHANIC CONTROL
PTO ZF 5S-50 REINFORCED (RATIO 1:1,73)
PTO ZF S5-42/5,72 C.P.; With Sensor
PTO ZF S5-42/4,65 C.P.
PTO ZF 5S-50 REINFORCED (RATIO 1:1,58)
PTO ZF 5S-50 REINFORCED (RATIO 1:1,33)
PTO ZF S6-90 C.P.(1:1); NO SENSOR
PTO MERCEDES G-60;G-85,G-90 P.C. (RATIO 1:1,32); W/SENSOR (Z)
PTO MERCEDES G5-6/6,29-0,78 P.C. (RATIO 1:1,32); W/ SENSOR (Z)
ALLISON PTO; CONSTANT DRIVE; FLANGE EN-ISSO; 1:0,74; LEFT ASSEMBLY
ALLISON PTO; CONSTANT DRIVE; FLANGE EN-ISSO; 1:0,74; RIGHT ASSEMBLY
Allison PTO; CLUTCH; ISO 4 BOLT; HEAVY DUTY; 24V; 1:0,68
Allison PTO; CLUTCH; ISO 4 BOLT; HEAVY DUTY; 24V; 1:0,73
Allison PTO; CLUTCH; ISO 4 BOLT; HEAVY DUTY; 24V; 1:0,83
Allison PTO; CLUTCH; ISO 4 BOLT; HEAVY DUTY; 24V; 1:1
PTO ISUZU MYY-5T MECHANIC CONTROL
ABER ISUZU PTO; MYY - 5T ; MYY - 6S ; MYY-6P ; MOH25 ; MOH30 ; MOY-9K; 1:1; Vacuum
PTO ISUZU MZZ-6F; MECHANIC CONTROL
ABER Power Take Offs from Approved Hydraulics.
Power take-off for trucks connects a truck’s power supply to an external device to help run it, commonly hydraulic pumps. Here at Approved Hydraulics, you’ll discover a superb range of truck-mounted PTOs that enjoy a variety of applications. Our PTO equipment is manufactured by ABER, using the highest-quality expertise and materials to bring you premium performance and reliability.
A truck-mounted PTO uses the truck engine to transfer power to attached equipment or separate machines. By harnessing the horsepower and torque of commercial trucks, you’re able to direct the rotary power of an engine into hydraulic power via the power take-off equipment.
For the system to be effective, you must invest in PTO equipment compatible with the truck’s transmission. Thankfully, here at Approved Hydraulics, as well as universal fittings, you’ll find a wide range of power take-off equipment for a variety of manufacturers, including Iveco, Mercedes and Scania.
With our stock from leading hydraulics manufacturer ABER, you can be safe in the knowledge that you’re investing in premium quality components comprised of high-quality materials that will deliver high-performance and reliability. For more products, browse our full range of PTO equipment.
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
