Key Features

• Machine class: 8–12 t excavators
• Tilt angle: ±45 deg ; 90 deg total
• Output torque: 9000 N.m
• Drive type: sealed rotary actuator
• Hydraulics: suitable for two line control ; check flow ; pressure per datasheet
• Use: grading ; battering ; trenching without repositioning machine

Key Features

• Tilt range: 134 degree total tilt arc
• Rated torque: 15000 N m output torque class
• Carrier class: suits 12 ; 16 ton excavators
• Use case: tilting of buckets and tools for grading ; trenching and access works
• Integration: compact rotary actuator package ready to mount to appropriate hitch
• Notes: select correct mount and hydraulics to suit carrier aux circuit

Key Features

• Type: 3 way priority pressure compensated flow control cartridge
• Operation: maintains constant controlled flow regardless of load
• Bypass: reverse flow bypass via internal check path
• Porting: LFR 10 3A cavity family
• Use: priority feed for steering or auxiliary functions

Key Features

• Type: hydraulic return filter element
• Rating: 25 micron filtration class
• Media: cellulose or synthetic media options
• Use: protect system from contamination on return line
• Compatibility: fits designated filter head family

Key Features

• Spool function: motor spool geometry with A ; B open to tank in neutral for freewheeling
• Valve family: fits 50 LPM AK electric or lever operated sectional valve body
• Purpose: minimise cavitation risk and allow smooth motor rundown at neutral
• Use case: hydraulic motors on conveyors ; augers ; winches
• Service note: check section seals and end caps during spool replacement
• Selection: confirm 50L AK body type before ordering

Key Features

• Functions: 8 on ; off pushbuttons
• Supply: 12 ; 24 VDC receiver
• Harness: 2.4 m prewired receiver connection
• Use case: multiple discrete outputs for valve coils or contactor logic
• Applications: hydraulic attachment control where simple binary commands are required
• Note: choose e stop variant where a safety interlock is mandated

Key Features

• Functions: 6 on ; off channels for multi function control
• Supply: 12 ; 24 VDC receiver input
• Harness: prewired 2.4 m cable simplifies installation
• Use case: control of up to three double acting valve sections
• Applications: service bodies ; cranes ; small plant
• Operating concept: non proportional on ; off commands for clear operator feedback

Key Features

• Functions: 4 on ; off pushbuttons
• Supply: 12 ; 24 VDC receiver
• Harness: 2.4 m prewired receiver lead
• Use case: simple on ; off control of one or two double acting functions
• Form factor: handheld transmitter with compact receiver
• Applications: tippers ; winches ; auxiliary hydraulic functions

Key Features

• Functions: 8 on ; off pushbuttons with dedicated emergency stop
• Supply: 12 ; 24 VDC receiver input
• Harness: prewired receiver cable 2.4 m for quick install
• Use case: discrete control of solenoid valves ; contactors or relays on mobile plant
• Integration: suited to retrofit of simple hydraulic controls with radio link
• Safety: e stop provides immediate stop signal to system interlock

Key Features

• Functions: 12 on ; off pushbuttons plus dedicated emergency stop
• Supply: 12 ; 24 VDC receiver input prewired with 2.4 m cable
• Use case: retrofit on ; off control of hydraulic valves or contactor logic
• Form factor: handheld transmitter with paired receiver for mobile machinery
• Safety: E stop provides immediate shutdown signal to system interlock
• Frequency: industrial license free bands with robust interference mitigation

Key Features

• Gear ratio: 3 ; 1 step up
• Power rating: 10 kW maximum
• Input/output: 540 rpm PTO nominal to ~1620 rpm output
• Shafts: male 1 3/8 inch 6T PTO input
• Pump interface: Group 2 pump fitted ; suited to lower flow auxiliary circuits
• Housing: aluminium body ; compact size for light implements

Key Features

• Gear ratio: 3 ; 1 step up for pump speed
• Power rating: 20 kW maximum
• Input/output: 540 rpm PTO nominal to ~1620 rpm output ; observe 3000 rpm max output guidance
• Shafts: male PTO 1 3/8 inch 6 spline interface
• Pump interface: supplied with Group 3 gear pump for higher flow demand
• Construction: lightweight aluminium gearbox for agricultural PTO duty

Key Features

• Gear ratio: 3 ; 1 speed increase from PTO to pump
• Power rating: 20 kW max continuous service
• Input/output: PTO 540 rpm nominal ; gearbox output up to 1620 rpm with limit below 3000 rpm
• Shafts: male PTO input 1 3/8 inch 6T ; mates to agricultural tractors
• Pump interface: supplied with Group 2 gear pump pre fitted
• Housing: aluminium body for reduced weight in mobile applications

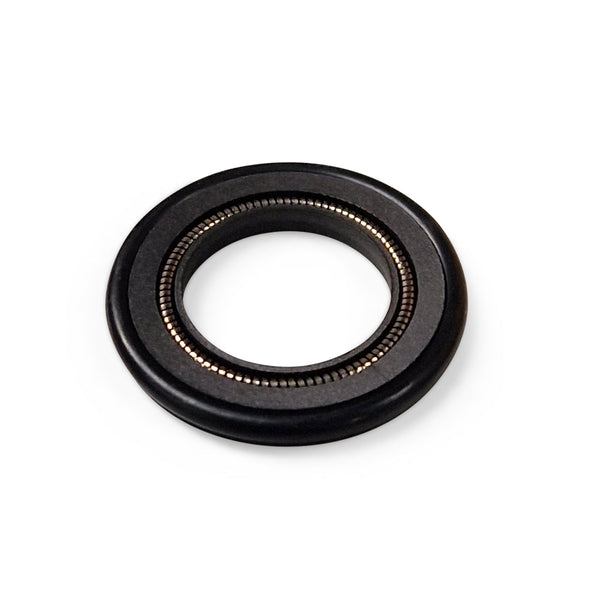

Key Features

• Seal type: spring-energized ptfe variseal
• Motor sizes: 8 cc ; 11 cc ; 16 cc gear motors
• Typical shaft size: 18 mm id for group 2 motors
• Mates with: 18x30 back-up washer
• Use: low-friction sealing for continuous-duty flail motors

Key Features

• Type: complete double acting hydraulic cylinder assembly
• Compatibility: factory replacement for listed TG or GRX models
• Seals: high pressure rod and piston seals with wiper installed
• Ports: BSPP per OEM specification
• Testing: pressure tested for leakage and function
• Use: restores lifting and clamping performance

Key Features

• Type: complete double acting hydraulic cylinder assembly
• Compatibility: factory replacement for listed TG or GRX models
• Seals: high pressure rod and piston seals with wiper installed
• Ports: BSPP per OEM specification
• Testing: pressure tested for leakage and function
• Use: restores lifting and clamping performance

Key Features

• Compatibility: tg 55 s ; sr4 ; sr5 ; sm ; 80 grabs
• Assembly: factory complete cylinder
• Sealing: double piston rod seals
• Use: oem replacement per parts book item 17
• Application: hydraulic attachment component

Key Features

• Type: complete double acting hydraulic cylinder assembly
• Compatibility: factory replacement for listed TG or GRX models
• Seals: high pressure rod and piston seals with wiper installed
• Ports: BSPP per OEM specification
• Testing: pressure tested for leakage and function
• Use: restores lifting and clamping performance

Key Features

• Type: complete double acting hydraulic cylinder assembly
• Compatibility: factory replacement for listed TG or GRX models
• Seals: high pressure rod and piston seals with wiper installed
• Ports: BSPP per OEM specification
• Testing: pressure tested for leakage and function
• Use: restores lifting and clamping performance

Key Features

• Compatibility: DAP8040 pattern cylinder used on CEL cylinder models only
• Bore x rod class: 80 x 40 mm nominal geometry per 8040 designation
• Intended use: complete reseal to address external leaks ; bypass and drift
• Typical kit contents: piston seal ; rod seal ; wiper ; and static seals commonly used
• Applications: general purpose rams on attachments and agricultural machinery
• Fitment note: verify CEL cylinder label before ordering to ensure correct kit series

Key Features

• Compatibility: Hydra Part MR high torque orbital motors ; Zi pattern
• Intended use: seal replacement for motor front end and housing to stop oil leakage
• Typical kit contents: shaft seal ; housing o rings ; drain and port seals typical for MR motors
• Applications: industrial and mobile hydraulic drives across compact machinery
• Service note: check case drain port condition ; replace washers if distorted
• Selection note: use motor nameplate to match the correct MR kit variant

Key Features

• Compatibility: Hydra Part MT orbital motors ; Zi pattern
• Intended use: renew shaft ; cover and case seals to correct oil leaks and pressure loss
• Typical kit contents: output shaft seal ; body o rings ; port and drain seals used on MT motors
• Applications: low speed high torque drives on conveyors ; wheel motors ; winches
• Service note: inspect shaft for wear ; replace if grooved to protect new seal
• Fitment check: confirm MT model code and mounting to select correct kit

Key Features

• Compatibility: Hydra Part MSY series disc valve orbital motors ; Zi pattern
• Motor notes: MSY motors use disc valve distribution offering higher torque capability in family
• Intended use: seal replacement for output shaft ; cover and porting to resolve leaks
• Typical kit contents: shaft seal ; housing o rings ; drain port seals commonly replaced on service
• Applications: industrial and mobile drives requiring rugged low speed high torque performance
• Selection note: check MSY displacement code and mounting to select correct kit

Key Features

• Compatibility: Hydra Part MV high torque orbital motors ; Zi pattern
• Intended use: renew housing ; shaft and cover seals to prevent oil leakage and pressure loss
• Typical kit contents: shaft seal ; case drain and port seals ; body o rings used on MV motors
• Applications: drive motors on conveyors ; winches ; swing drives and attachments
• Service note: inspect shaft surface finish ; replace or sleeve if worn to protect new seal
• Fitment check: confirm MV motor code on nameplate to match kit version
