Cylinder Seal kit 40-80/90 series 205/305/405/505/593/612/632/642/651
Key Features
Cylinder Seal kit 50-90/100 series 206/306/406/506
Cylinder Seal kit 70-130/150 standard
Cylinder Seal kit 50-100/115 series 207/307/407/507
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
Cylinder Seal kit 45-80/90 standard
Complete Cylinder for Intermercato TG12/12 S/12 SR5/12 UG 7 Grab
Complete Cylinder for Intermercato TG 16-50/S/SR4/SR5/ST Grab
Complete Cylinder for Intermercato TG 22/22 S/22 ST/22-50 Grab
Complete Cylinder for Intermercato TG22 Pro Grab
Complete Cylinder for Intermercato TG 28/ S/SR4/SR5/ST/UGS Grab
Complete Cylinder for Intermercato TG 25 SR 3-4 Grab
Complete Cylinder for Intermercato TG 25-25S Grab
50L Control Valve MID Inlet section with relief (E12)
80L - 100L-150L - 240L Control Valve Fixed Port Relief/Anti Cav. 220 bar Type RPHT U220

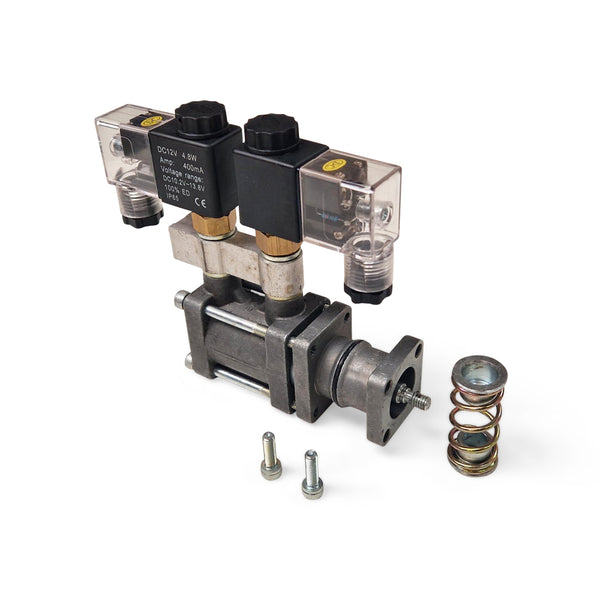

45L - 50L 24V On/Off Electro Pneumatic Kit 8EP4 With With Manifold Block (30034555)
45L - 50L 12V On/Off Electro Pneumatic Kit 8EP4 With With Manifold Block (30034555)
100L Control Valve Motor Spool (Type 2)
100L Control valve Inlet Section 3/4 Left Inlet (AC)
Microswitch (Normally Open x M14 x 1.5 thread)
24VDC - 37W- ED 100% Solenoid Only For 45L & 50L Unloader Valve
80L Control Valve Inlet Section AC -L/H (Old No 30085749)
12VDC - 36W- ED 100% Solenoid Only For 45L & 50L Unloader Valve
80L Control Valve Tank Section (Type TC) (Old ref 30085660)
80L-100L-150L Control Valve Unloader Valve (ELP) Without Coil (See Coils 20032268 12V or 20032269 for 24V)
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
