Key Features

• Type: hydraulic pilot control joystick
• Actuation: progressive ; low operating force
• Handles: multiple grip variants ; proportional ; switching
• Use: operate directional valves ; pumps ; motors
• Notes: suitable for mobile hydraulic pilot circuits

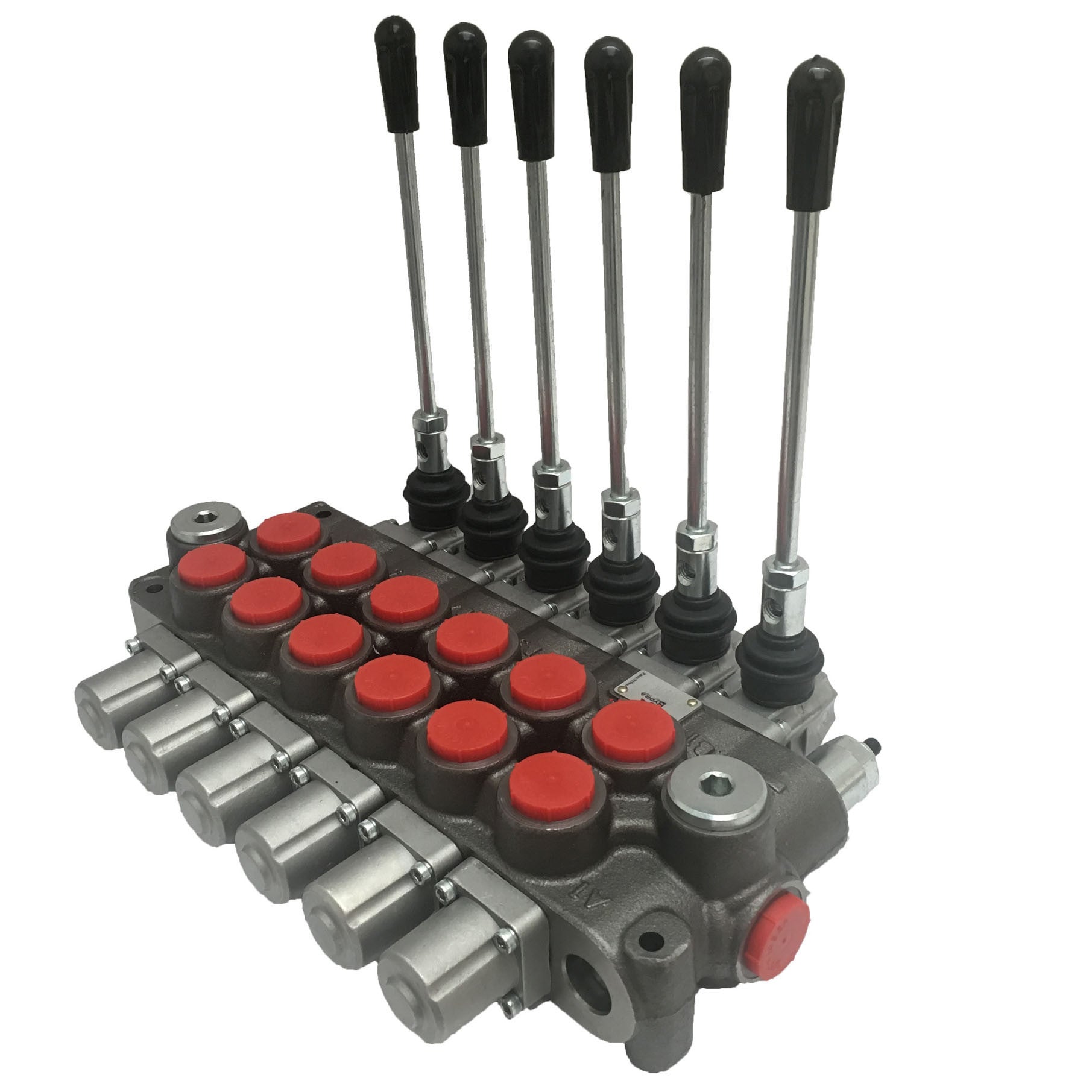

Key Features

• Series: 50L GS sectional control valve
• Applications: mobile hydraulics ; loaders ; cranes
• Compatibility: Hydra Part GS family ; alternative to Walvoil SD series in same size
• Fluid: mineral oil ; 15–75 cSt operating range
• Max pressure class: up to 315 bar per series

Key Features

• Compatibility: WD7, WD9, WD12, WD17, WD21
• Included: Worm and all associated components

Key Features

• Functions: 8 on ; off pushbuttons
• Supply: 12 ; 24 VDC receiver
• Harness: 2.4 m prewired receiver connection
• Use case: multiple discrete outputs for valve coils or contactor logic
• Applications: hydraulic attachment control where simple binary commands are required
• Note: choose e stop variant where a safety interlock is mandated

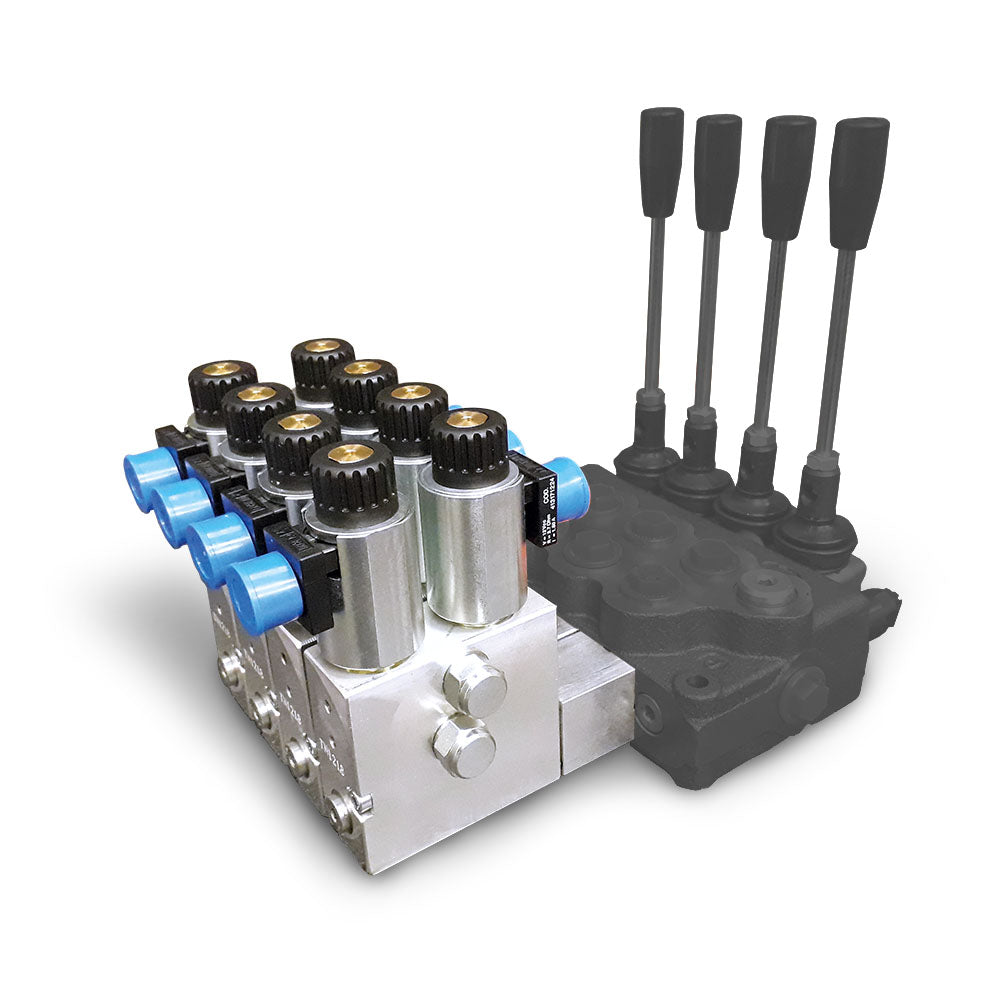

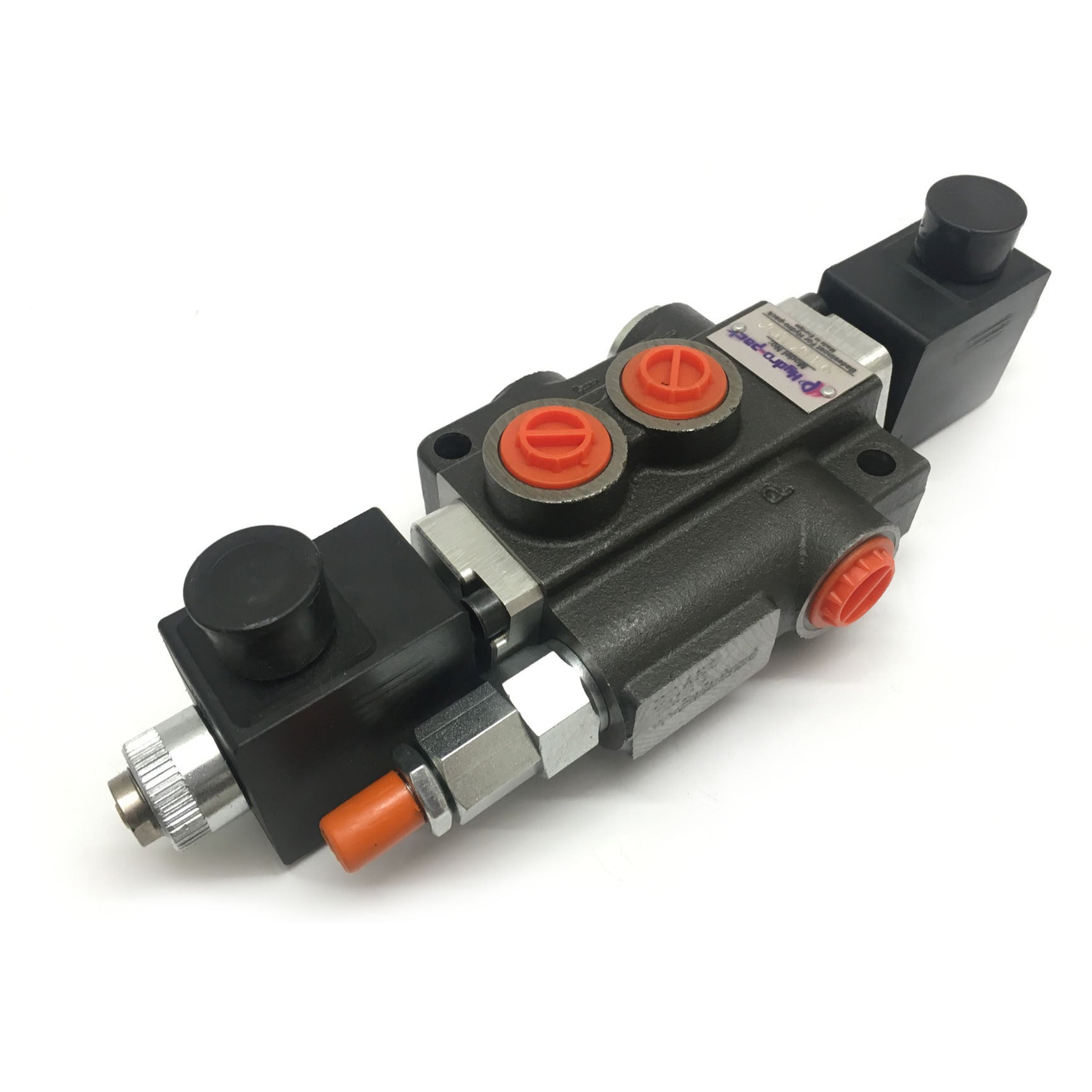

Key Features

• Valve type: monoblock ; solenoid + lever control
• Nominal flow: 50 lpm
• Coils: 12 vdc ; 24 vdc
• Sections: up to 6 sections in single housing
• Spool: double acting standard ; other spools available
• Options: hp carry over ; valve kits ; connectors
• Mounting: in line ; direct to system

Key Features

• Series: mv high torque
• Design: gerotor ; geroler low speed high torque motor
• Mounting: industry standard flanges ; shaft options
• Use: conveyors ; winches ; agricultural ; forestry ; cranes
• Ports: side ports ; case drain where required
• Features: tapered roller bearings for high radial ; axial loads
• Displacements: 315 cc to 800 cc

Key Features

• Gear ratio: 3 ; 1 step up for pump speed
• Power rating: 20 kW maximum
• Input/output: 540 rpm PTO nominal to ~1620 rpm output ; observe 3000 rpm max output guidance
• Shafts: male PTO 1 3/8 inch 6 spline interface
• Pump interface: supplied with Group 3 gear pump for higher flow demand
• Construction: lightweight aluminium gearbox for agricultural PTO duty

Key Features

• Functions: 6 on ; off channels for multi function control
• Supply: 12 ; 24 VDC receiver input
• Harness: prewired 2.4 m cable simplifies installation
• Use case: control of up to three double acting valve sections
• Applications: service bodies ; cranes ; small plant
• Operating concept: non proportional on ; off commands for clear operator feedback

Key Features

• Design: geroler ; shaft distribution flow
• Mounting: 4 bolt flange
• Characteristics: smooth operation ; high efficiency ; long life
• Displacements: multiple options per series
• Applications: winches ; conveyors ; augers ; slew drives

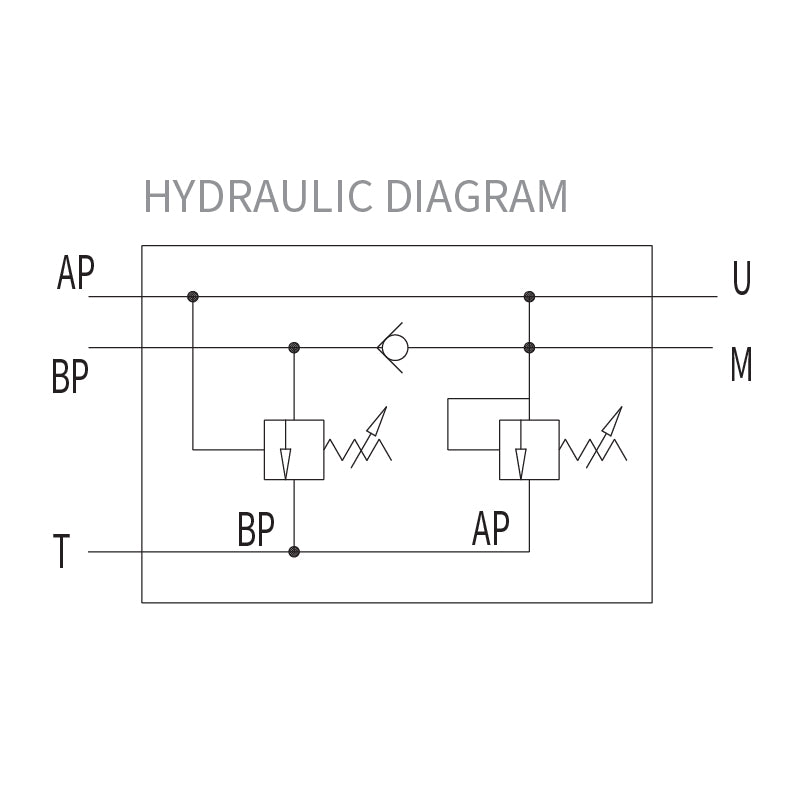

Key Features

• Mounting: flanged directly to MV ; OMV ; CPMV motor port pattern
• Port size: 1 in ports on MV variant
• Setting ranges: 30 to 100 bar ; 50 to 210 bar ; 20 to 250 bar options
• Max flow: up to 120 l.min
• Function: dual cross port relief for overpressure ; shock protection
• Construction: zinc plated steel body ; hardened internal components
• Seals: NBR Buna N standard
• Options: anti cavitation check valves available in related families

Key Features

• Bore x rod x stroke: 70 x 50 x 320 mm
• Integrated valve: Pilot operated check valve for load holding
• Action: Double acting
• Working pressure: Up to 250 bar
• Use: Stabiliser legs ; outriggers ; props
• Temperature range: -25 °C to +80 °C

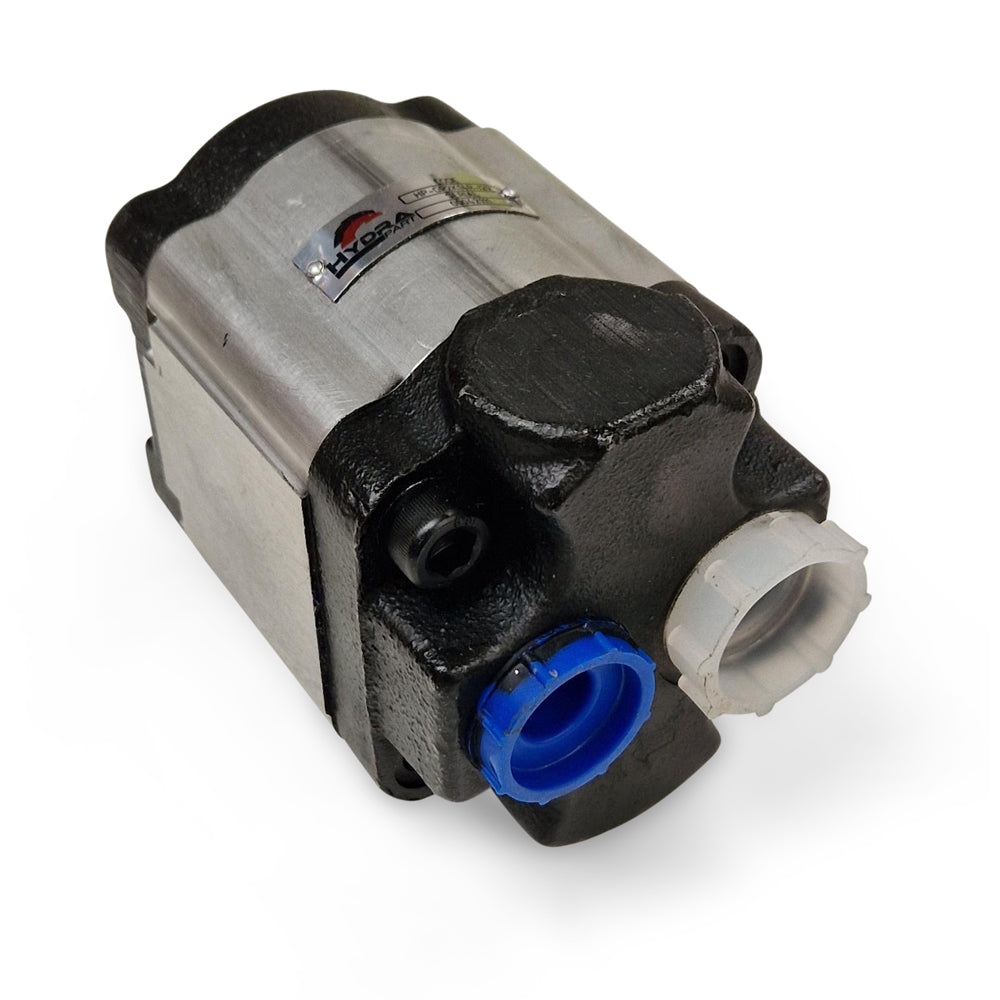

Key Features

• Displacement: 17 cc/rev
• Euro flange with: 1/8 taper shaft
• Max working pressure: 260 bar
• Specification: BSP threaded ports
• Displacement: 3.3 cc/rev
• Max working pressure: 280 bar
• Use case: PTO driven hydraulic gear pump for mobile hydraulics; tipping; cranes; auxiliaries

Key Features

• Gear ratio: 3 ; 1 speed increase
• Power rating: 20 kW
• Input coupling: female quick coupling PTO 1 3/8 inch 6 spline standard
• Pump interface: supplied with Group 3 gear pump for higher displacement
• Recommended limits: keep gearbox output below 3000 rpm per common PTO gearbox guidance
• Construction: aluminium gearbox for low mass on 3 point link implements

Key Features

• Sections: tandem two stage ; 14 cc front ; 14 cc rear
• Rotation: clockwise
• Ports: typical suction 3/4" BSP ; pressure 1/2" BSP per stage
• Shaft: 1.8 taper ; 4 bolt EU flange
• Working pressures: P1 up to 200 bar ; P2 up to 160 bar
• Speed: up to ~3500 rpm
• Use: dual circuit mobile hydraulics ; steering ; implements

Key Features

• Type: 6 port ; 2 position solenoid diverter ; closed centre
• Port size: 3/4"
• Nominal flow: 120 lpm
• Coils: 12 vdc ; 24 vdc
• Function: select two circuits ; isolates when de-energised
• Typical applications: auxiliary circuit selection on mobile plant

Key Features

• Functions: 4 on ; off pushbuttons
• Supply: 12 ; 24 VDC receiver
• Harness: 2.4 m prewired receiver lead
• Use case: simple on ; off control of one or two double acting functions
• Form factor: handheld transmitter with compact receiver
• Applications: tippers ; winches ; auxiliary hydraulic functions

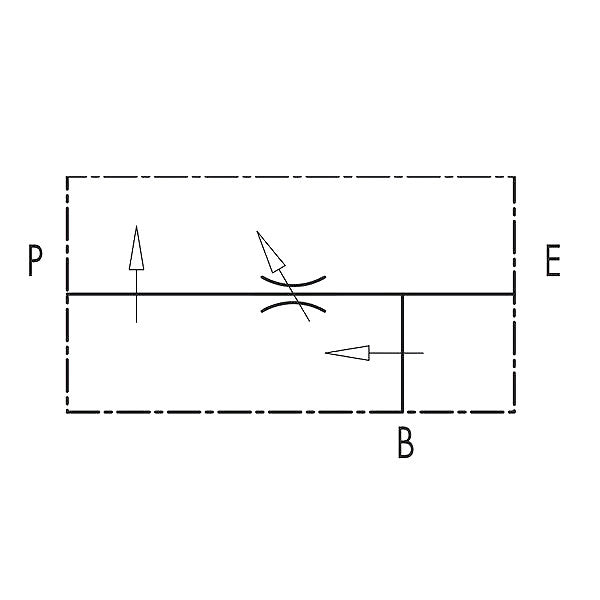

Key Features

• Max Inlet Flow: 200 Lpm
• Max Adjusted Flow: 170 Lpm
• Max Pressure: 350 Bar
• Function: Pressure compensated flow control; regulates actuator speed
• Notes: Specification information is limited in source listing; confirm dimensions and compatibility before purchase

Key Features

• Motor: 1.6 kw dc
• Valving: 2 x double acting cetop stack
• Starter: solenoid relay included
• Pressure preset: 160 bar
• Supply: 12 vdc ; 24 vdc
• Use: two circuit da operation

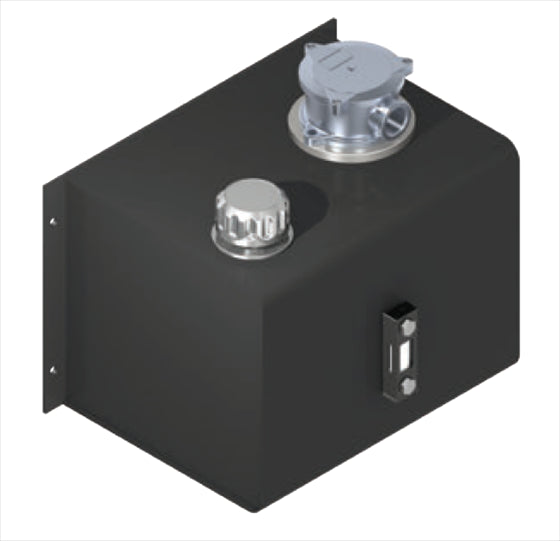

Key Features

• Capacity options: 80 l to 250 l
• Material: 2 mm steel ; black painted
• Includes: return filter 25 micron
• Return filter: 4 different return filter mounting variations.
• Mounting: side mounted reservoir
• Testing: pressure tested tank

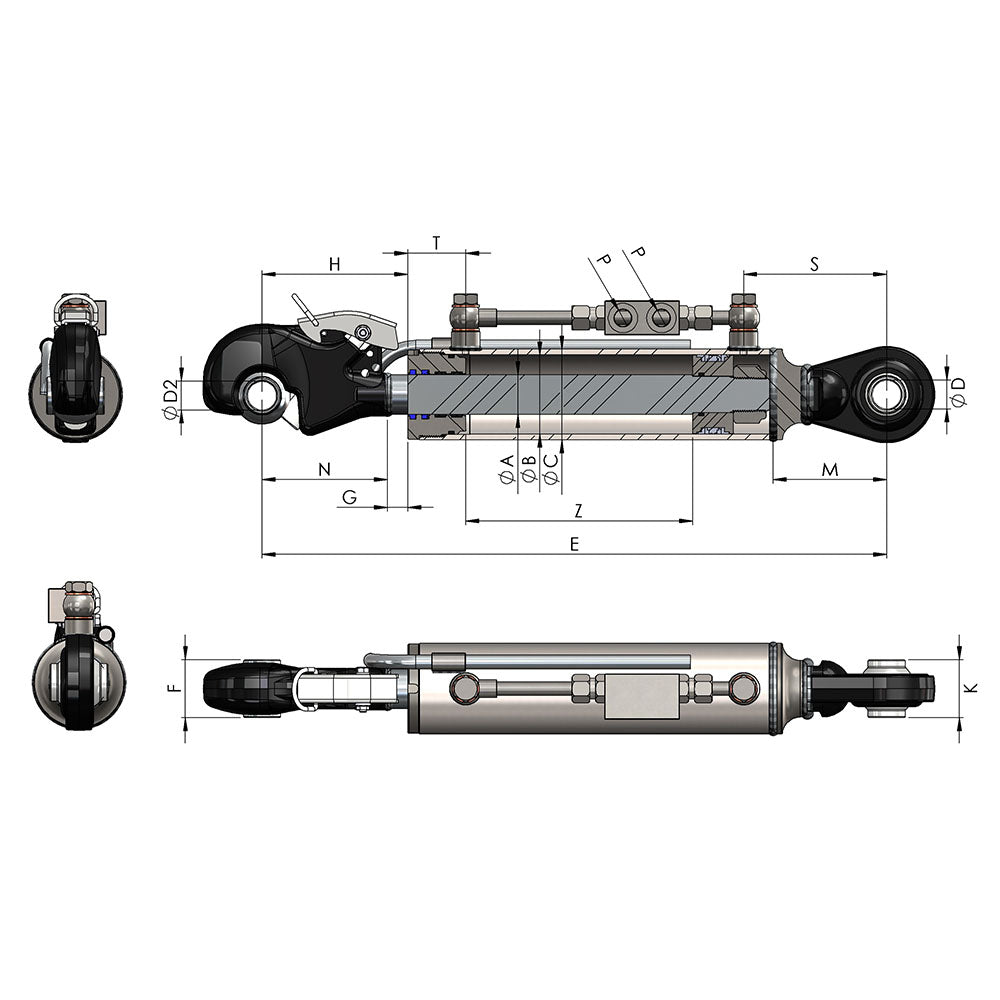

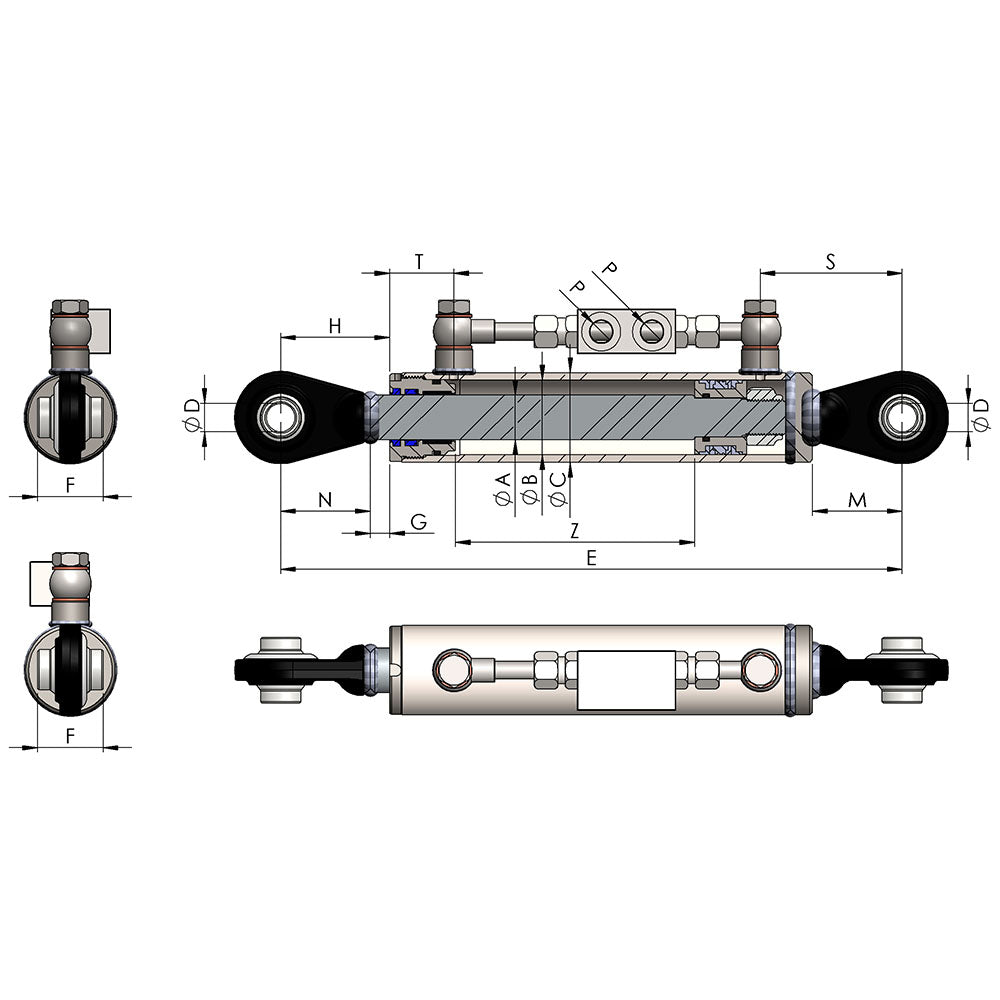

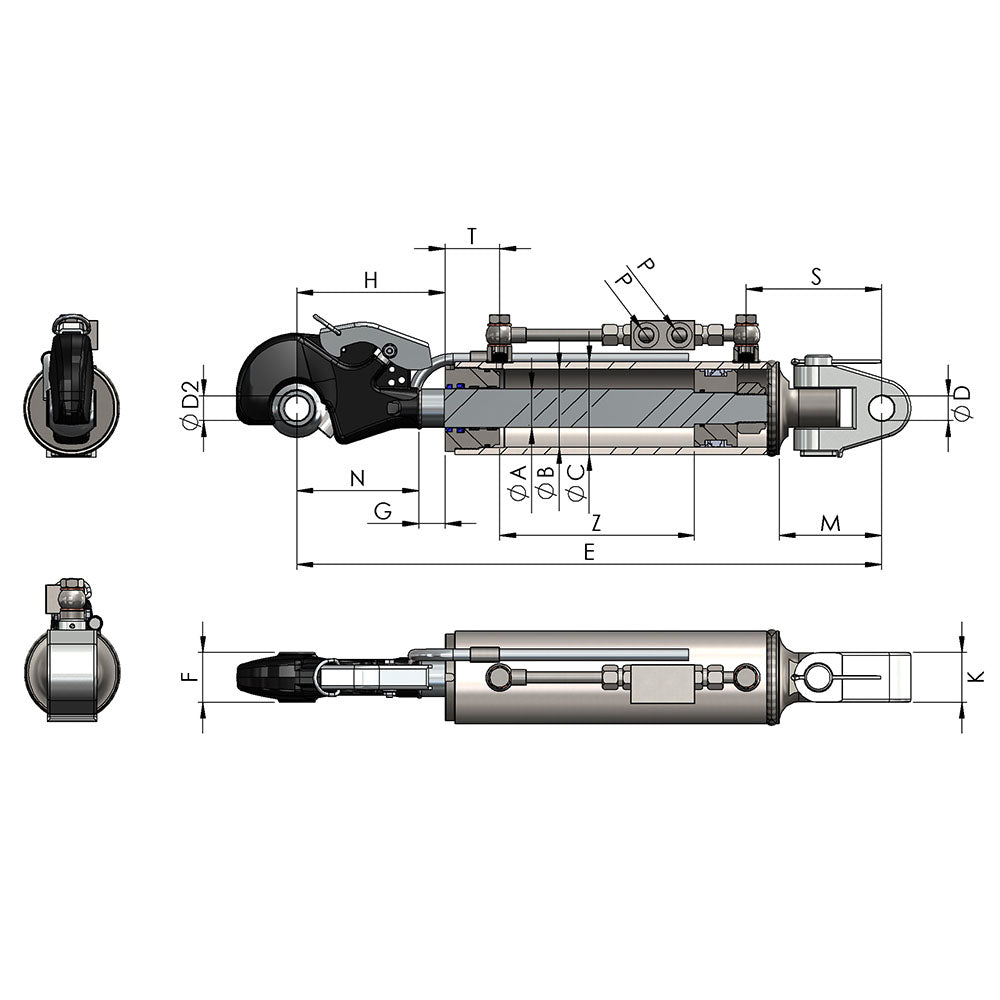

Key Features

• Use: Hydraulic top link for medium ; large tractors
• Bore ; rod range: 60/35 mm up to 100/45 mm options
• Rated pressure: 200 bar typical ; 250 bar max
• Check valve: Often supplied with double pilot operated check for position holding
• Supply: Complete with hoses
• Applications: Implements angle control ; hitch adjustment

Key Features

• Buttons: 2 on/off
• Supply: 12 ; 24 vdc
• Cable: 2.4 m prewired
• Use: remote control of basic hydraulic functions
• Application: hydraulic component

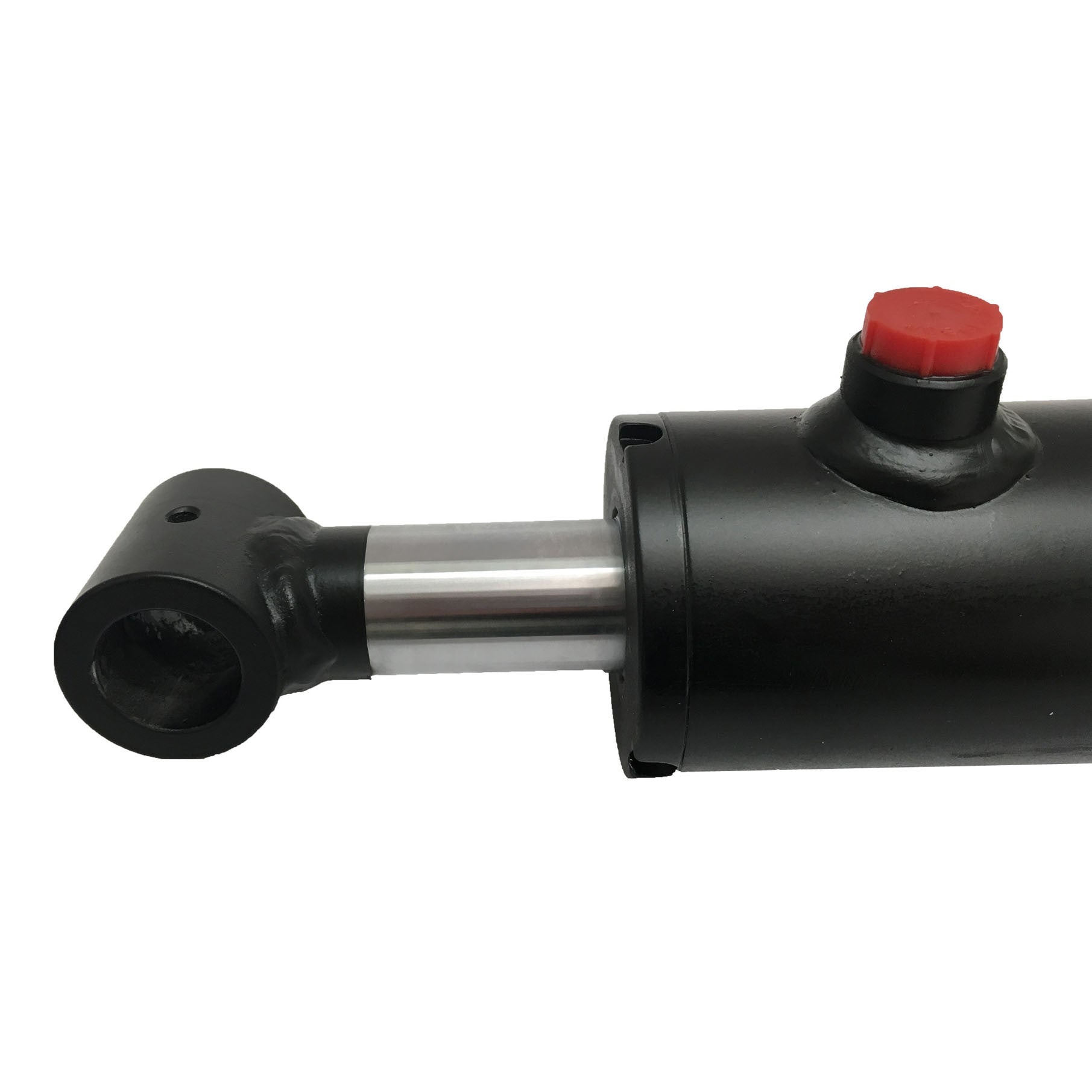

Key Features

• Bore x rod x stroke: 70 mm ; 50 mm ; 220 mm
• Actuation: double acting cylinder
• Mounting: 4 bolt side plate
• Rod end: foot plate
• Valve: pilot operated check valve included
• Application: stabiliser leg / outrigger

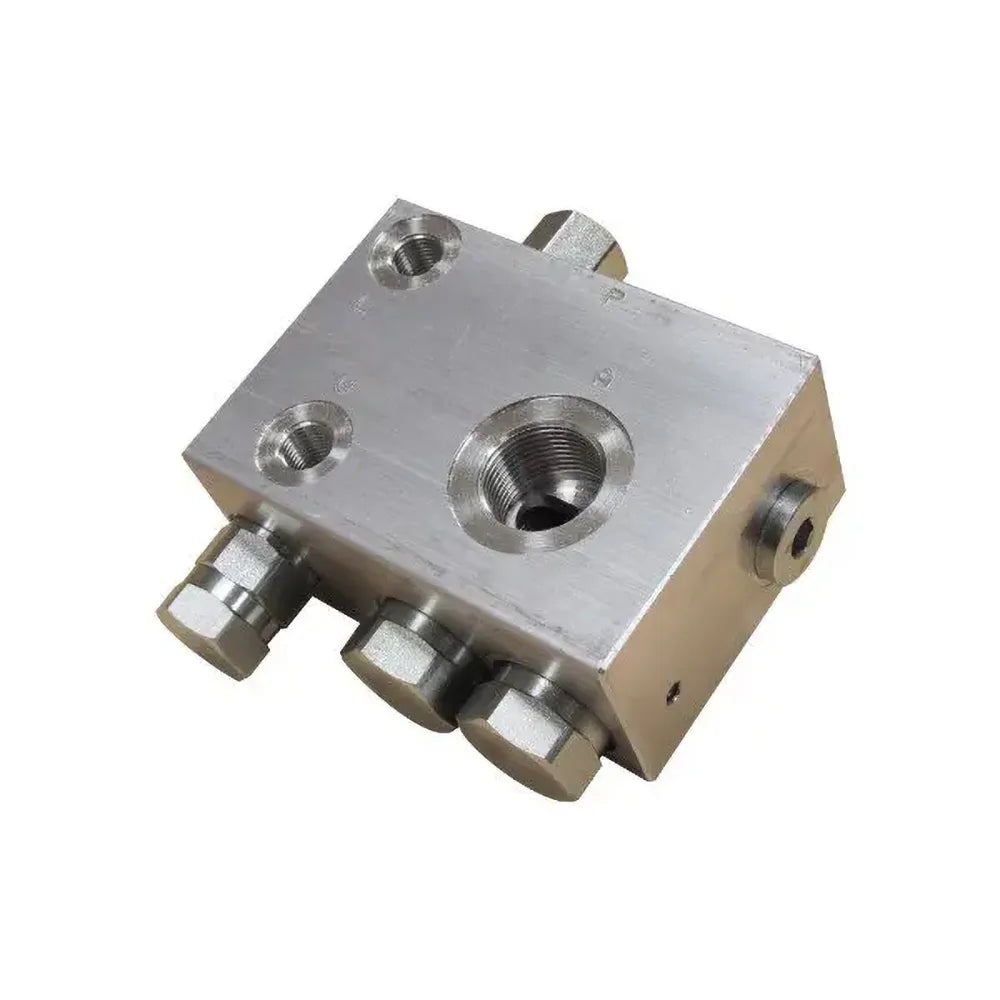

Key Features

• Function: pilot pressure reducing block to feed secondary circuit
• Flow capacity options: 70 l/min ; 140 l/min
• Use with: mod10 proportional actuator blocks ; direct to hcd/sd blocks
• Recommended filtration: 10 micron ; 3-4 l/min pilot flow ; ≤30 bar
• Connections: 1/2" outlets to distributor ; tank return port
• Typical applications: scanreco ; remote control ; crane valve pilots

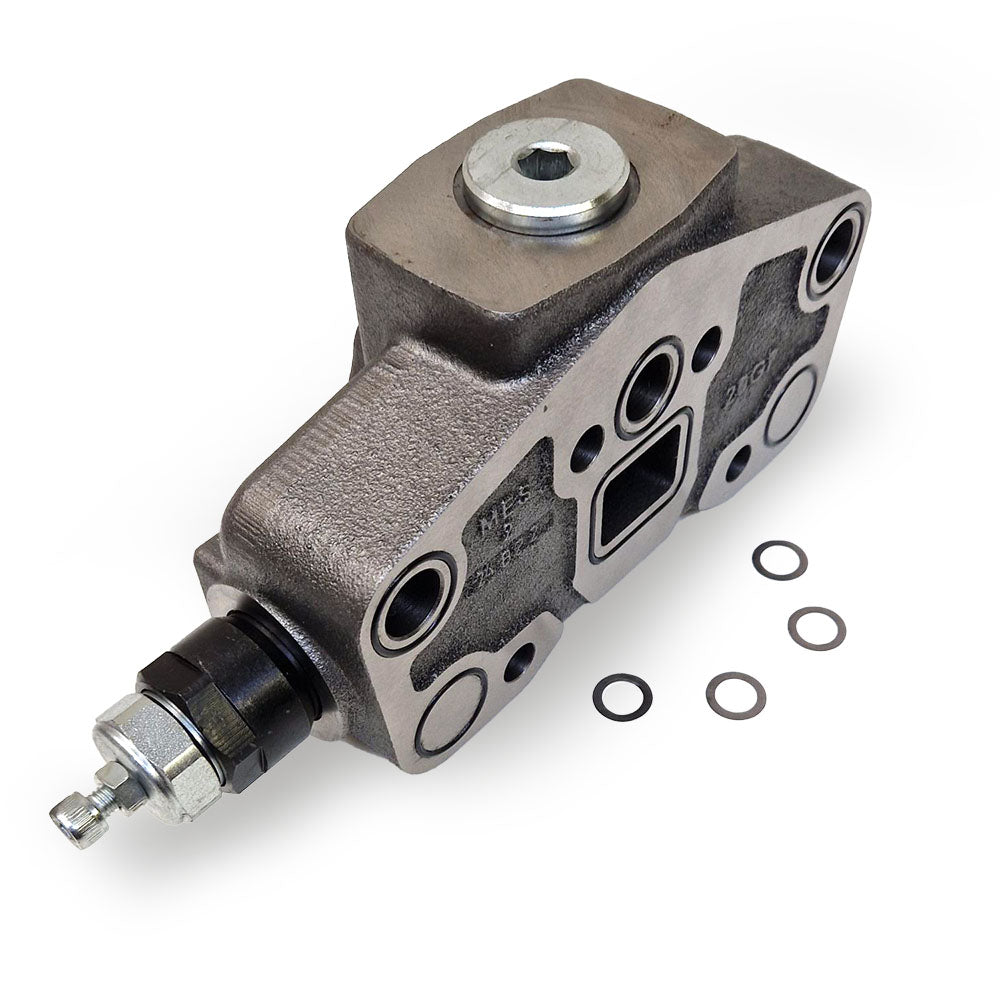

Key Features

• Valve series: 240 L/min sectional control valve
• Section: 1" left inlet with direct relief valve ; type AC
• Relief range: 60 to 315 bar adjustable max
• Use: Main supply inlet for 240L stacks
• Compatibility: Hydra Part 240L sectional family
