Top Link Double Pilot Check Valve 1/4"BSP - 25Lpm
Key Features
Solenoid Operated Check Valves - Pilot Operated - 70 L/min - 350bar - Checked in BOTH Directions
1/2 BSPP CETOP 5 Single Manifold - 80 L/Min - 20/210 Bar - Aluminium Body
BSPP Relief Valve upto 30 L/min - Steel Body
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
1" BSP Male x 1" BSP Male Adaptor
Double Acting Pilot Check Valves
1/2-3/8 BSPP Flow Divider 15-40 L/Min - 210 Bar
1/4 BSPP Double Acting Pilot Check Valve
1/4 BSP Male x 3/8 BSP Male Adaptor
1/2" BSP Male x 1" BSP Male Adaptor
1" Bonded seal
1/2" BSP Male x 3/4" BSP Male Adaptor
1/4" BSP Male to 1/2 BSP Female Pressure Guage Adaptor
3/8" BSP Male x 3/8" BSPT Tapered Adaptor
1/4" BSP Male x 1/4" BSP Female Swivel Adaptor
1/2 BSP Male x 5/8 BSP Male Adaptor
PTO UNI (3 Bolts) to PUMP EN/ISO (4 Bolts) adapter Complete With Studs And Gaskets
GASKET ZF (0,5MM) - 4 BOLT
ABER B3 Gear Pumps
24VDC Proportional Solenoid PWM For Scanreco Mod10 Actuator Valve 14mm Dia Hole x 39mm Long
Pilot Feed Adaptor And Blanking Cap Kit For Servo Module Tie Rods Scanreco
Hydraulic Power Pack With Starter 24V DC - 2.0kW - P & T Only - 160bar Preset

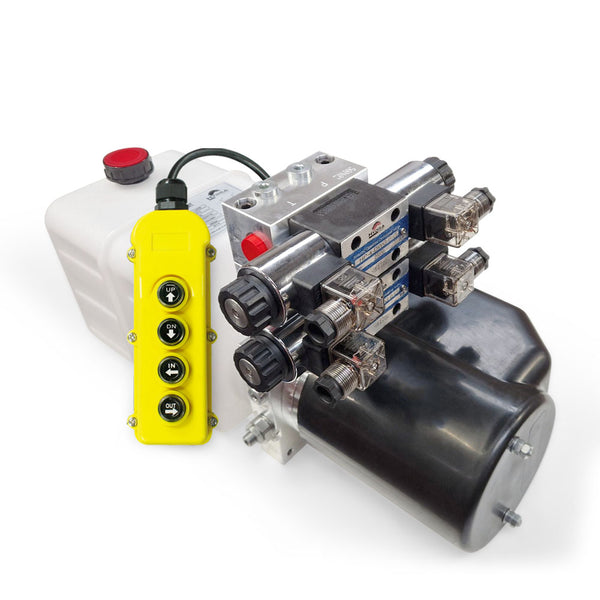

Double Acting Hydraulic Power Pack With Starter Solenoid - 1.6kW - 2x Double Acting CETOP - 160bar Preset
Solenoid for Mini Power Pack NC and NO Cartridges with Connector
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
