Radio Remote Controls
Worm Drives & Hydraulic Rotary Manifolds
BSPP One Way Flow Control Valves
Key Features
Scanreco Neck Strap
Scanreco Antenna Extension (2.5m)
24V Elec/Air Solenoid for 8EP3 -4 kit 4.8W IP65 100% ED - Coil 9mm Hole x 30mm long
Sales Director
I began my engineering career at Stockport College in around 2005, first completing a National Diploma in Electrical Engineering, followed by a Higher National Diploma in Mechanical Engineering. I then progressed to the University of Salford, where I earned a BEng (Hons) degree in Mechanical Engineering.
After graduating, I started my professional career with Approved Hydraulics. I initially gained a combination of hands-on workshop experience and telephone-based sales experience. In later years, I moved into a full-time sales role and led the new crane and excavator attachments department that the company had recently established.
Support for Hydra Part Cab Control Units
High Pressure 3 Port Manual Diverter Valve - Steel 1" 500Bar
HP50 1/2" Solenoid & Lever Control Valves 50LPM 12/24VDC
Poppet Check Valve 3/8" 50Lpm, 400 Bar Max Pressure
BSPP Female Poppet Check Valve - Cracking Pressure 0.5 Bar
Solenoid Operated Diverter Valve, 3 Ways, 3/4" BSP, Open Centre (Various Voltage)
Hydra Part Bent Axis DIN Piston Pumps (34-130cc)
3 Port Closed Centre Solenoid Diverter Valve 3/8" 80LPM 12/24vDC
Tipper & PTO Cab Control Unit

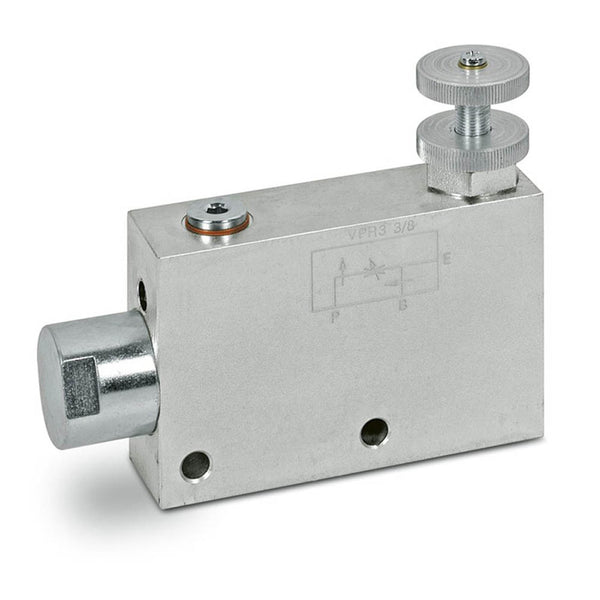

1/2" 3 Port Pressure Compensating Flow Control with bypass to line
Group 2 Hydraulic Gear Pumps with 1:8 Taper Shaft & Flanged Body

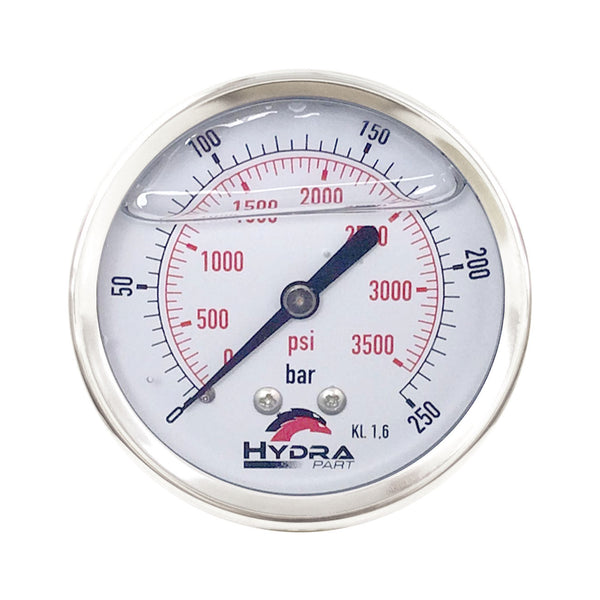

100mm Glycerine Hydraulic Pressure Gauge 0-3500 Psi (250 Bar) 1/2" Bottom Entry
CETOP 5 Modular Double Pilot Operated Check Valve on A & B (Z2DS-10)
3/8" BSP Male x 1/2" BSP Male Adaptor
Scanreco Decal Set (45676)
Mini Radio Remote Control 4 Button For 2 x Double Actiong Valves Operation 12-24VDC
M5 x 150 Cap head bolt
CETOP 3 Coil - 12VDC, (23mm Bore x 50mm long)
Scanreco Cigarette Plug Adaptor 12V/24V (Hydra Part)
6 Port Closed Centre Solenoid Diverter Valve 3/4" 120LPM 12vDC/24vDC
Discover quality shop all components from Approved Hydraulics, trusted by professionals across construction, transport, forestry, agriculture and industrial sectors. Built for demanding working environments, our range offers dependable performance, durable construction and trusted reliability. Browse related products including control valves, line mounted valves 1, hydraulic cylinders, hydraulic pumps to find the right solution for your hydraulic system. With fast UK delivery and expert technical support, Approved Hydraulics supplies hydraulic equipment you can rely on.
Calculating force, speed, pressure, power, and efficiency in hydraulic applications.
How do you calculate actuator speed?
Actuator speed is determined by flow rate and cross-sectional area: Speed = Flow rate ÷ Area Flow rate is the volume of fluid delivered (in L/min or GPM). Area is the cross-sectional area of the actuator piston: π × (diameter ÷ 2)².
How do you calculate cylinder force?
Cylinder force can be calculated using: Force = Pressure × Area Pressure is the system pressure (in psi or bar). Area is the cross-sectional area of the cylinder bore (in square inches or square centimeters). Area = π × (bore diameter ÷ 2)².
How do you calculate pressure drop across a valve?
Pressure drop can be calculated using the valve flow coefficient (Cv): Pressure Drop (ΔP) = (Flow Rate)² ÷ (Cv² × Fluid Density) Flow Rate is the fluid flow (in GPM or L/min). Cv is the valve flow coefficient. Fluid Density is the density of the hydraulic fluid.
How do you size an accumulator?
Accumulator sizing considers required flow, pressure, and pre-charge: Accumulator Volume = Flow Rate × Time ÷ Pressure This determines how much fluid must be stored to maintain system pressure.
How to convert psi to bar?
Use the conversion factor: 1 bar = 14.5 psi. To convert psi to bar, divide psi by 14.5. Example: 200 psi ÷ 14.5 = 13.79 bar.
What is pre-charge pressure in an accumulator?
Pre-charge pressure is the initial gas pressure in the accumulator before fluid enters. It helps maintain system pressure as the accumulator discharges. Typically set to 70–80% of system operating pressure.
What is specific gravity of hydraulic fluid?
Specific gravity is the ratio of hydraulic fluid density to water. A value of 1 means equal density. Less than 1 means the fluid floats; greater than 1 means it sinks.
What is torque in a hydraulic motor?
Torque is the rotational force produced based on system pressure and motor displacement: Torque = Pressure × Displacement ÷ 2π Pressure is the operating system pressure. Displacement is the volume displaced per revolution (in cubic inches or cubic centimeters).
What unit is hydraulic power measured in?
Hydraulic power is measured in horsepower (HP) or kilowatts (kW). Hydraulic horsepower can be calculated using: HP = (Pressure (psi) × Flow rate (GPM)) ÷ 1714.
What’s the relationship between pump speed and flow?
Flow rate is directly proportional to pump speed. If pump speed doubles, flow rate doubles (assuming constant displacement). This is important when adjusting flow or selecting a pump for varying speeds.
